FCC ID SWX-PS5AC
PRISM Station AC
by Ubiquiti Inc.
Grantee Code: SWX Product Code: PS5AC
Latest application date: 2017-10-12
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5160-5245 MHz | Class II permissive change or modification of presently authorized equipment | 2017-10-12 |
| 2412-2462 MHz | Original Equipment | 2017-03-29 |
| 5160-5245 MHz | Original Equipment | 2017-03-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual Part 1 | Users Manual | 2018-04-10 | PDF 3.4 MB |
| User Manual Part 2 | Users Manual | 2018-04-10 | PDF 2 MB |
| User Guide | Users Manual | 2017-09-25 | PDF 5.8 MB |
| User Guide 0.5A | Users Manual | 2017-09-25 | PDF 5.9 MB |
| User Manual | Users Manual | 2017-09-25 | PDF 5.8 MB |
| Internal Photos | Internal Photos | 2018-04-10 | PDF 5.2 MB |
| Internal Photos | Internal Photos | 2017-09-25 | PDF 5.2 MB |
| External Photos | External Photos | 2018-04-10 | PDF 1.3 MB |
| External Photo | External Photos | 2017-09-25 | PDF 1.3 MB |
| External Photos Metadata only | External Photos | 2017-09-25 | PDF 1.2 MB |

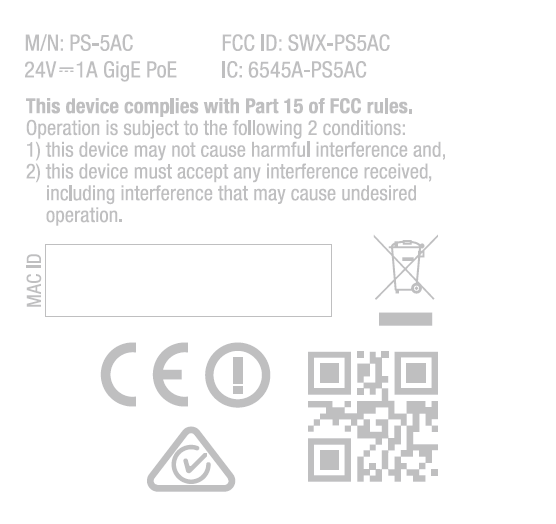

| Label Info | ID Label/Location Info | 2017-03-29 | PDF 122.3 KB |

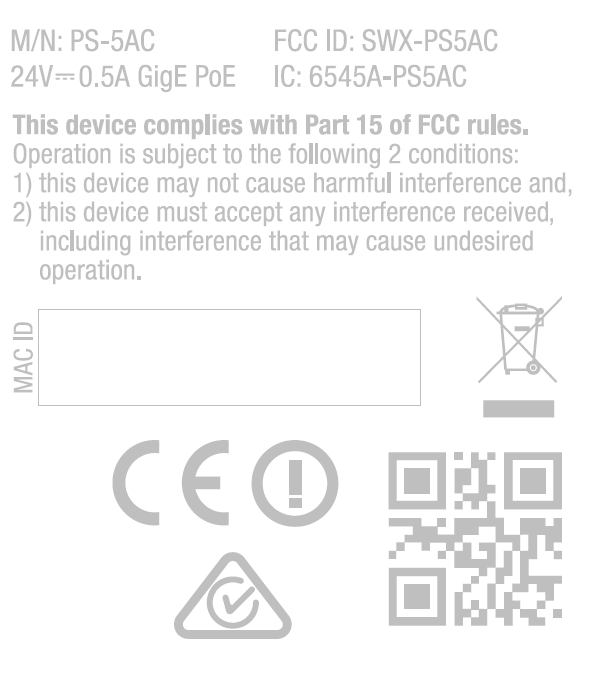

| Label Info 1A | ID Label/Location Info | 2017-03-29 | PDF 115 KB |
| Test Setup Photos DFS Slave | Test Setup Photos | 2018-04-10 | PDF 157.4 KB |
| Test Setup Photos NII 5G B2-B3 | Test Setup Photos | 2018-04-10 | PDF 481.5 KB |
| Test Setup Photos NII DFS Master | Test Setup Photos | 2018-04-10 | PDF 156.2 KB |
| Test Setup Photos DTS WLAN | Test Setup Photos | 2017-09-25 | PDF 496.2 KB |
| Test Setup Photos NII 5G B1 | Test Setup Photos | 2017-09-25 | PDF 481.3 KB |
| Test Setup Photos NII 5G B4 | Test Setup Photos | 2017-09-25 | PDF 485.8 KB |
| Test Report NII 5G B2-B3 Part 1 | Test Report | 2017-10-12 | PDF 4.5 MB |
| Test Report NII 5G B2-B3 Part 2 | Test Report | 2017-10-12 | PDF 2.9 MB |
| Test Report NII DFS Master | Test Report | 2017-10-12 | PDF 2.9 MB |
| Test Report NII DFS Slave | Test Report | 2017-10-12 | PDF 696.4 KB |
| Test Report RFExp | RF Exposure Info | 2017-10-12 | PDF 324.7 KB |
| Test Report DTS WLAN | Test Report | 2017-03-29 | PDF 3.7 MB |
| Test Report NII 5G B1 | Test Report | 2017-03-29 | PDF 4.8 MB |
| Test Report NII 5G B4 | Test Report | 2017-03-29 | PDF 3.9 MB |
| Test Report RF Exposure | RF Exposure Info | 2017-03-29 | PDF 318.7 KB |
| C2PC Letter | Cover Letter(s) | 2017-10-12 | PDF 193.4 KB |
| Confidentiality Request (LTC+STC) | Cover Letter(s) | 2017-10-12 | PDF 242 KB |
| Declaration Letter 5GHz | Cover Letter(s) | 2017-10-12 | PDF 260.4 KB |
| Expidite Review Request Metadata only | Cover Letter(s) | 2017-10-12 | PDF 108.5 KB |
| POA | Cover Letter(s) | 2017-10-12 | PDF 197.8 KB |
| 5GHz Declaration Letter | Cover Letter(s) | 2017-03-29 | PDF 250.9 KB |
| Confidentiality Letter | Cover Letter(s) | 2017-03-29 | PDF 211.1 KB |
| Confidentiality Request LTC + STC | Cover Letter(s) | 2017-03-29 | PDF 211.1 KB |
| Declaration Letter 5GHz | Cover Letter(s) | 2017-03-29 | PDF 250.9 KB |
| POA | Cover Letter(s) | 2017-03-29 | PDF 197.8 KB |
| RF Exposure | RF Exposure Info | 2017-03-29 | PDF 318.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 133.1 KB | |
| Schematics Metadata only | Schematics | PDF 528.8 KB | |
| Operational Description Metadata only | Operational Description | PDF 11.4 KB | |
| Operational Description Metadata only | Operational Description | PDF 13.3 KB | |
| Operational Description Software Security Metadata only | SDR Software/Security Inf | PDF 158 KB | |
| Operational Description Software Security Metadata only | SDR Software/Security Inf | PDF 154.3 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 434 KB | |
| Tune Up Metadata only | Parts List/Tune Up Info | PDF 174.7 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 177.1 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 174.7 KB |
Application Information
| Application ID | JBBJXBtTU2WsDtiJnZn7dw== |
|---|---|
| Final Action Date | 2017-10-12 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0012268215 |
| Model | PS5AC |
| Frequency Range | 5160-5245 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | PRISM Station AC |
| Responsible Party | Mark Feil, Compliance Director, compliance@ui.com  , 385-293-3532 |
| Test Firm | Alex Chen, SPORTON International Inc., alex@sporton.com.tw  , 886-3-327-3456 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 04/10/2018 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Power listed is maximum combined output power conducted. Professional installation required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 10, 20, 30, 40, 50, 60, and 80 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| JBBJXBtTU2WsDtiJnZn7dw== | 2017-10-12 | Class II permissive change or modification of presently authorized equipment |
| vfNbIfLYiJecyFBjee/1dA== | 2017-03-29 | Original Equipment |
| gwMlD1kRvoMEZxezL0I2JQ== | 2017-03-29 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application vfNbIfLYiJecyFBjee/1dA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/29/2017 Application Dated: 03/28/2017 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-PS5AC |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | PRISM Station AC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.2198 |
| Power listed is maximum combined output power conducted. Professional installation required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application vfNbIfLYiJecyFBjee/1dA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 03/29/2017 Application Dated: 03/28/2017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-PS5AC |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | PRISM Station AC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.2198 |
| Power listed is maximum combined output power conducted. Professional installation required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 10/12/2017 Application Dated: 06/05/2017 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-PS5AC |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | PRISM Station AC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5160.0 - 5245.0 | 0.2483 | ||
| 38 CC MO | 15E | 5735.0 - 5840.0 | 0.0716 | ||
| 38 CC MO | 15E | 5255.0 - 5340.0 | 0.0394 | ||
| 38 CC MO | 15E | 5480.0 - 5715.0 | 0.0394 |
| Power listed is maximum combined output power conducted. Professional installation required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 10, 20, 30, 40, 50, 60, and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application JBBJXBtTU2WsDtiJnZn7dw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 10/12/2017 Application Dated: 06/05/2017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-PS5AC |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | PRISM Station AC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5160.0 - 5245.0 | 0.2483 | ||
| 38 CC MO | 15E | 5735.0 - 5840.0 | 0.0716 | ||
| 38 CC MO | 15E | 5255.0 - 5340.0 | 0.0394 | ||
| 38 CC MO | 15E | 5480.0 - 5715.0 | 0.0394 |
| Power listed is maximum combined output power conducted. Professional installation required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 10, 20, 30, 40, 50, 60, and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/29/2017 Application Dated: 03/28/2017 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-PS5AC |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | PRISM Station AC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5160.0 - 5245.0 | 0.2483 | ||
| 38 CC MO | 15E | 5735.0 - 5840.0 | 0.0716 |
| Power listed is maximum combined output power conducted. Professional installation required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 10, 20, 30, 40, 50, 60, and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application gwMlD1kRvoMEZxezL0I2JQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 03/29/2017 Application Dated: 03/28/2017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-PS5AC |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | PRISM Station AC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5160.0 - 5245.0 | 0.2483 | ||
| 38 CC MO | 15E | 5735.0 - 5840.0 | 0.0716 |
| Power listed is maximum combined output power conducted. Professional installation required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 10, 20, 30, 40, 50, 60, and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
