FCC ID SWX-UAPACPROO
UniFi Access Point
by Ubiquiti Inc.
Grantee Code: SWX Product Code: UAPACPROO
Latest application date: 2016-07-06
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-07-06 |
| 2412-2462 MHz | Original Equipment | 2016-07-06 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2017-01-02 | PDF 4.1 MB |
| Internal Photos | Internal Photos | 2017-01-02 | PDF 2.4 MB |
| External Photos | External Photos | 2017-01-02 | PDF 574.2 KB |

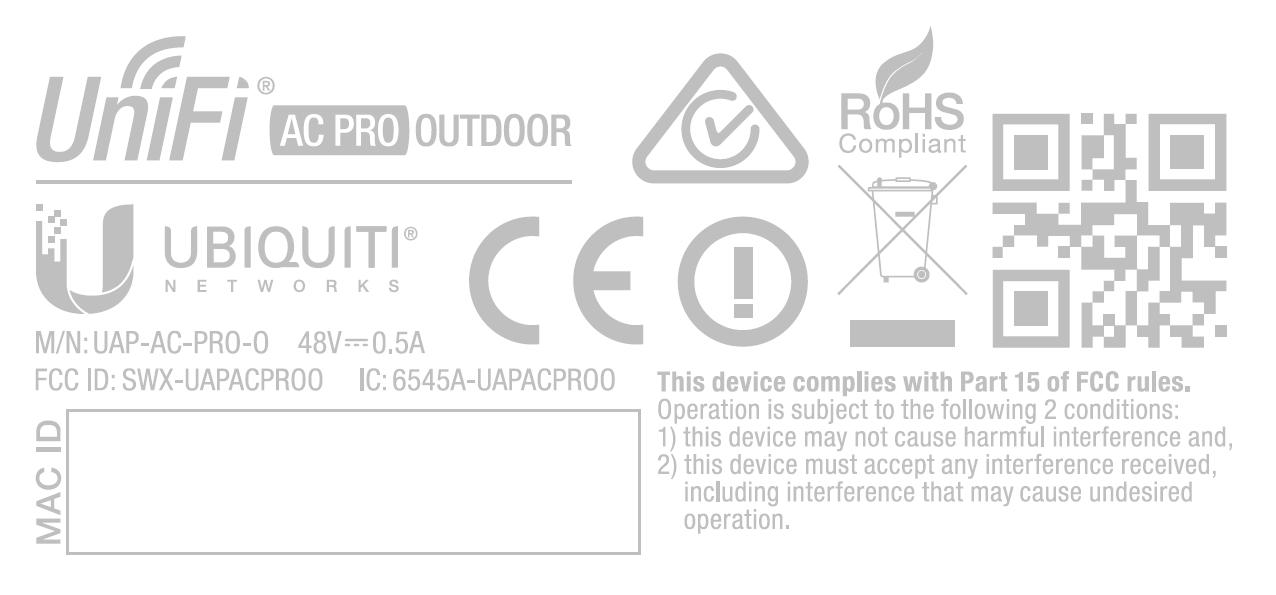

| Label Location | ID Label/Location Info | 2016-07-06 | PDF 174.1 KB |
| Label Sample | ID Label/Location Info | 2016-07-06 | PDF 143.7 KB |
| Test Setup Photos DTS | Test Setup Photos | 2017-01-02 | PDF 430.4 KB |
| Test Setup Photos NII B1 | Test Setup Photos | 2017-01-02 | PDF 431.3 KB |
| Test Setup Photos NII B4 | Test Setup Photos | 2017-01-02 | PDF 426.3 KB |
| Test Report DTS 1 | Test Report | 2016-07-06 | PDF 3 MB |
| Test Report DTS 2 | Test Report | 2016-07-06 | PDF 4.1 MB |
| Test Report NII B1 | Test Report | 2016-07-06 | PDF 2.8 MB |
| Test Report NII B4 | Test Report | 2016-07-06 | PDF 2.5 MB |
| 5GHz Declaration Letter | Cover Letter(s) | 2016-07-06 | PDF 43 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-07-06 | PDF 49.1 KB |
| POA | Cover Letter(s) | 2016-07-06 | PDF 46.1 KB |
| RF Exposure | RF Exposure Info | 2016-07-06 | PDF 341.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 539.7 KB | |
| Schematics Metadata only | Schematics | PDF 539.7 KB | |
| Operational Description Metadata only | Operational Description | PDF 15.3 KB | |
| Operational Description Software Secuirty Metadata only | SDR Software/Security Inf | PDF 219.5 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 121.9 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 94.6 KB |
Application Information
| Application ID | NxAmKWNcpq07GKimZVfZUA== |
|---|---|
| Final Action Date | 2016-07-06 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0012268215 |
| Model | UAPACPROO |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | UniFi Access Point |
| Responsible Party | Mark Feil, Compliance Director, compliance@ui.com  , 385-293-3532 |
| Test Firm | Alex Chen, SPORTON International Inc., alex@sporton.com.tw  , 886-3-327-3456 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 01/02/2017 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20, 40, and 80MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| NxAmKWNcpq07GKimZVfZUA== | 2016-07-06 | Original Equipment |
| +DoTopJd308ojuKO4pS8yw== | 2016-07-06 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application NxAmKWNcpq07GKimZVfZUA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 07/06/2016 Application Dated: 07/05/2016 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-UAPACPROO |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | UniFi Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0199 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.6223 |
| Power listed is conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20, 40, and 80MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application NxAmKWNcpq07GKimZVfZUA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 07/06/2016 Application Dated: 07/05/2016 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-UAPACPROO |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | UniFi Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0199 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.6223 |
| Power listed is conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20, 40, and 80MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 07/06/2016 Application Dated: 07/05/2016 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-UAPACPROO |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | UniFi Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.8241 |
| Power listed is conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20 and 40MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application +DoTopJd308ojuKO4pS8yw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 07/06/2016 Application Dated: 07/05/2016 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-UAPACPROO |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | UniFi Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.8241 |
| Power listed is conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20 and 40MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
