FCC ID SY4-B01006
Handheld GNSS Data Collector
by Shanghai Huace Navigation Technology Ltd.
Grantee Code: SY4 Product Code: B01006
Latest application date: 2016-06-23
Device Images
FCC ID Device Details
| FCC ID | SY4-B01006 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | SY4 |
| Product Code | B01006 |
| Applicant Business | Shanghai Huace Navigation Technology Ltd. 🇨🇳 |
| Related Domains |  huacenav.com |
| Equipment Class | Handheld GNSS Data Collector |
| Test Firm | Shenzhen Zhongjian Nanfang Testing Co.,Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-06-23 |
| 824.2-848.8 MHz | Original Equipment | 2016-06-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-06-23 | PDF 554.3 KB |

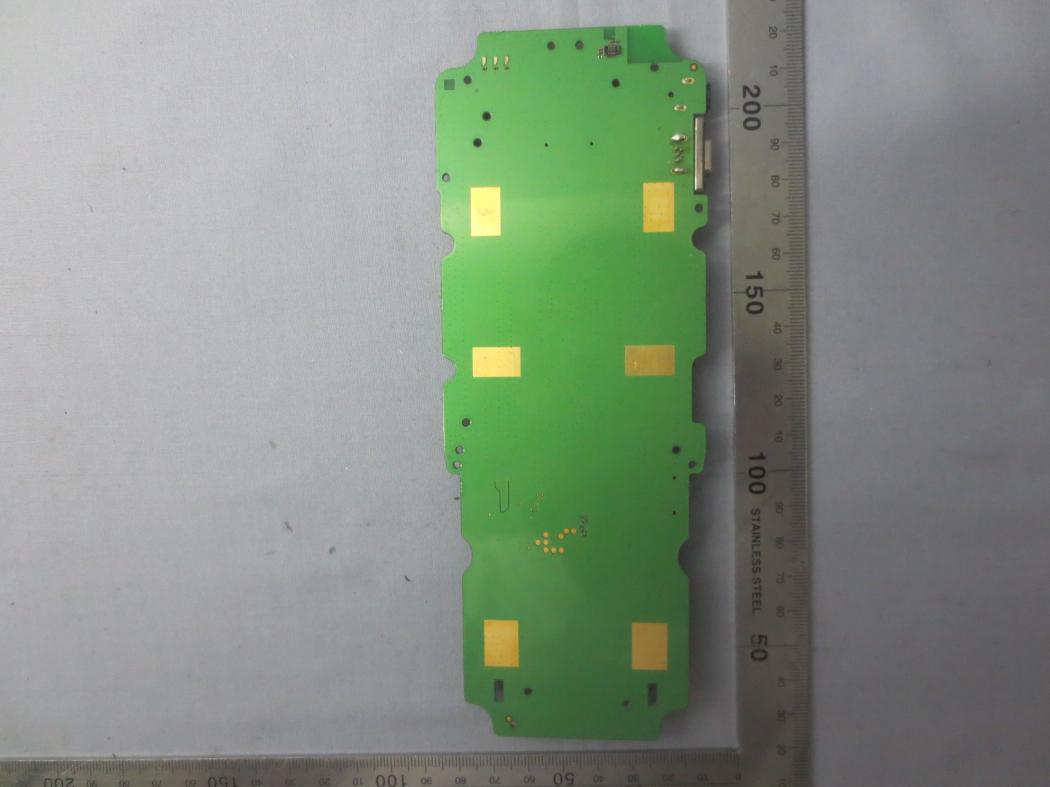

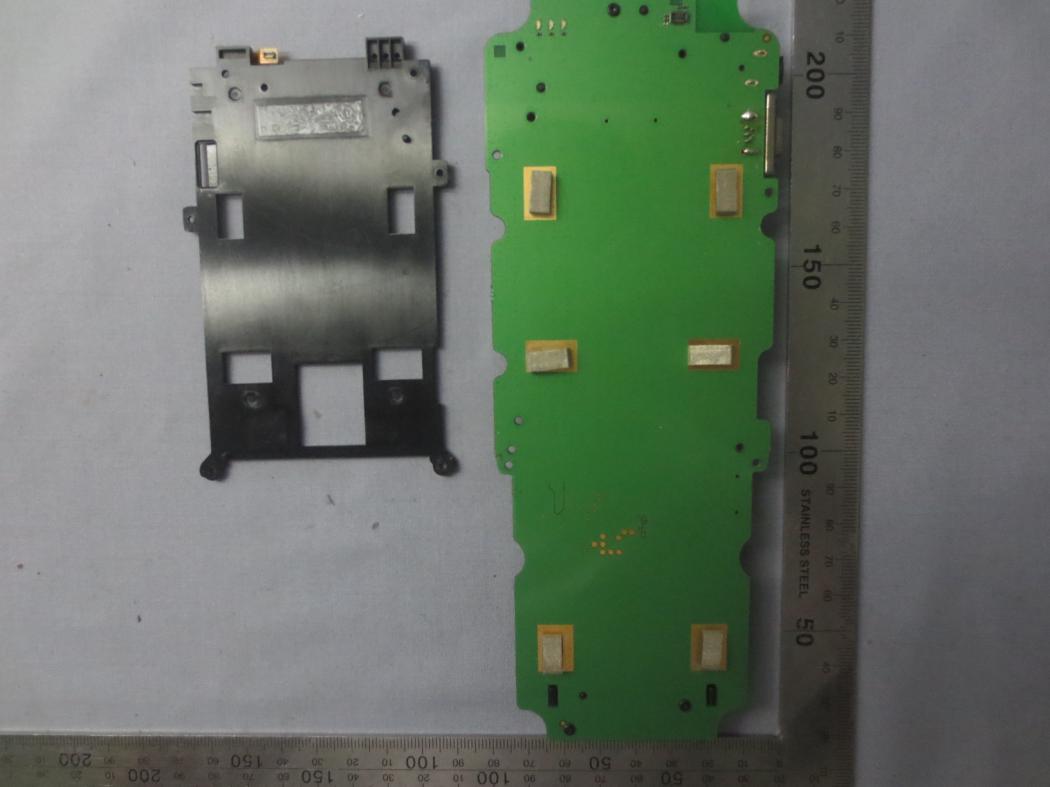

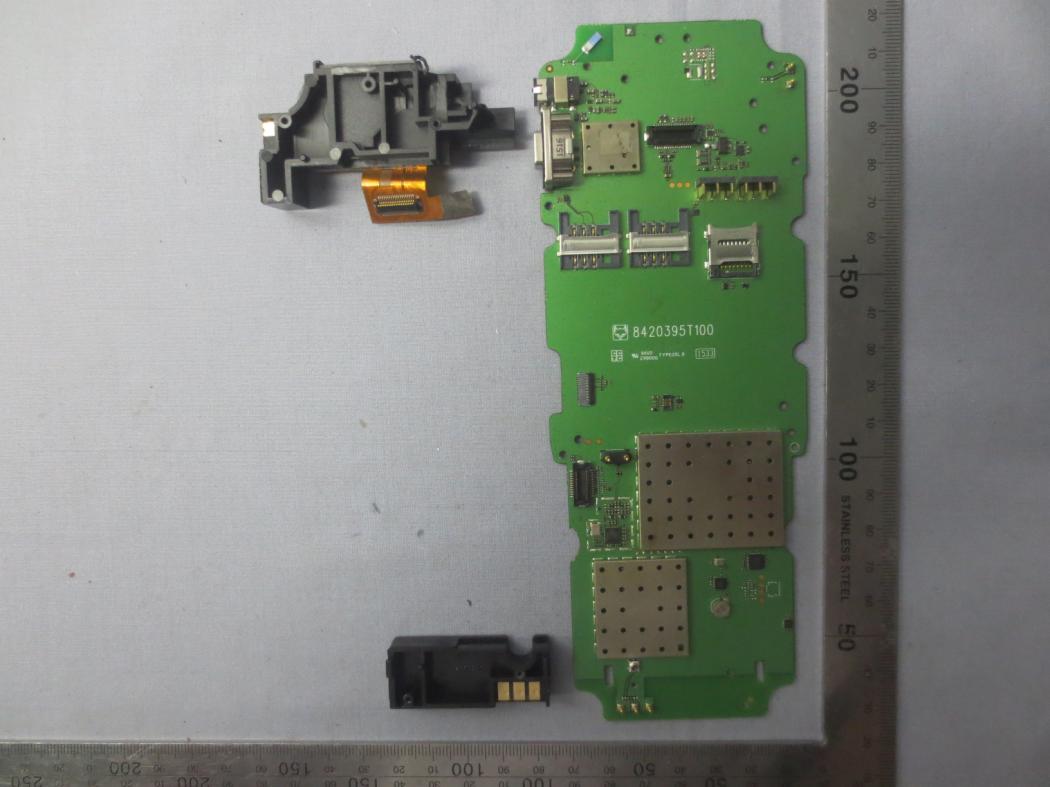

| Internal Photos | Internal Photos | 2016-06-23 | PDF 479.4 KB |

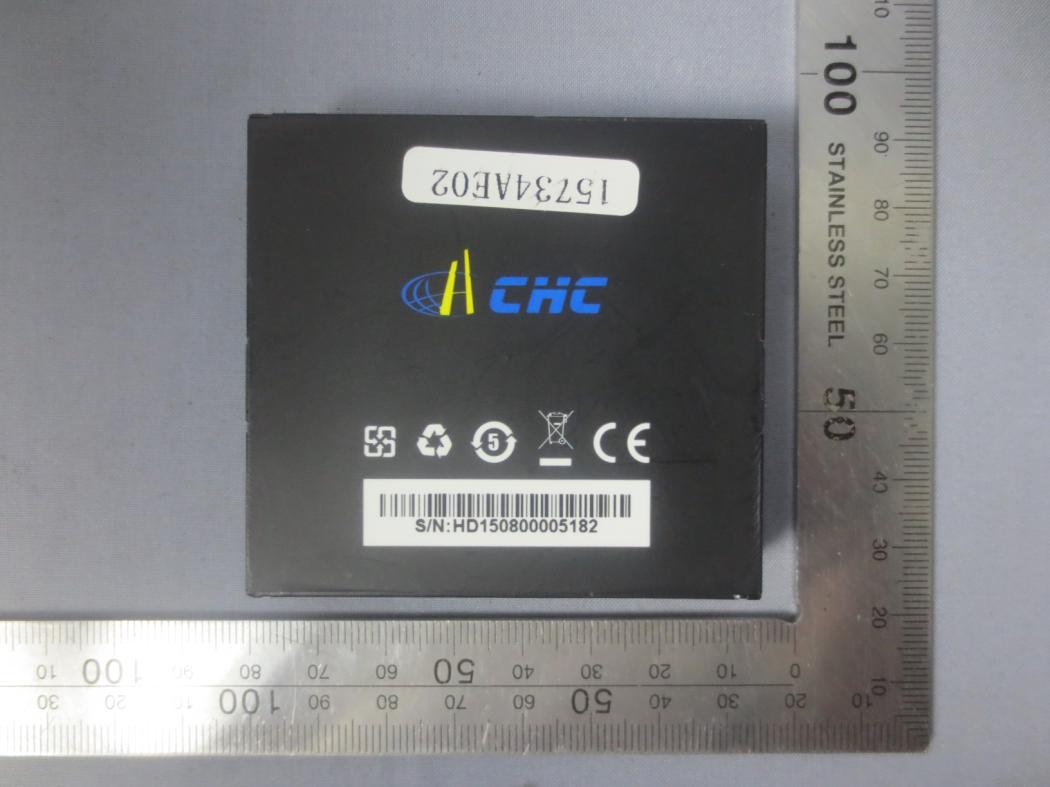

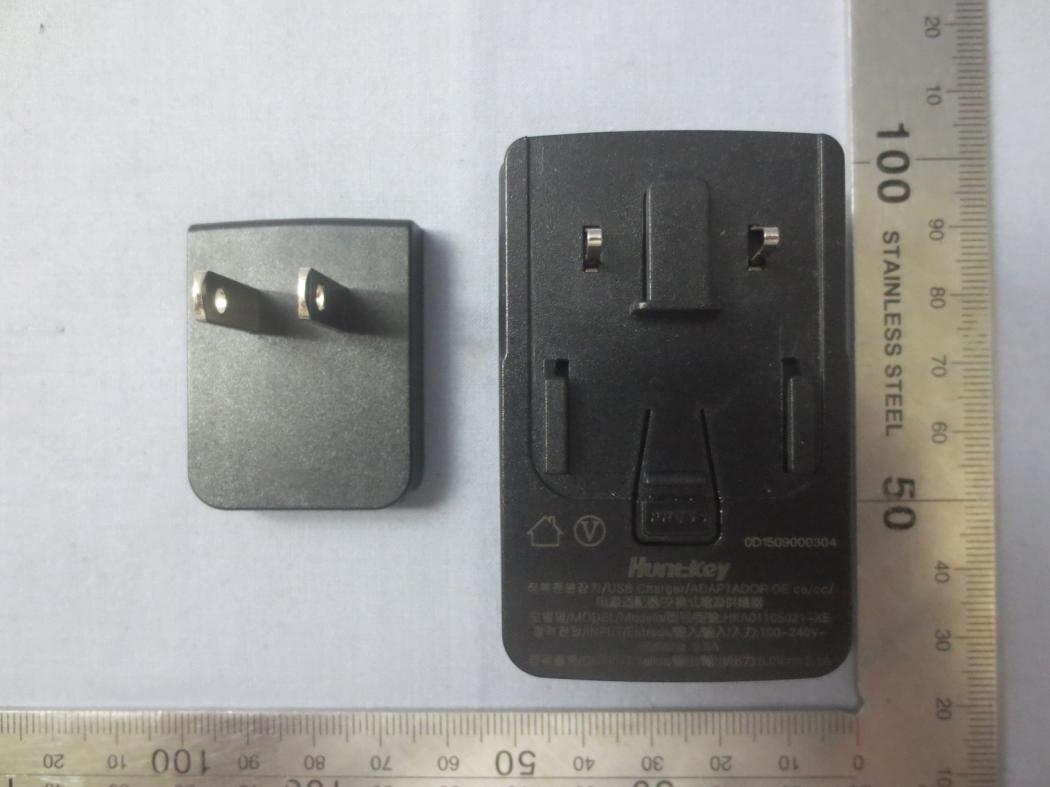

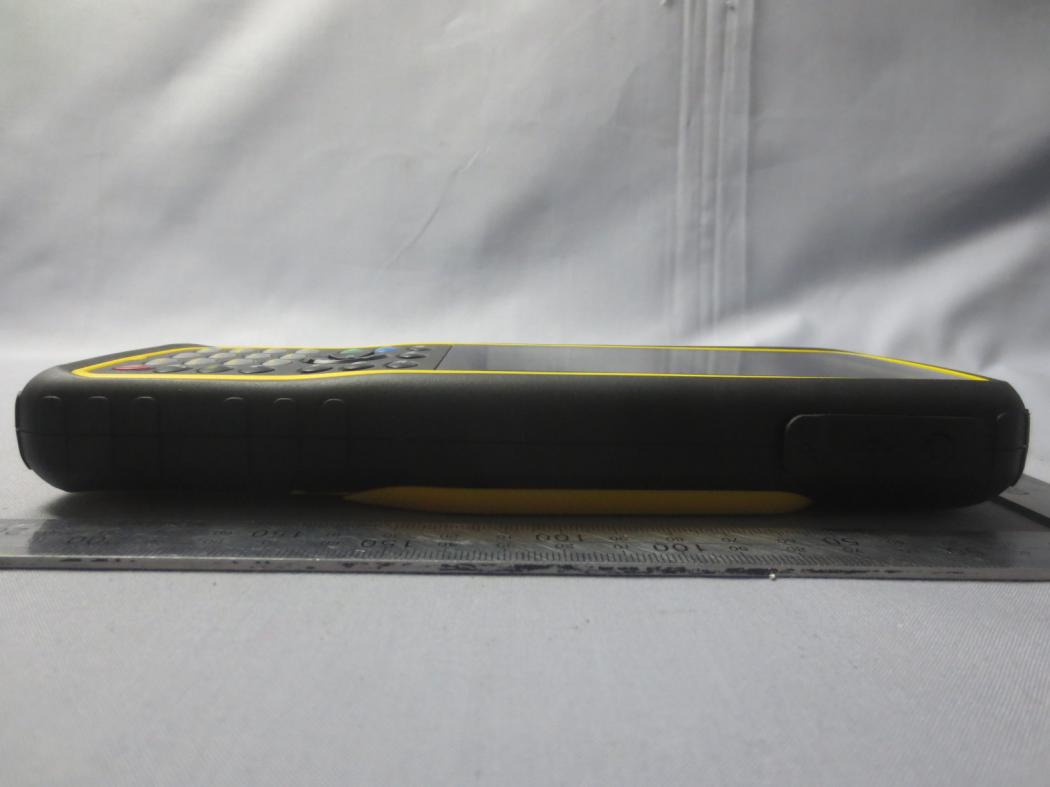

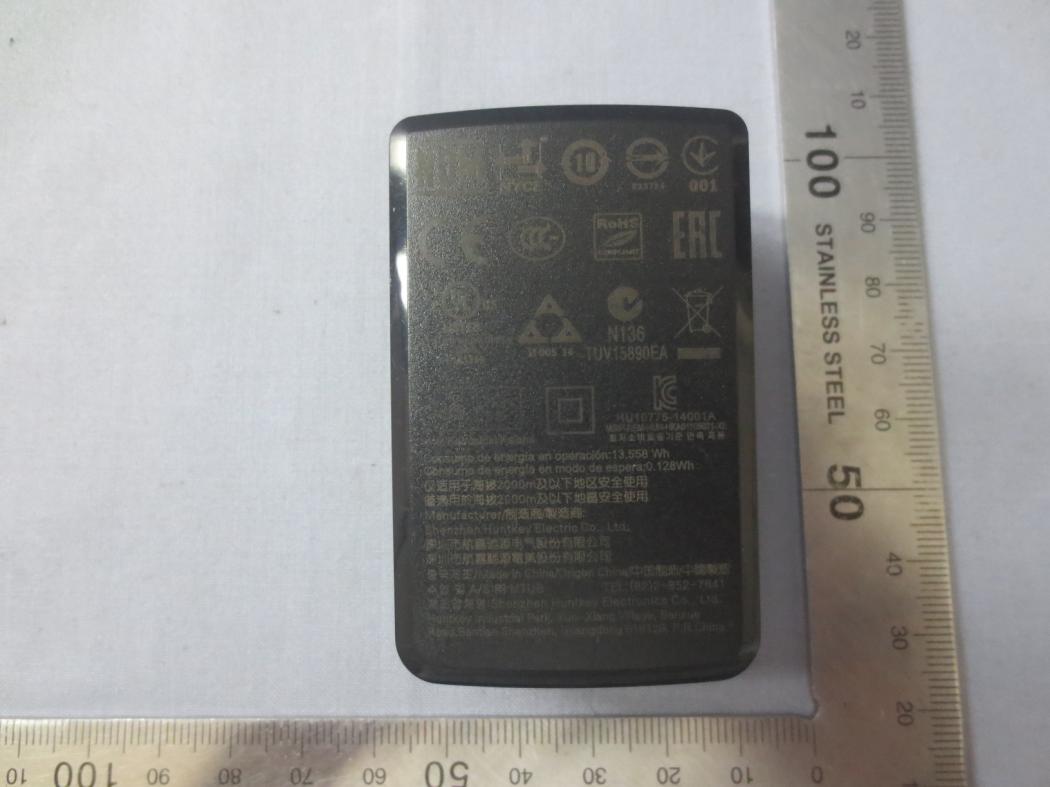

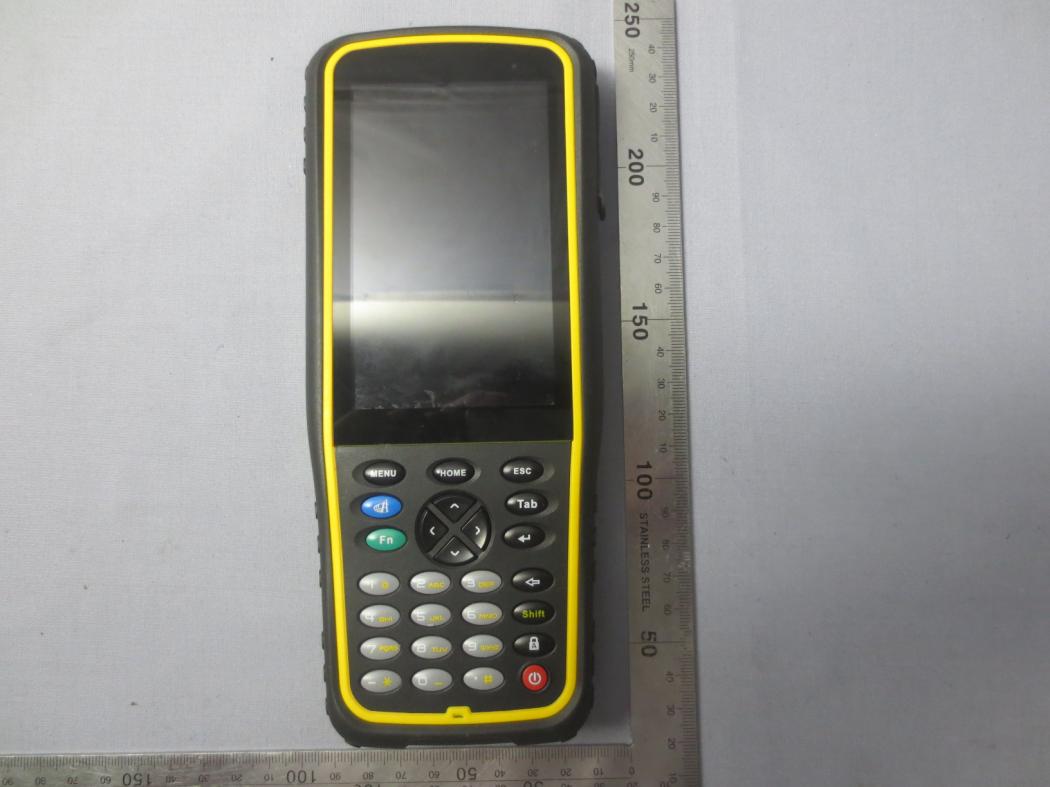

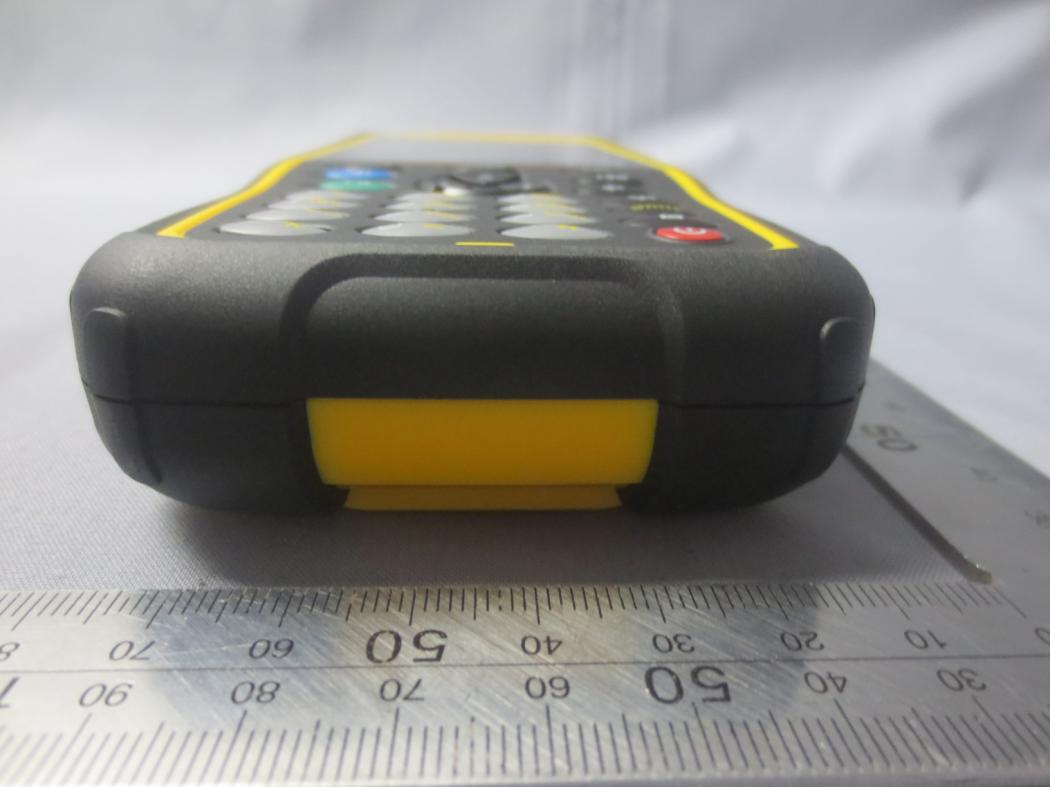

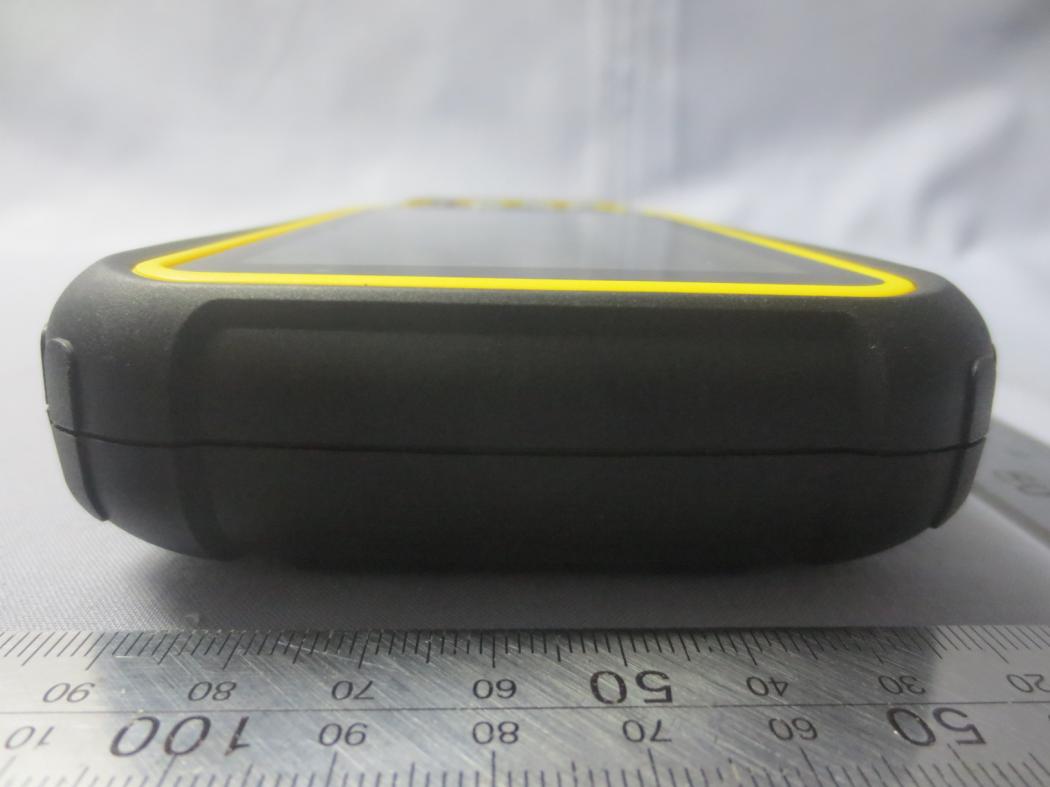

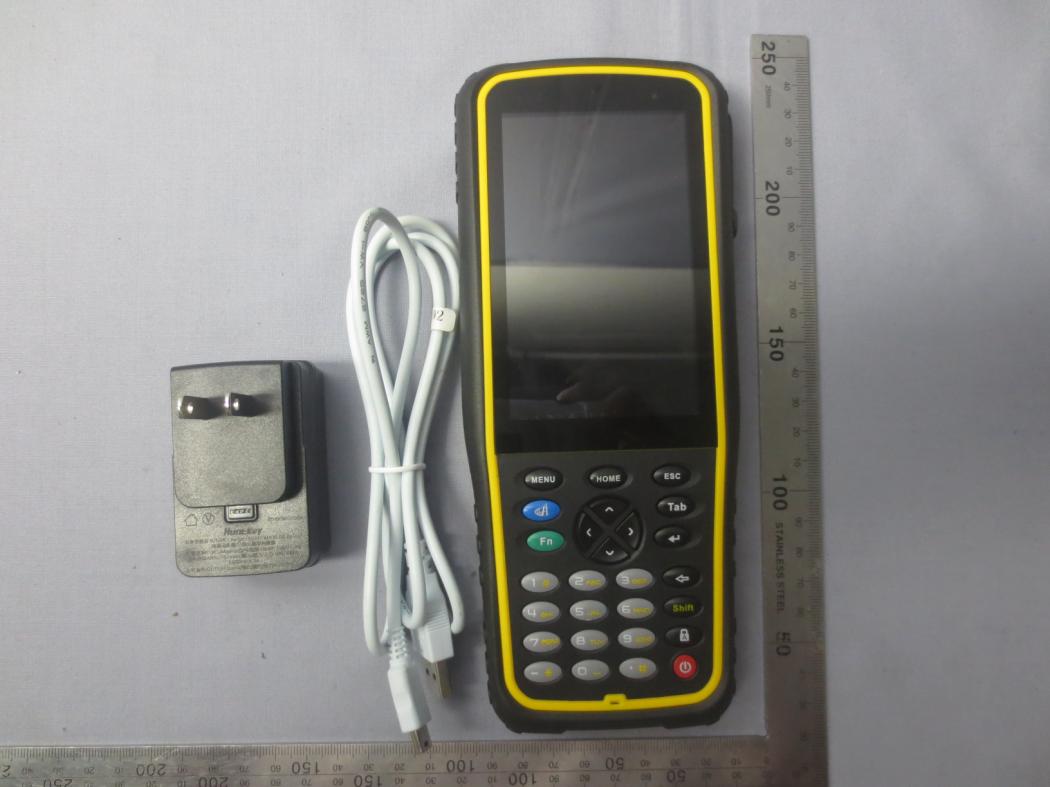

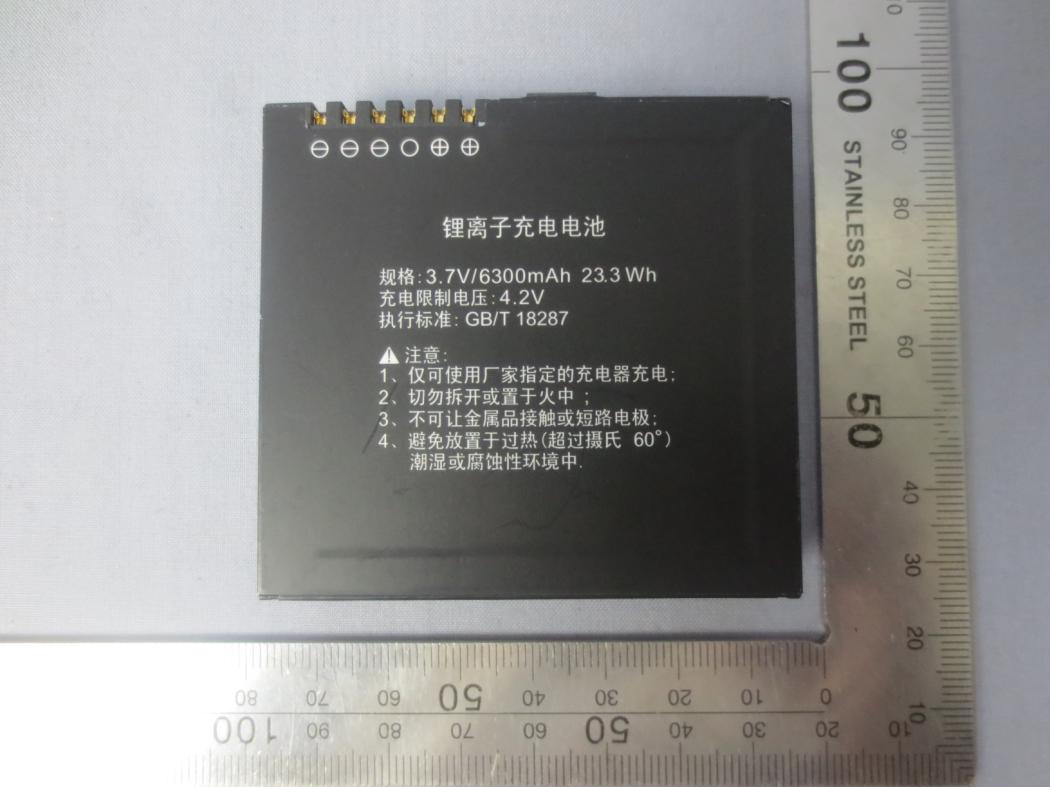

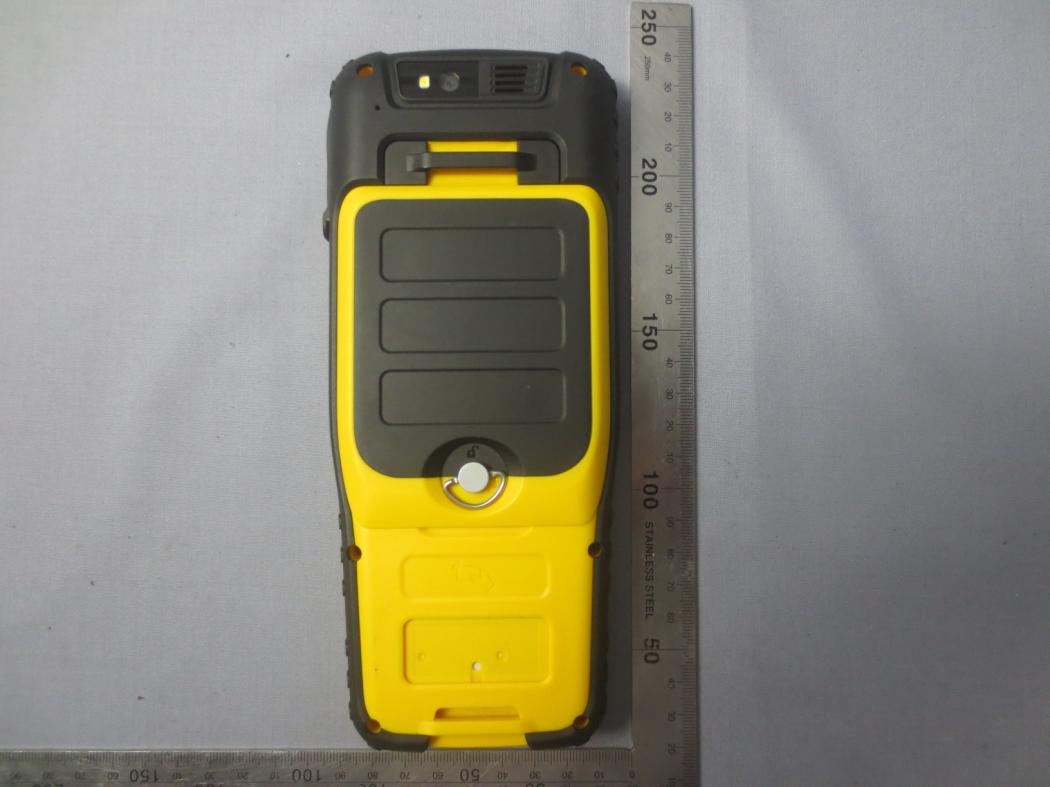

| External Photos | External Photos | 2016-06-23 | PDF 689.6 KB |
| Label and Label Location | ID Label/Location Info | 2016-06-23 | PDF 211.2 KB |
| Label and Label location | ID Label/Location Info | 2016-06-23 | PDF 211.2 KB |

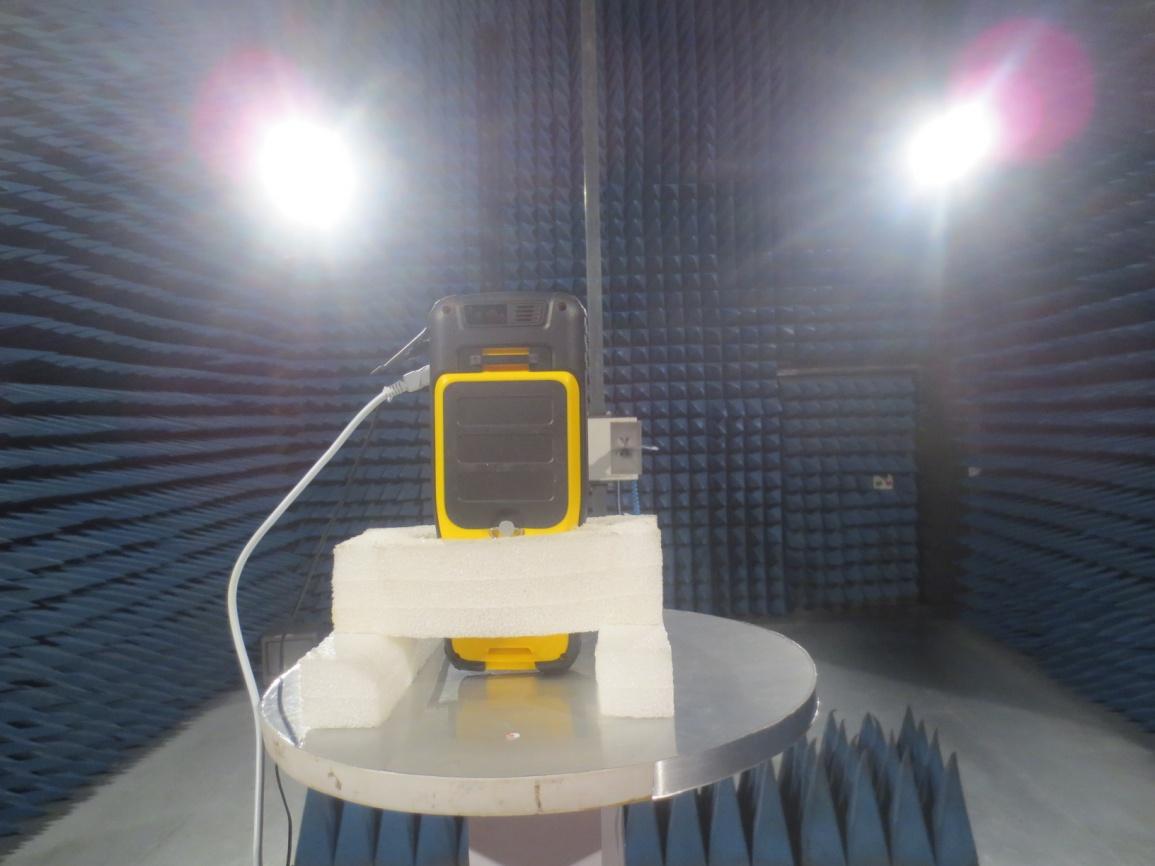

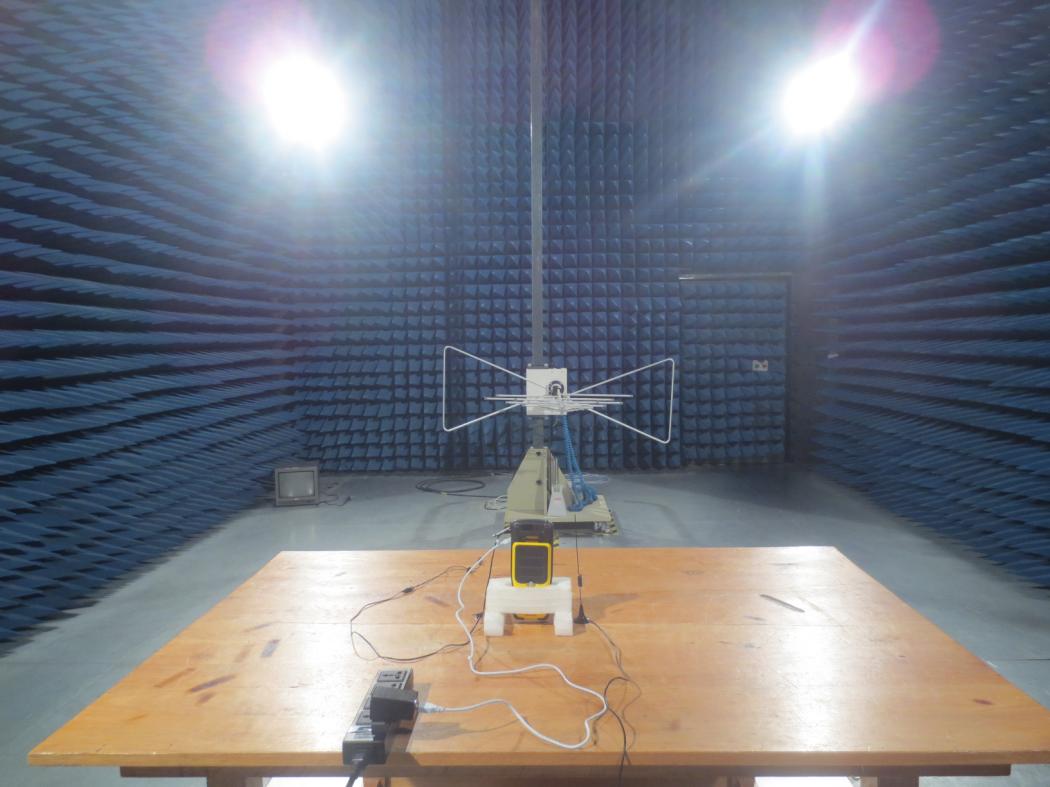

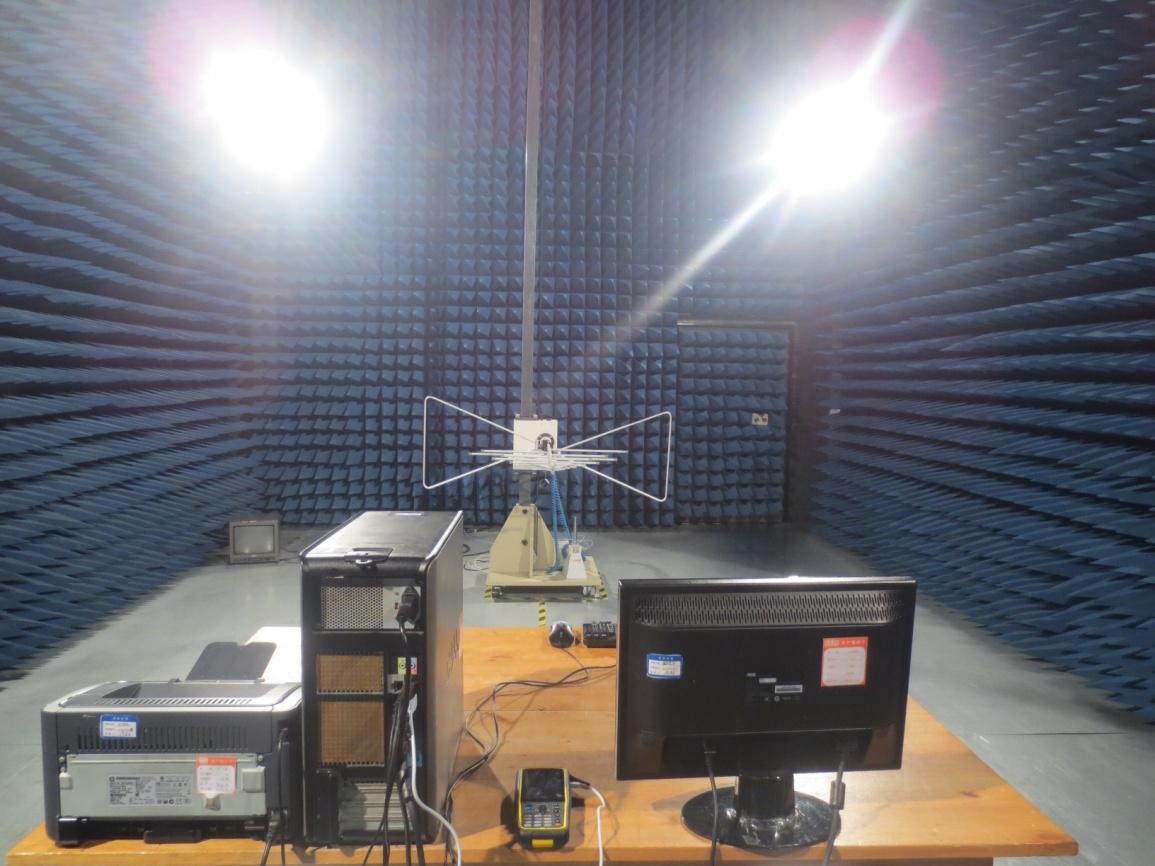

| Test Setup Photos | Test Setup Photos | 2016-06-23 | PDF 205.3 KB |
| Test Setup Photos | Test Setup Photos | 2016-06-23 | PDF 311.5 KB |
| Test Setup Photos | Test Setup Photos | 2016-06-23 | PDF 267 KB |
| Test Report | Test Report | 2016-06-23 | PDF 2.7 MB |
| Test Report | Test Report | 2016-06-23 | PDF 1.3 MB |
| Test Report | Test Report | 2016-06-23 | PDF 1.3 MB |
| Cover Letters | Cover Letter(s) | 2016-06-23 | PDF 1.2 MB |
| RF Exposure info | RF Exposure Info | 2016-06-23 | PDF 3.6 MB |
| Block Diagram Metadata only | Block Diagram | PDF 128.1 KB | |
| Schematics Metadata only | Schematics | PDF 701.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 220.6 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 221.1 KB | |
| Tune up info Metadata only | Parts List/Tune Up Info | PDF 18.3 KB |
Application Information
| Application ID | SjKITF8a5YY44RIVp4kA5g== |
|---|---|
| Final Action Date | 2016-06-23 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0022641393 |
| Model | B01006 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Handheld GNSS Data Collector |
| Responsible Party | Glenn Chu, sheng_chu@huacenav.com , +86-21-51508100 |
| Test Firm | Bruce Zhang, Shenzhen Zhongjian Nanfang Testing Co.,Ltd, bruce.zhang@ccis-cb.com  , 86-755-23118282 |
| TCB Email | Stuart.Beck@nemko.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for held to face, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.247W/kg, 0.785 W/kg, 0.785 W/kg, and 0.844W/kg, respectively |
