3351BT49 49 MHz Remote Control Transmitter... - FCC ID SZ23351BT49

FCC ID SZ23351BT49

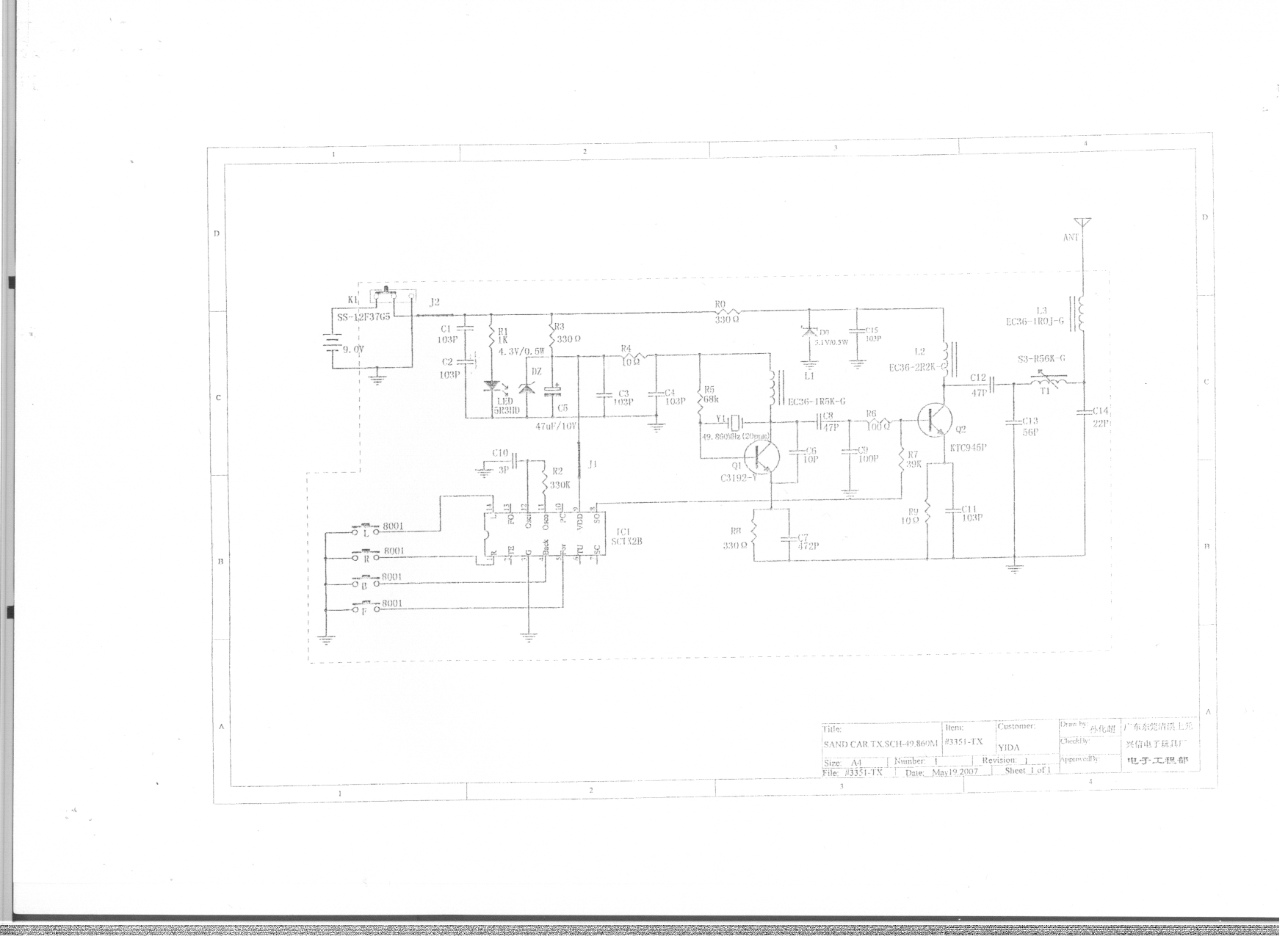

schematics

49 MHz Remote Control Transmitter

by Planet Toys (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDSZ23351BT49
Document ID807757
Document TypeSchematics
Descriptionschematics
Document TitleNone
ApplicantPlanet Toys (HK) Ltd.
Equipment Class49 MHz Remote Control Transmitter
Product Code3351BT49
Application IDu3+aeBd1lNcX1RQ5eR507w==
Application PurposeOriginal Equipment
Application Date2007-06-26
Frequency Range49.86 MHz
FRN0012908182
Test FirmTimco Engineering, Inc.
Certified ByT.K. Wong Merchandise Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-06-26
Available2007-06-26
Created2007-06-20
Modified2007-06-20
Pages1
File TypeAdobe Acrobat PDF
File Size1247221
File SHA-256c825fcc9ee3ecf14ff5a76bbc9153230e43e266ec5174e51e321c1d0eb1179ee
PDF Metadata AuthorNone
PDF Metadata CreatorAcrobat 5.0 Scan Plug-in for Windows
PDF Metadata ProducerAcrobat 5.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 807757
