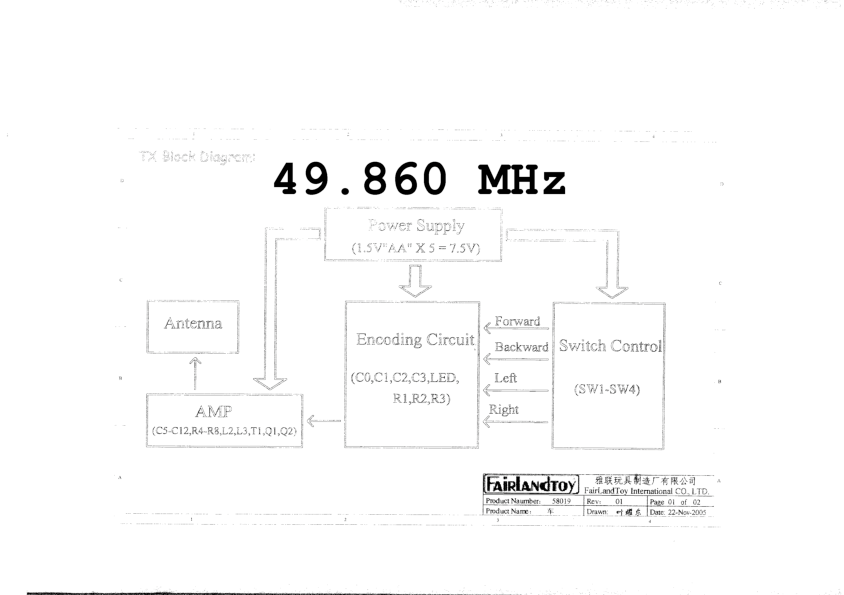

3351T49 49MHz TRANSMITTER Block Diagram - FCC ID SZ23351T49

FCC ID SZ23351T49

block diagram

49MHz TRANSMITTER

by Planet Toys (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDSZ23351T49
Document ID634016
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantPlanet Toys (HK) Ltd.
Equipment Class49MHz TRANSMITTER
Product Code3351T49
Application IDwUO6mrF/yvGul0EXd152GA==
Application PurposeOriginal Equipment
Application Date2006-03-03
Frequency Range49.86 MHz
FRN0012908182
Test FirmTimco Engineering, Inc.
Certified ByT.K WONG MERCHANDISE MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2006-03-07
Available2006-03-03
Created2006-02-27
Modified2006-02-27
Pages1
File TypeAdobe Acrobat PDF
File Size53064
File SHA-256e54c7e8fdb4b803a9ffbe2d869df2fcebb76a97b8957af70168f705b62259428
PDF Metadata ProducerAdobe Photoshop Elements 2.0 Adobe Photoshop Elements for Windows
FCC.gov SourcesFCC.gov 634016
