3615T49 1:12 Scale RC (Transmitter, Toy... - FCC ID SZ23615T49

FCC ID SZ23615T49

Schematics

1:12 Scale RC (Transmitter, Toy Remote Control)

by Planet Toys (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDSZ23615T49
Document ID594098

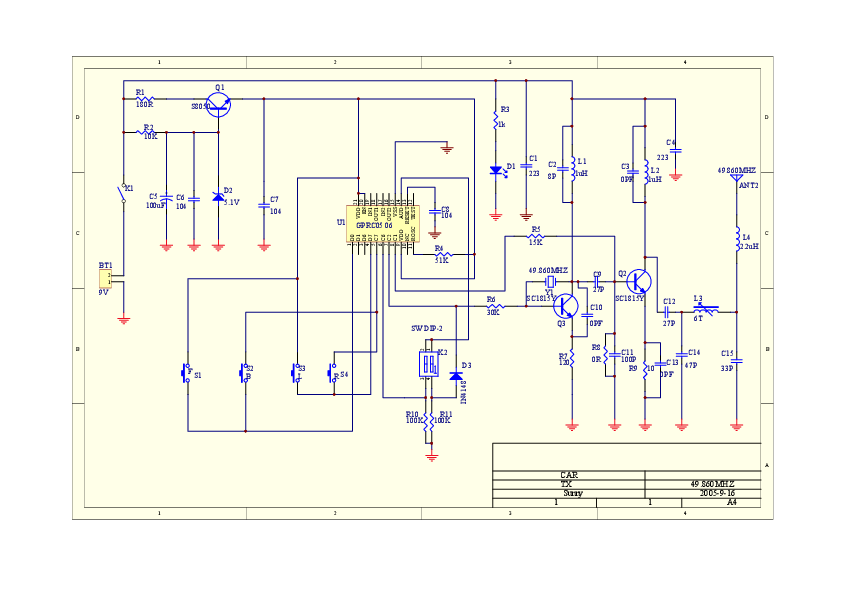

Document TypeSchematics
DescriptionSchematics
Document Title3701 CAR FCC FILE
ApplicantPlanet Toys (HK) Ltd.
Equipment Class1:12 Scale RC (Transmitter, Toy Remote Control)
Product Code3615T49
Application IDGa0zUzs8/yzkOfcMqlKRsA==
Application PurposeOriginal Equipment
Application Date2005-10-19
Frequency Range49.86 MHz
FRN0012908182
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByT.K. Wang
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-10-20
Available2005-10-19
Created2005-09-19
Modified2005-09-26
Pages1
File TypeAdobe Acrobat PDF
File Size156171
File SHA-2566c0e80caa07b42ee2d0f0bf733f7c98b645e1a8a05d0cbcae39f218f33b82d6f
PDF Metadata Authorsunny
PDF Metadata ProducerpdfFactory www.fineprint.com.cn pdfFactory 2.36 (Windows 2000 Professional Chinese)
FCC.gov SourcesFCC.gov 594098
