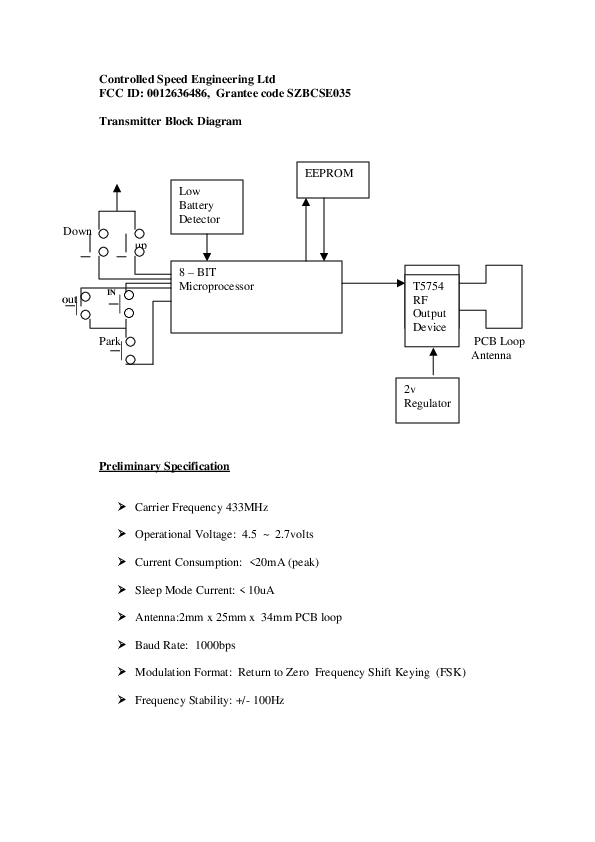

CSE035 RF REMOTE CONTROL Block Diagram - FCC ID SZBCSE035

FCC ID SZBCSE035

BLOCK DIAGRAM

RF REMOTE CONTROL

by Controlled Speed Engineering Ltd

Document preview loads when visible.

Document Details

FCC IDSZBCSE035
Document ID558105
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document TitleControlled Speed Engineering Ltd
ApplicantControlled Speed Engineering Ltd
Equipment ClassRF REMOTE CONTROL
Product CodeCSE035
Application IDNEvRFFYZ7neb2dikf0KA+w==
Application PurposeOriginal Equipment
Application Date2005-06-30
Frequency Range433.92 MHz
FRN0012636486
Test FirmDB Technology
Certified ByANTHONY FIELDEN QUALITY MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-07-01
Available2005-06-30
Created2005-05-24
Modified2005-05-24
Pages1
File TypeAdobe Acrobat PDF
File Size22932
File SHA-2568b27b0a2bf935e42e1c8c05e4e1982012bce6b5e52c6e4ab73089edc84e0907b
PDF Metadata Authortonyf
PDF Metadata ProducerAcrobat Distiller 6.0.1 (Windows) tonyf
FCC.gov SourcesFCC.gov 558105
