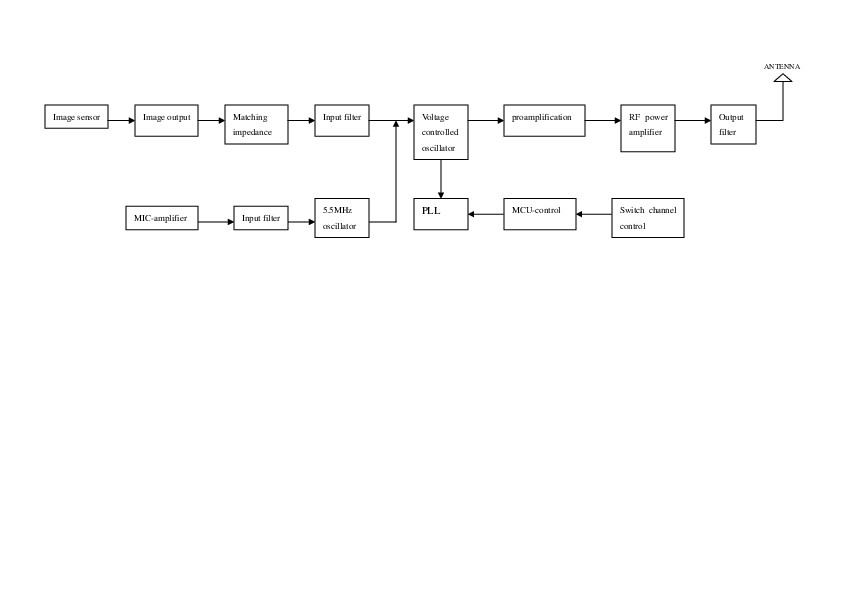

TVT6018 Wireless Camera Block Diagram - FCC ID T2WTVT-6018

FCC ID T2WTVT-6018

Block Diagram

Wireless Camera

by TongWei Video Technology CO.,LTD

Document preview loads when visible.

Document Details

FCC IDT2WTVT-6018
Document ID634324
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleBlock diagram
ApplicantTongWei Video Technology CO.,LTD
Equipment ClassWireless Camera
Product CodeTVT6018
Application IDoyhfQE4Li/R1ERf4E5wbug==
Application PurposeOriginal Equipment
Application Date2006-03-08
Frequency Range2410-2470 MHz
FRN0014741516
Test FirmShenzhen Timeway Testing Laboratories
Certified ByTina Yang Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-03-08
Available2006-03-08
Created2006-03-03
Modified2006-03-03
Pages1
File TypeAdobe Acrobat PDF
File Size10442
File SHA-2561ca35dae3a09bae1a79d8b48472d11fb72fc4a582925d7223c6a5f752406ddee
PDF Metadata AuthorTanja Lorber
PDF Metadata ProducerAcrobat Distiller 6.0.1 (Windows) Tanja Lorber
FCC.gov SourcesFCC.gov 634324
