PL9560WAP PlugLink AV 9560 Wireless... - FCC ID T37PL9560-WAP
FCC ID T37PL9560-WAP
Operation Description
PlugLink AV 9560 Wireless Adapter
Document preview loads when visible.
Document Details
| FCC ID | T37PL9560-WAP |
|---|---|
| Document ID | 955588 |
| Document Type | Operational Description |
| Description | Operation Description |

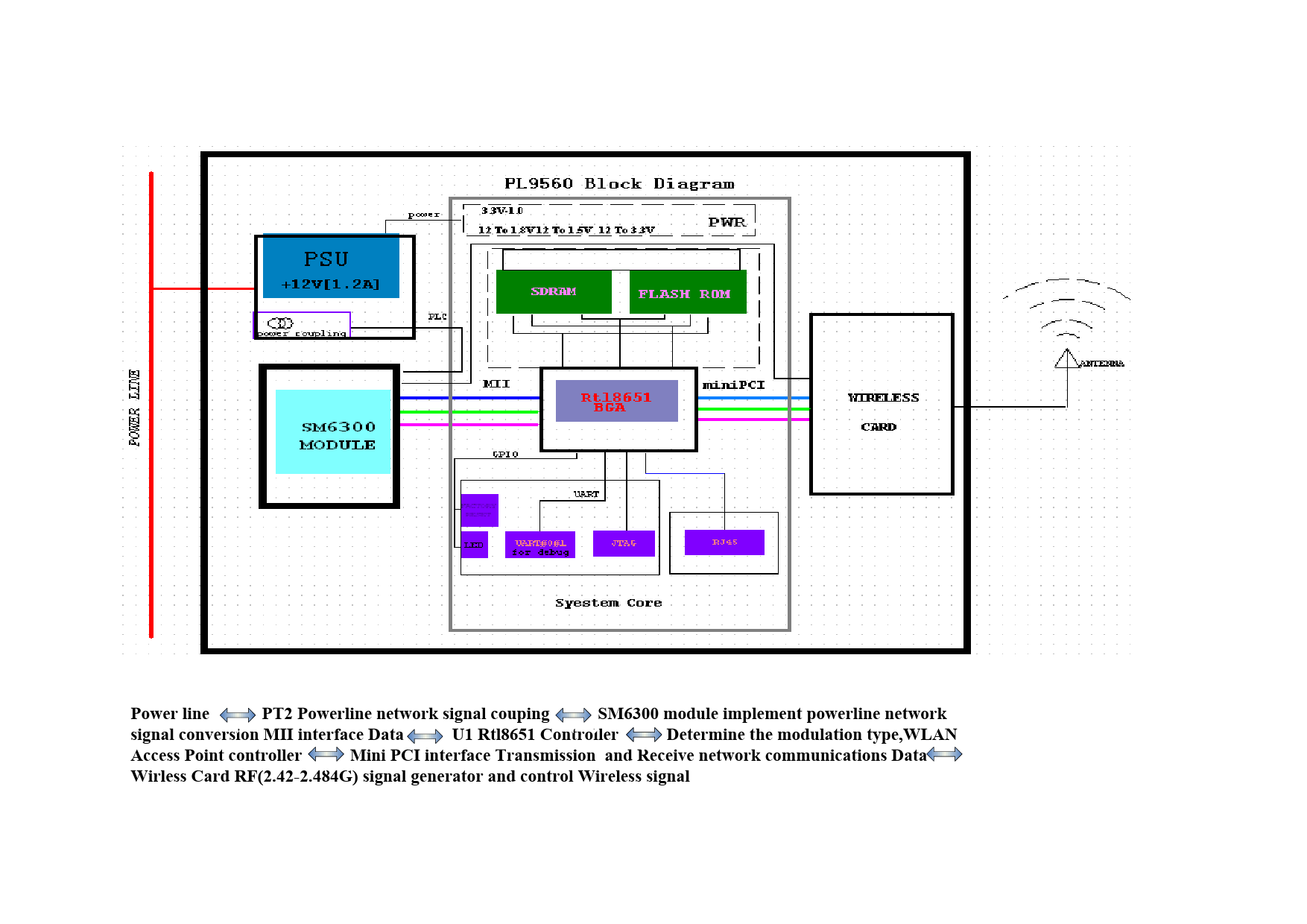

| Document Title | PL9560-WAP block diagram |
| Applicant | ASOKA USA Corporation |
| Equipment Class | PlugLink AV 9560 Wireless Adapter |
| Product Code | PL9560WAP |
| Application ID | MDId/WWAT4PfBRmOzAcEqQ== |
| Application Purpose | Original Equipment |
| Application Date | 2008-06-19 |
| Frequency Range | 2412-2462 MHz |
| FRN | 0014800767 |
| Test Firm | Shenzhen Huatongwei International Insp. Co., Ltd |
| Certified By | Jimmi Li Executive Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2008-06-16 |
| Available | 2008-06-19 |
| Created | 2008-05-27 |
| Modified | 2008-05-27 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 57294 |
| File SHA-256 | ae8e0700602fa7e997b36bf7daea01a95b7154693fb2ce582c83180aff09181b |
| PDF Metadata Author | Henry Wu |
| PDF Metadata Creator | PScript5.dll Version 5.2 |
| PDF Metadata Producer | Acrobat Distiller 5.0 (Windows) |
| FCC.gov Sources | FCC.gov 955588 |
