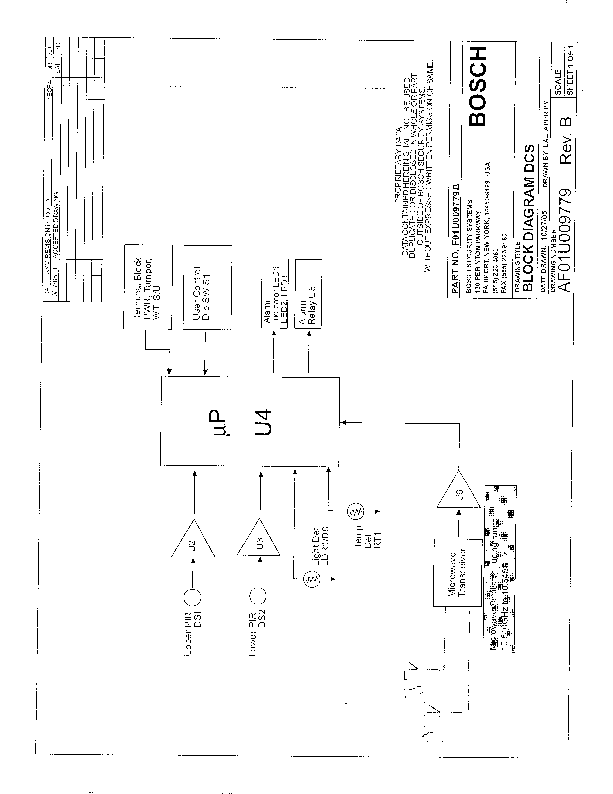

block diagram
PIR/Microwave Intrusion Detector
Document preview loads when visible.
Document Details
| FCC ID | T3XISC-PDL1-W18G |
|---|---|
| Document ID | 653366 |
| Document Type | Block Diagram |
| Description | block diagram |
| Applicant | Bosch Security Systems, Inc. |
| Equipment Class | PIR/Microwave Intrusion Detector |
| Product Code | ISCPDL1W18G |
| Application ID | mtduVJuoIi0heNw8Efh4cA== |
| Application Purpose | Original Equipment |
| Application Date | 2006-05-02 |
| Frequency Range | 10525 MHz |
| FRN | 0006167399 |
| Test Firm | TUV America Inc. |
| Certified By | Jon Wolski Regulatory Compliance Coordinator |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-05-02 |
| Available | 2006-05-02 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 63811 |
| File SHA-256 | db2f660148d3882a3170eb193e7b85224d89ca88c29a2fc915b5b191dc73f4a2 |
| PDF Metadata Producer | AccXES 8.0 Build 210 |
| FCC.gov Sources | FCC.gov 653366 |
