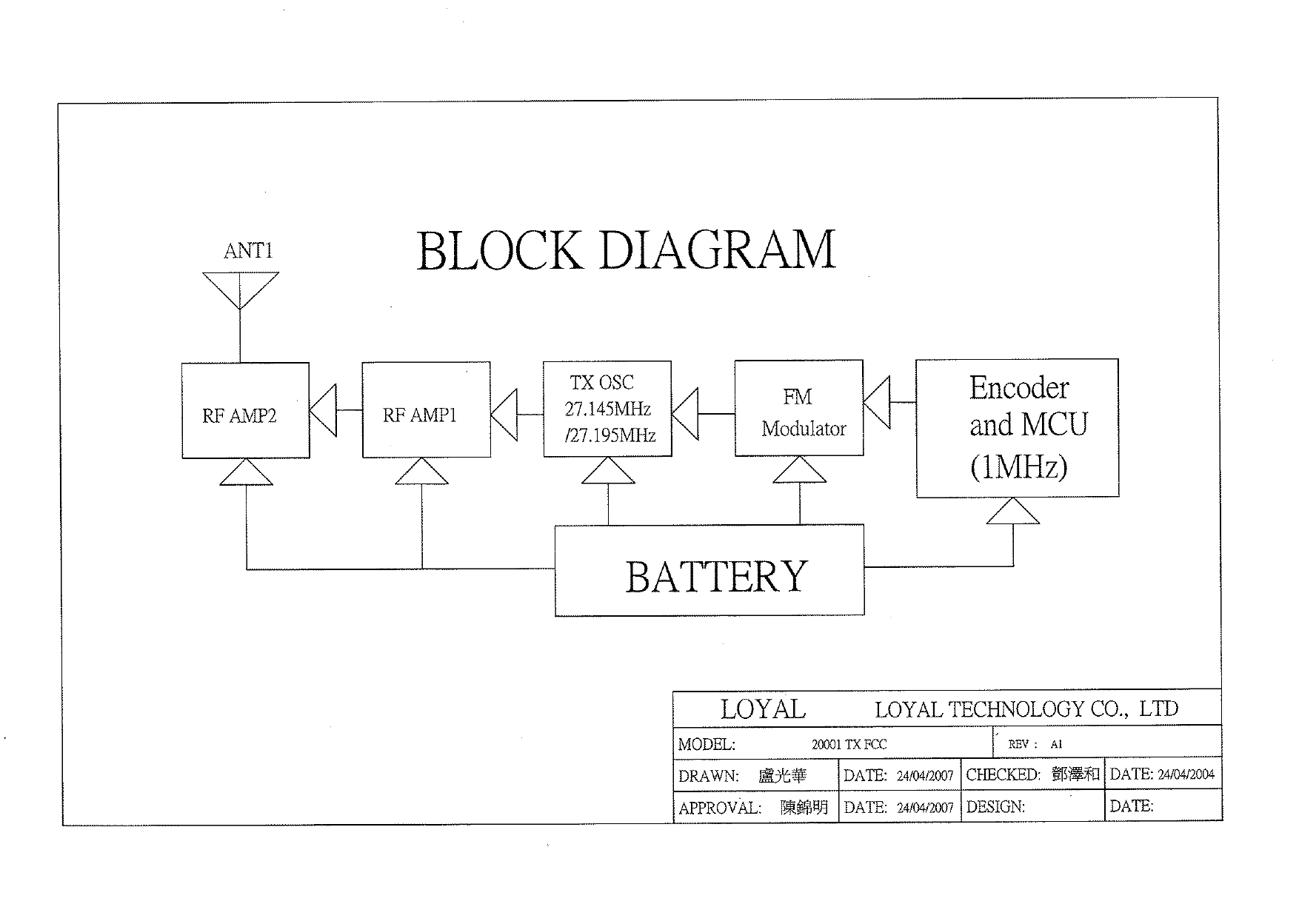

20001 RC Helicopter Block Diagram - FCC ID T8820001

FCC ID T8820001

Block Diagram

RC Helicopter

by ViRZTEX Company Limited

Document preview loads when visible.

Document Details

FCC IDT8820001
Document ID789441
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantViRZTEX Company Limited
Equipment ClassRC Helicopter
Product Code20001
Application ID4PBI2JrlmyfzlG/0YtyjoA==
Application PurposeOriginal Equipment
Application Date2007-05-07
Frequency Range27.145-27.195 MHz
FRN0017794017
Test FirmIntertek Testing Services Hong Kong
Certified ByAnthony Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-05-07
Available2007-05-07
Created2007-05-03
Modified2007-05-03
Pages1
File TypeAdobe Acrobat PDF
File Size50597
File SHA-25649db515a42d855801f1f67862401a9a6ee3a4e27433b4b3f6093c5a030f2b98d
PDF Metadata AuthorNone
PDF Metadata CreatorNone
PDF Metadata ProducerNone
FCC.gov SourcesFCC.gov 789441
