DXTOYS51949 49MHz Radio Transmitter... - FCC ID TB7DXTOYS51949

FCC ID TB7DXTOYS51949

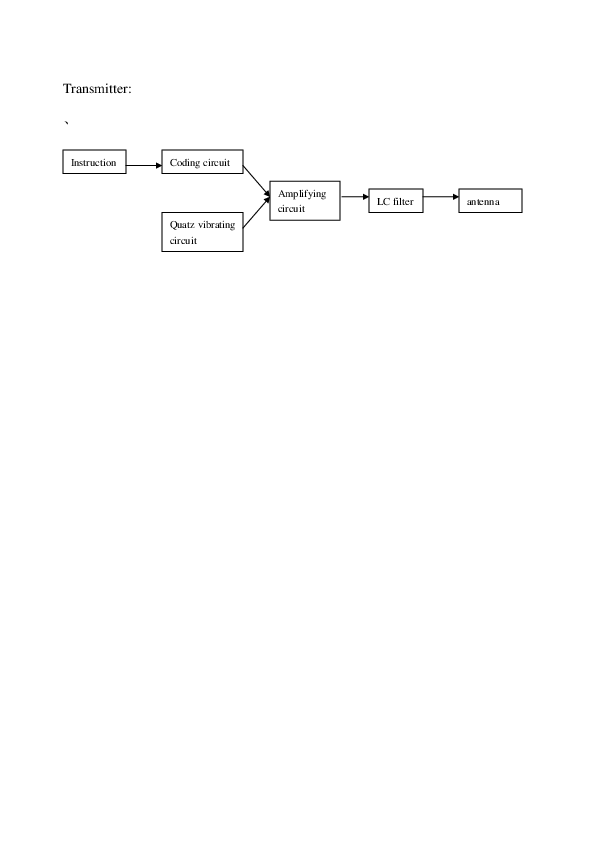

Block Diagram

49MHz Radio Transmitter

by Shantou Chenghai Dongxin Plastic Toys Co., Ltd

Document preview loads when visible.

Document Details

FCC IDTB7DXTOYS51949
Document ID573560
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title<4D6963726F736F667420576F7264202D20B7BDBFF2CDBCBACDD4ADC0EDCBB5C3F72E646F63>
ApplicantShantou Chenghai Dongxin Plastic Toys Co., Ltd
Equipment Class49MHz Radio Transmitter
Product CodeDXTOYS51949
Application ID4EhCvyyMeHiI1VNVKPWJFg==
Application PurposeOriginal Equipment
Application Date2005-08-22
Frequency Range49.86 MHz
FRN0019697044
Test FirmSGS-CSTC Standards Technical Services Co., Ltd
Certified ByJerry Chen Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-08-22
Available2005-08-22
Created2005-08-16
Modified2005-08-16
Pages1
File TypeAdobe Acrobat PDF
File Size27114
File SHA-256e2be84df8635f103176dc36a2bbd0fe4593fd2ecd215d01b5730fa8b1c7681ca
PDF Metadata AuthorCherry_Li
PDF Metadata ProducerAcrobat Distiller 6.0.1 (Windows) Cherry_Li
FCC.gov SourcesFCC.gov 573560
