021 Furniture Terminal External Photos - FCC ID TCN021
FCC ID TCN021

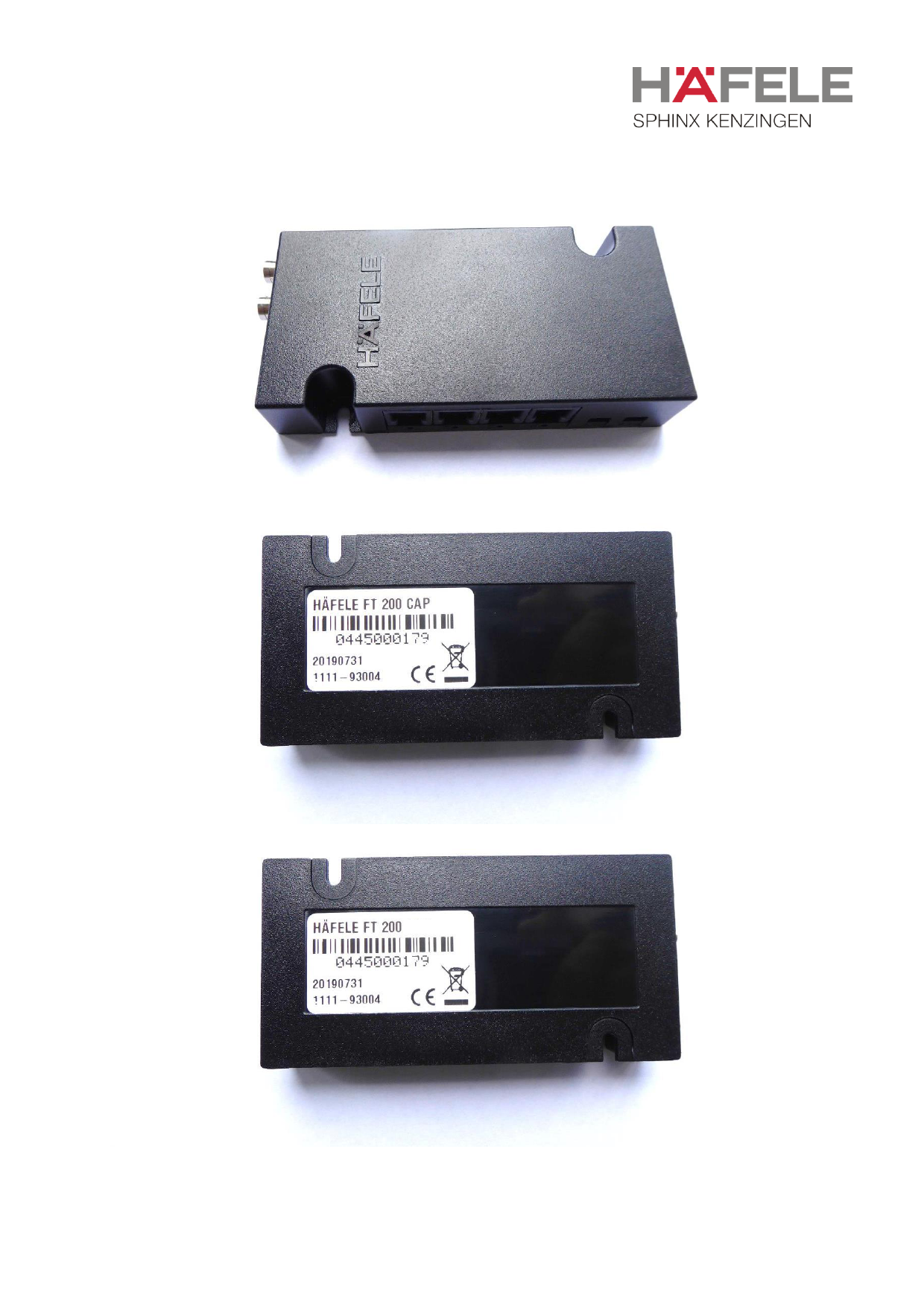

External Photos
Furniture Terminal
Document preview loads when visible.
Document Details
| FCC ID | TCN021 |
|---|---|
| Document ID | 4462985 |
| Document Type | External Photos |
| Description | External Photos |
| Applicant | Sphinx Electronics GmbH & Co.KG |
| Equipment Class | Furniture Terminal |
| Product Code | 021 |
| Application ID | E0dS5NcsYsIp5mcUuXktig== |
| Application Purpose | Original Equipment |
| Application Date | 2019-09-27 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0025402041 |
| Test Firm | CTC advanced GmbH |
| Certified By | Pascal Bodechon Head of Department |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2019-09-27 |
| Available | 2019-09-27 |
| Created | 2019-08-15 |
| Modified | 2019-08-15 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 434260 |
| File SHA-256 | cc5073f974dfca30d1e54e2239bb64251b8945f935a2443c2d4975ef5d1f61ac |
| PDF Metadata Author | Roemmelt, Jan |
| PDF Metadata Producer | Microsoft® Word 2010 Microsoft® Word 2010 |
| FCC.gov Sources | FCC.gov 4462985, FCC.gov 4462957 |
Related FCC Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual Part 1 | Users Manual | 2019-09-27 | PDF 4.8 MB |
| User manual Part 2 | Users Manual | 2019-09-27 | PDF 5.3 MB |
| User manual Part 3 | Users Manual | 2019-09-27 | PDF 2.7 MB |
| User manual Part 4 | Users Manual | 2019-09-27 | PDF 852 KB |
| Internal Photos | Internal Photos | 2019-09-27 | PDF 227.4 KB |
| External Photos | External Photos | 2019-09-27 | PDF 424.1 KB |
| Label | ID Label/Location Info | 2019-09-27 | PDF 153.5 KB |
| Test Setup Photos | Test Setup Photos | 2019-09-27 | PDF 807.5 KB |
| Test Report DTS Part 1 | Test Report | 2019-09-27 | PDF 2.1 MB |
| Test Report DTS Part 2 | Test Report | 2019-09-27 | PDF 2.4 MB |
| Test Report DXX | Test Report | 2019-09-27 | PDF 1.7 MB |
| FCC Confidentiality Letter | Cover Letter(s) | 2019-09-27 | PDF 636.8 KB |
| RF Exposure Information | RF Exposure Info | 2019-09-27 | PDF 300.3 KB |
| Block Diagram RF Metadata only | Block Diagram | PDF 4.3 KB | |
| Block Diagram device Metadata only | Block Diagram | PDF 24.5 KB | |
| Schematics Metadata only | Schematics | PDF 1.1 MB | |
| Operational Description Metadata only | Operational Description | PDF 8.7 KB |
