FCC ID TE7C9V2
AC1900 Wireless Dual Band Gigabit Router
by TP-Link Technologies Co., Ltd.
Grantee Code: TE7 Product Code: C9V2
Latest application date: 2016-05-18
Device Images
FCC ID Device Details
| FCC ID | TE7C9V2 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | TE7 |
| Product Code | C9V2 |
| Applicant Business | TP-Link Technologies Co., Ltd. 🇨🇳 |
| Related Domains |  tp-link.com |
| Equipment Class | AC1900 Wireless Dual Band Gigabit Router |
| Test Firm | SPORTON International Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-05-18 |
| 5180-5240 MHz | Original Equipment | 2015-11-17 |
| 2412-2462 MHz | Original Equipment | 2015-11-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2015-11-17 | PDF 3.4 MB |
| Internal Photos | Internal Photos | 2015-11-17 | PDF 1.4 MB |
| External Photos | External Photos | 2015-11-17 | PDF 1.4 MB |
| Label | ID Label/Location Info | 2015-11-17 | PDF 1.1 MB |

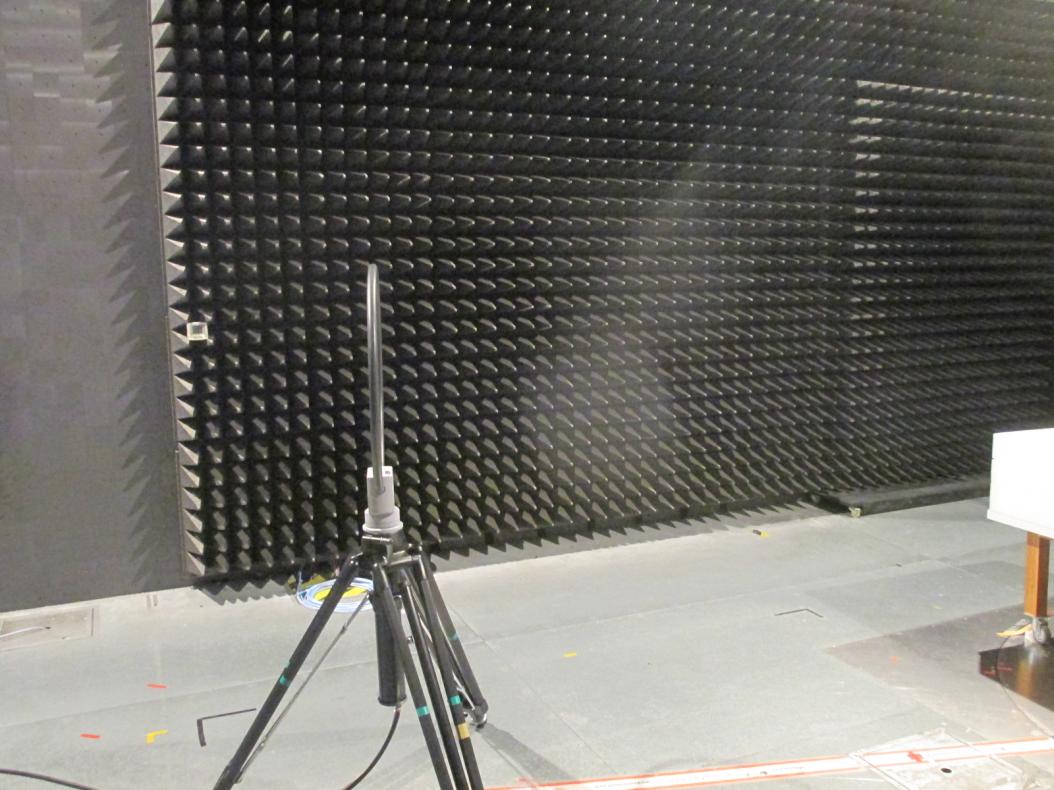

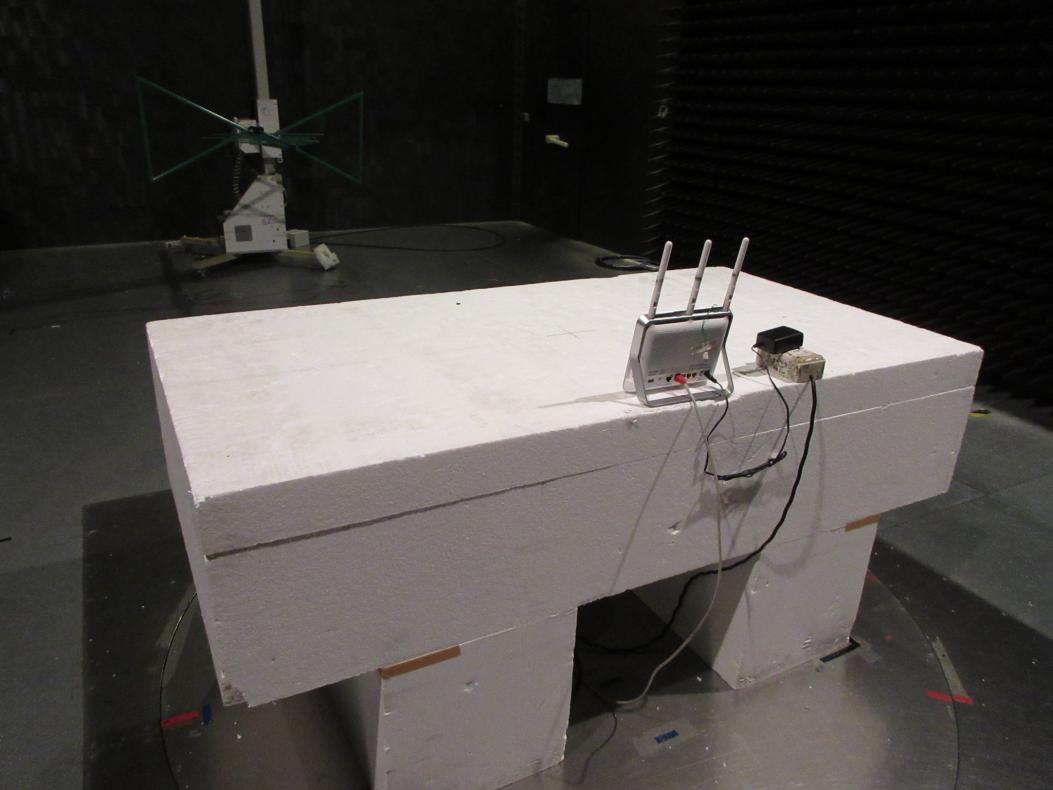

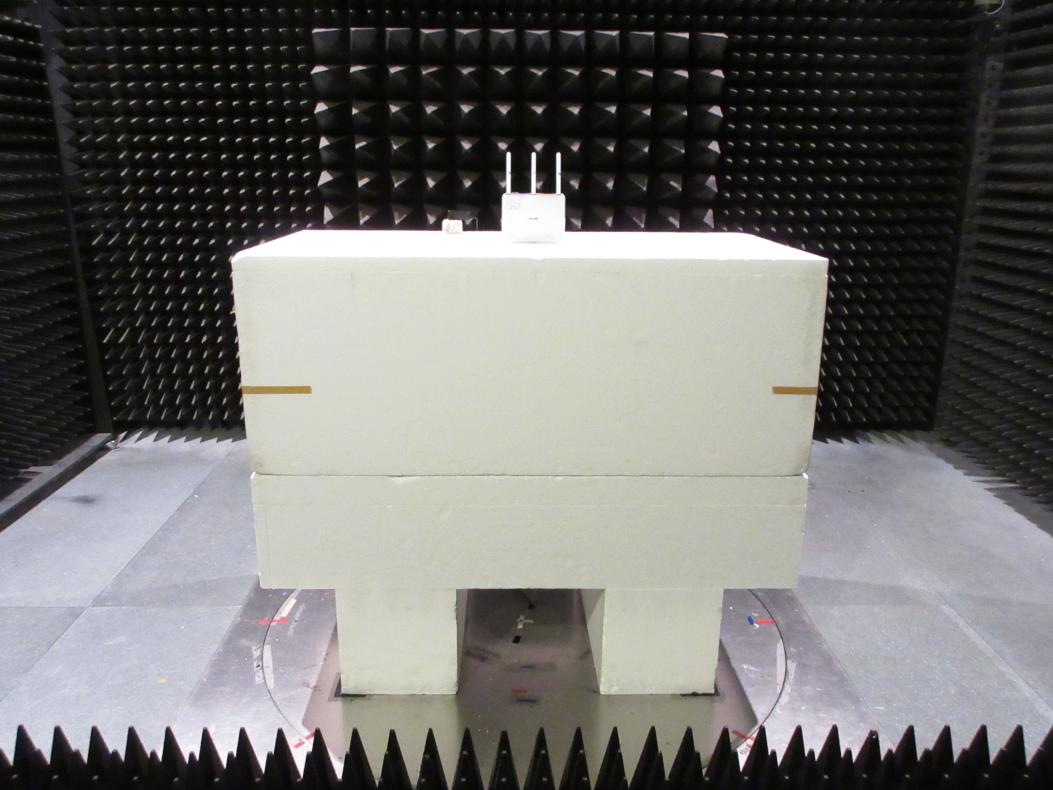

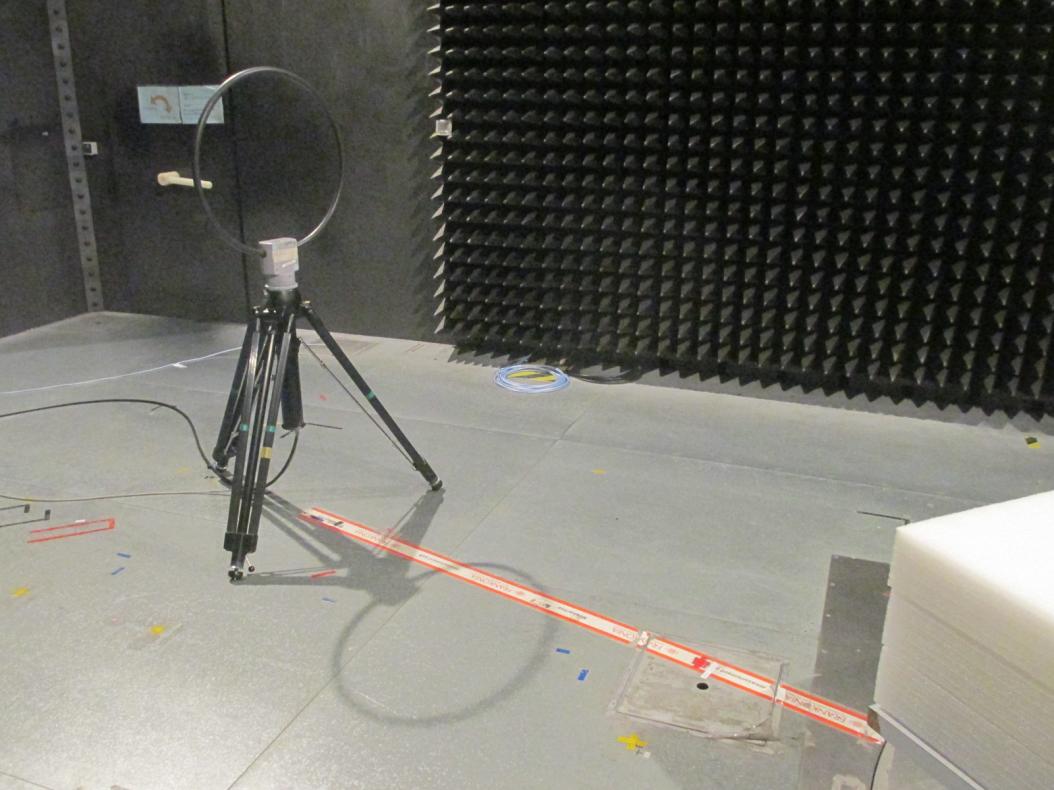

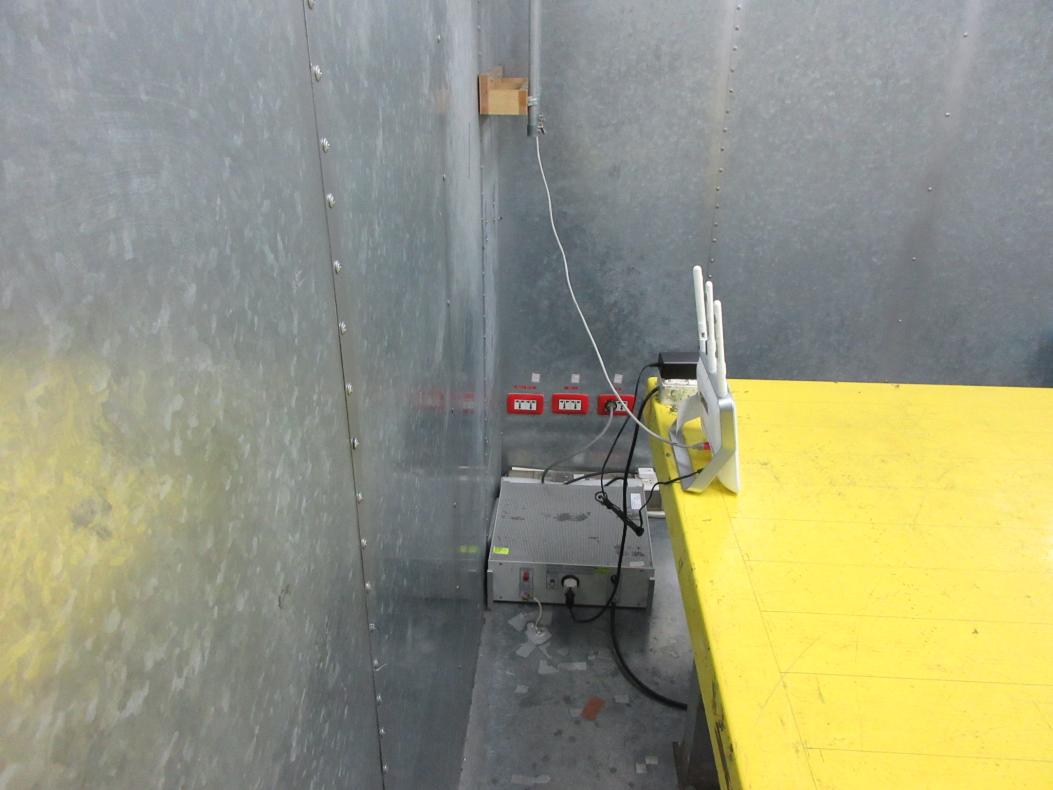

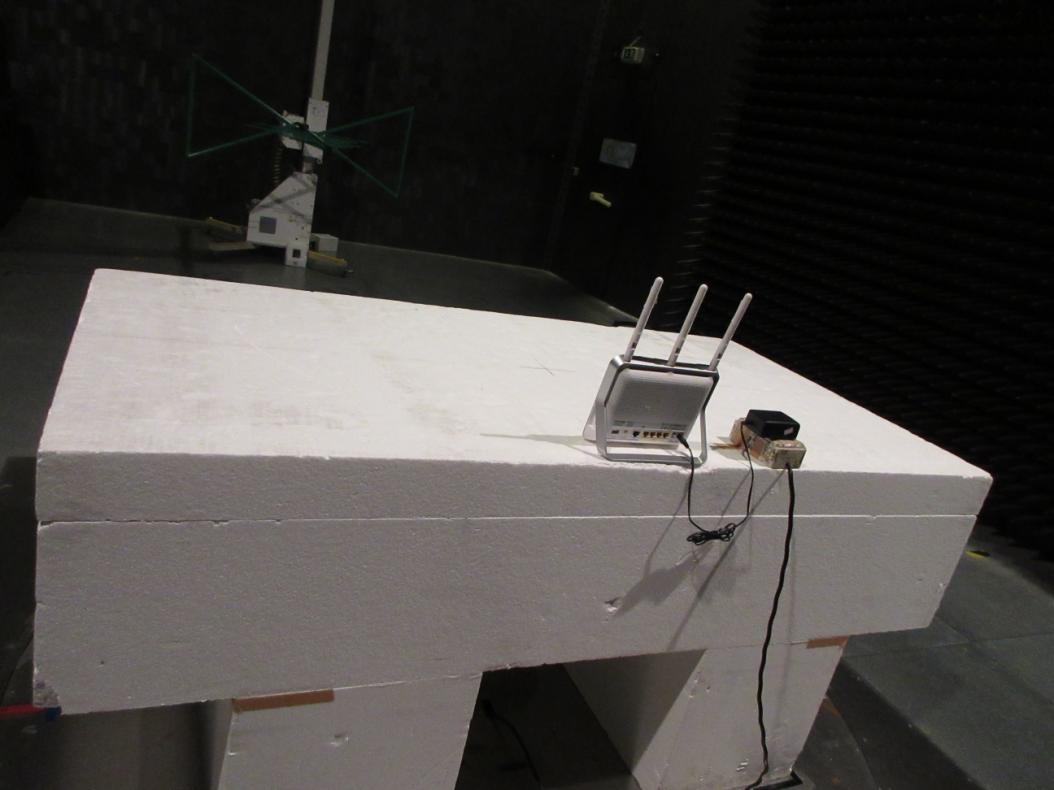

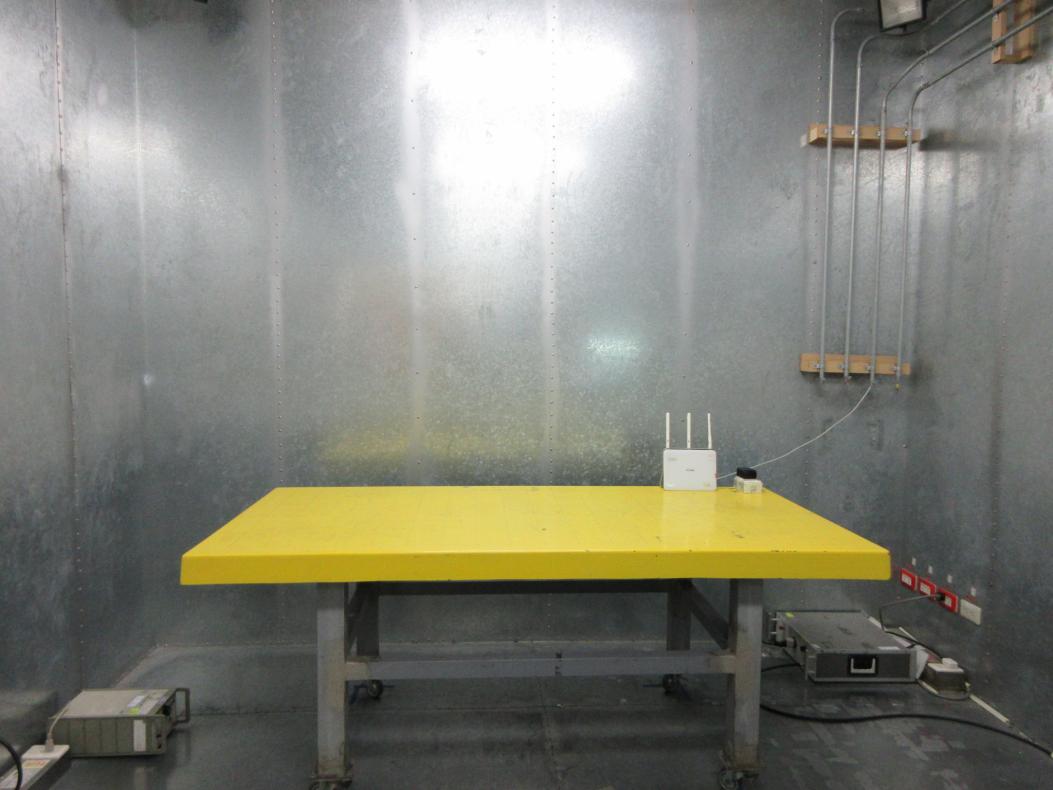

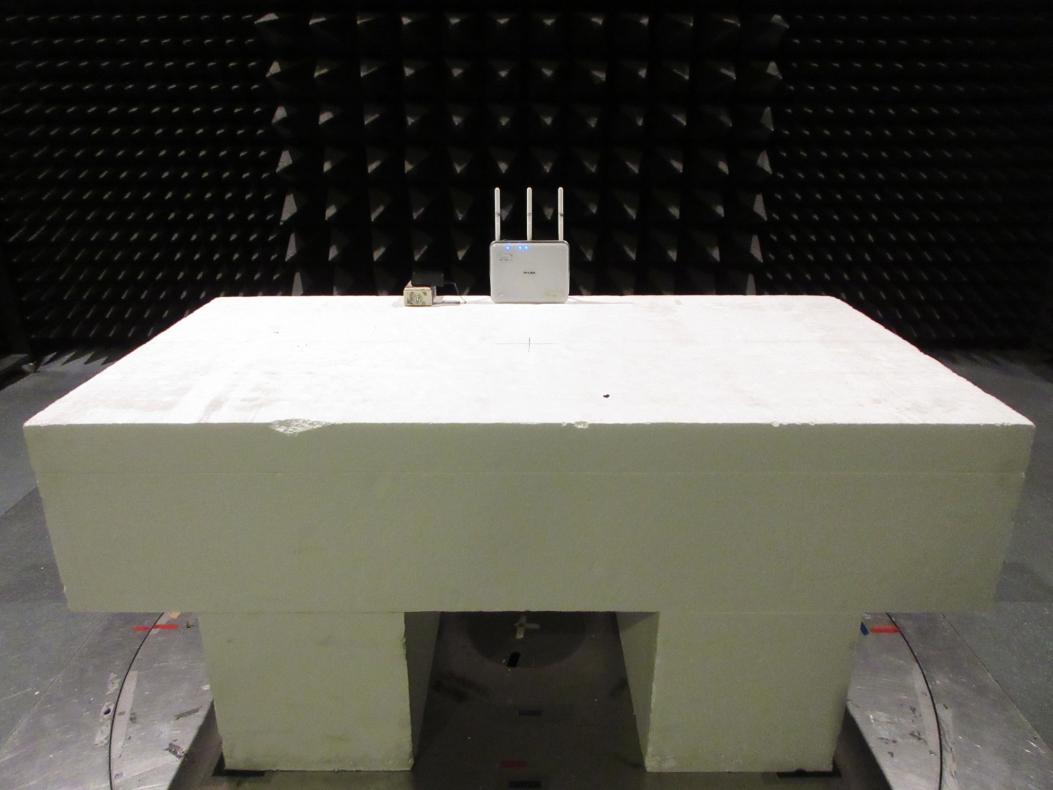

| Test Setup Photos | Test Setup Photos | 2015-11-17 | PDF 1.2 MB |
| Test Setup Photos 2.4G DTS | Test Setup Photos | 2015-11-17 | PDF 690.4 KB |
| Test Setup Photos 5.8G DTS | Test Setup Photos | 2015-11-17 | PDF 1.2 MB |
| Co Location Test Report | Test Report | 2015-11-17 | PDF 973.8 KB |
| Co Location Test Report Addendum | Test Report | 2015-11-17 | PDF 973.8 KB |
| Test Report 2.4G DTS | Test Report | 2015-11-17 | PDF 1.7 MB |
| Test Report 5.8G DTS | Test Report | 2015-11-17 | PDF 2.6 MB |
| Test Report NII | Test Report | 2015-11-17 | PDF 2.7 MB |
| Attestation Letter | Cover Letter(s) | 2016-05-18 | PDF 58.6 KB |
| Class II Permissive Change Letter | Cover Letter(s) | 2016-05-18 | PDF 77.6 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-05-18 | PDF 101 KB |
| POA | Cover Letter(s) | 2016-05-18 | PDF 85.1 KB |
| Ad Hoc Mode Function Declaration Letter | Cover Letter(s) | 2015-11-17 | PDF 102.3 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-11-17 | PDF 101.2 KB |
| DOC Letter | Cover Letter(s) | 2015-11-17 | PDF 62.3 KB |
| POA | Cover Letter(s) | 2015-11-17 | PDF 85.1 KB |
| RF Exposure MPE | RF Exposure Info | 2015-11-17 | PDF 58.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 83.7 KB | |
| Schematics Metadata only | Schematics | PDF 406 KB | |
| Operational Description Metadata only | Operational Description | PDF 1.9 MB | |
| Operational Description Software Security Metadata only | Operational Description | PDF 100.6 KB | |
| Operational Description Software Security Metadata only | Operational Description | PDF 100.7 KB |
Application Information
| Application ID | lEA/EEris7MBbJC6aSI6kw== |
|---|---|
| Final Action Date | 2016-05-18 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0013661145 |
| Model | C9V2 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | AC1900 Wireless Dual Band Gigabit Router |
| Responsible Party | Jing Huang, Regulatory Compliance Manager, certification@tp-link.com , 75521534921 |
| Test Firm | Alex Chen, SPORTON International Inc., alex@sporton.com.tw  , 886-3-327-3456 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 21 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| lEA/EEris7MBbJC6aSI6kw== | 2016-05-18 | Class II permissive change or modification of presently authorized equipment |
| r7NIivlhuv3Nd3eY+isRaQ== | 2015-11-17 | Original Equipment |
| ltrYa3bxoyE4SwV2YZTxAg== | 2015-11-17 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application r7NIivlhuv3Nd3eY+isRaQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 11/17/2015 Application Dated: 11/16/2015 |
| TP-Link Technologies Co., Ltd. |
| Building 24 (floors 1,3,4,5) and 28 (floors1-4), |
| Central Science and Technology Park,Nanshan |
| Shenzhen, 518057 China |
| Attention: Jing Huang , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TE7C9V2 |
| Name of Grantee: | TP-Link Technologies Co., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AC1900 Wireless Dual Band Gigabit Router |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 39 CC MO | 15E | 5180.0 - 5240.0 | 0.4645 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 21 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
| 39: | This sub-band complies with the new rules for U-NII devices adopted under Docket No. 13-49. This device may not be sold or marketed after June 1, 2016, unless all grant-listed U-NII sub-bands demonstrate compliance with Docket No. 13-49. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application r7NIivlhuv3Nd3eY+isRaQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China |
Date of Grant: 11/17/2015 Application Dated: 11/16/2015 |
| Attention: Jing Huang , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TE7C9V2 |
| Name of Grantee: | TP-Link Technologies Co., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AC1900 Wireless Dual Band Gigabit Router |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 39 CC MO | 15E | 5180.0 - 5240.0 | 0.4645 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 21 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
| 39: | This sub-band complies with the new rules for U-NII devices adopted under Docket No. 13-49. This device may not be sold or marketed after June 1, 2016, unless all grant-listed U-NII sub-bands demonstrate compliance with Docket No. 13-49. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 11/17/2015 Application Dated: 11/16/2015 |
| TP-Link Technologies Co., Ltd. |
| Building 24 (floors 1,3,4,5) and 28 (floors1-4), |
| Central Science and Technology Park,Nanshan |
| Shenzhen, 518057 China |
| Attention: Jing Huang , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TE7C9V2 |
| Name of Grantee: | TP-Link Technologies Co., Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | AC1900 Wireless Dual Band Gigabit Router |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.9886 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.9886 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 21 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes in 5.8GHz band and 20 and 40 MHz bandwidth modes in 2.4GHz band. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application ltrYa3bxoyE4SwV2YZTxAg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China |
Date of Grant: 11/17/2015 Application Dated: 11/16/2015 |
| Attention: Jing Huang , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TE7C9V2 |
| Name of Grantee: | TP-Link Technologies Co., Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | AC1900 Wireless Dual Band Gigabit Router |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.9886 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.9886 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 21 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes in 5.8GHz band and 20 and 40 MHz bandwidth modes in 2.4GHz band. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 05/18/2016 Application Dated: 05/17/2016 |
| TP-Link Technologies Co., Ltd. |
| Building 24 (floors 1,3,4,5) and 28 (floors1-4), |
| Central Science and Technology Park,Nanshan |
| Shenzhen, 518057 China |
| Attention: Jing Huang , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TE7C9V2 |
| Name of Grantee: | TP-Link Technologies Co., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AC1900 Wireless Dual Band Gigabit Router |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 49 CC MO | 15E | 5180.0 - 5240.0 | 0.4645 | ||
| 49 CC MO | 15E | 5745.0 - 5825.0 | 0.9886 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 21 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
| 49: | The device has been approved under § 15.407(b)(4)(ii) for antenna gains of 10 dBi or less and cannot be manufactured, marketed, sold or imported after March 2, 2020. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application lEA/EEris7MBbJC6aSI6kw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China |
Date of Grant: 05/18/2016 Application Dated: 05/17/2016 |
| Attention: Jing Huang , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TE7C9V2 |
| Name of Grantee: | TP-Link Technologies Co., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AC1900 Wireless Dual Band Gigabit Router |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 49 CC MO | 15E | 5180.0 - 5240.0 | 0.4645 | ||
| 49 CC MO | 15E | 5745.0 - 5825.0 | 0.9886 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 21 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
| 49: | The device has been approved under § 15.407(b)(4)(ii) for antenna gains of 10 dBi or less and cannot be manufactured, marketed, sold or imported after March 2, 2020. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
