FCC ID TE7RE590T
AC1900 Touch Screen Wi-Fi Range Extender
by TP-Link Technologies Co., Ltd.
Grantee Code: TE7 Product Code: RE590T
Latest application date: 2016-06-15
Device Images
FCC ID Device Details
| FCC ID | TE7RE590T |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | TE7 |
| Product Code | RE590T |
| Applicant Business | TP-Link Technologies Co., Ltd. 🇨🇳 |
| Related Domains |  tp-link.com  atl-lab.com.tw |
| Equipment Class | AC1900 Touch Screen Wi-Fi Range Extender |
| Test Firm | A Test Lab Techno Corp. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-06-15 |
| 5180-5240 MHz | Original Equipment | 2015-11-08 |
| 2412-2462 MHz | Original Equipment | 2015-11-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-11-08 | PDF 3 MB |
| Internal Photos | Internal Photos | 2015-11-08 | PDF 1.5 MB |
| External Photos | External Photos | 2015-11-08 | PDF 427.8 KB |
| FCC ID Label and Location | ID Label/Location Info | 2015-11-08 | PDF 2.7 MB |

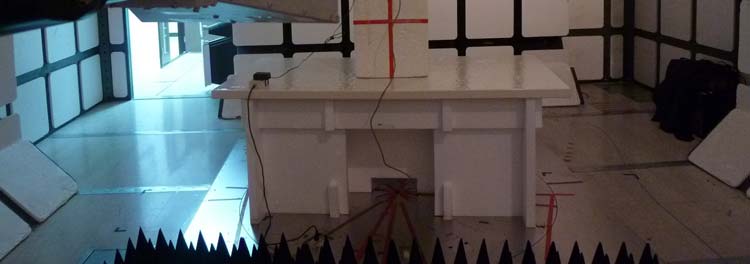

| Test Setup Photos for DTS | Test Setup Photos | 2015-11-08 | PDF 216.2 KB |
| 1509FR15-02_P15C WLAN (15-0737)_Part 1 | Test Report | 2016-06-15 | PDF 2.3 MB |
| 1509FR15-02_P15C WLAN (15-0737)_Part 2 | Test Report | 2016-06-15 | PDF 4.6 MB |
| 1509FR16-02_P15E U-NII (15-737) | Test Report | 2016-06-15 | PDF 1.3 MB |
| Test Report for DTS-1 | Test Report | 2015-11-08 | PDF 2.3 MB |
| Test Report for DTS-2 | Test Report | 2015-11-08 | PDF 5.1 MB |
| Test Report for DTS-3 | Test Report | 2015-11-08 | PDF 144.8 KB |
| Test Report for NII | Test Report | 2015-11-08 | PDF 1.3 MB |
| RE590T_Attestation letter | Cover Letter(s) | 2016-06-15 | PDF 41.6 KB |
| RE590T_C2PCrev | Cover Letter(s) | 2016-06-15 | PDF 64.8 KB |
| RE590T_FCC POA | Cover Letter(s) | 2016-06-15 | PDF 59.2 KB |
| RE590T_FCC confidentiality Request Letter | Cover Letter(s) | 2016-06-15 | PDF 84.9 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-11-08 | PDF 133.6 KB |
| Declaration Letter for Ad HoC | Cover Letter(s) | 2015-11-08 | PDF 119.5 KB |
| 1509FS19-01_IEEE C95.1 MPE (15-0737) | RF Exposure Info | 2016-06-15 | PDF 153.4 KB |
| MPE Report | RF Exposure Info | 2015-11-08 | PDF 153.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 154.3 KB | |
| Schematics Metadata only | Schematics | PDF 817.6 KB | |
| Operational Description-1 Metadata only | Operational Description | PDF 116.6 KB | |
| Operational Description-2 Metadata only | Operational Description | PDF 477.2 KB | |
| RE590T_Software_Information_Exhibit Metadata only | Operational Description | PDF 188 KB |
Application Information
| Application ID | 0r6V5Q35kRcACEYRy1VtgQ== |
|---|---|
| Final Action Date | 2016-06-15 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0013661145 |
| Model | RE590T |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | AC1900 Touch Screen Wi-Fi Range Extender |
| Responsible Party | Jing Huang, Regulatory Compliance Manager, certification@tp-link.com , 75521534921 |
| Technical Contact | Jack Chang, A Test Lab Techno Corp., jack.chang@atl-lab.com.tw , 03-271-0188 |
| Non-Technical Contact | victoria Xu, A Test Lab Techno Corp., jeff.wang@atl-lab.com.tw , 03-271-0188 |
| Test Firm | Fly LU, A Test Lab Techno Corp., fly@atl-lab.com.tw , 886-3-2710188 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II Permissive Change. Output Power listed is the maximum combined conducted output power as indicated in the filing. The device can be self-colocated with the composite DTS portion. This device and it's antenna(s) must be installed and used in fixed/mobile operating conditions and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with the FCC multi-transmitter policy. End-users and installers must be provided the transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device has 20, 40 and 80 MHz BW modes. Operation of this device is restricted to indoor use only. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 0r6V5Q35kRcACEYRy1VtgQ== | 2016-06-15 | Class II permissive change or modification of presently authorized equipment |
| REEhEuOlV7rw6CM0MmekwQ== | 2015-11-08 | Original Equipment |
| 9bGZefUfhwTRa9b2+rTuXA== | 2015-11-08 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application REEhEuOlV7rw6CM0MmekwQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PHOENIX TESTLAB GmbH Koenigswinkel 10 32825 Blomberg, Germany |
Date of Grant: 11/08/2015 Application Dated: 11/08/2015 |
| TP-Link Technologies Co., Ltd. |
| Building 24 (floors 1,3,4,5) and 28 (floors1-4), |
| Central Science and Technology Park,Nanshan |
| Shenzhen, 518057 China |
| Attention: Jing Huang , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TE7RE590T |
| Name of Grantee: | TP-Link Technologies Co., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AC1900 Touch Screen Wi-Fi Range Extender |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 39 CC MO | 15E | 5180.0 - 5240.0 | 0.479 | ||
| 39 CC MO | 15E | 5190.0 - 5230.0 | 0.855 | ||
| 39 CC MO | 15E | 5210.0 - 5210.0 | 0.095 |
| Output Power listed is the maximum combined conducted output power as indicated in the filing. The device can be self-colocated with the composite DTS portion. This device and it's antenna(s) must be installed and used in fixed/mobile operating conditions and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with the FCC multi-transmitter policy. End-users and installers must be provided the transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device has 20, 40 and 80 MHz BW modes. Operation of this device is restricted to indoor use only. |
| 39: | This sub-band complies with the new rules for U-NII devices adopted under Docket No. 13-49. This device may not be sold or marketed after June 1, 2016, unless all grant-listed U-NII sub-bands demonstrate compliance with Docket No. 13-49. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application REEhEuOlV7rw6CM0MmekwQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen, 518057 China |
Date of Grant: 11/08/2015 Application Dated: 11/08/2015 |
| Attention: Jing Huang , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TE7RE590T |
| Name of Grantee: | TP-Link Technologies Co., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AC1900 Touch Screen Wi-Fi Range Extender |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 39 CC MO | 15E | 5180.0 - 5240.0 | 0.479 | ||
| 39 CC MO | 15E | 5190.0 - 5230.0 | 0.855 | ||
| 39 CC MO | 15E | 5210.0 - 5210.0 | 0.095 |
