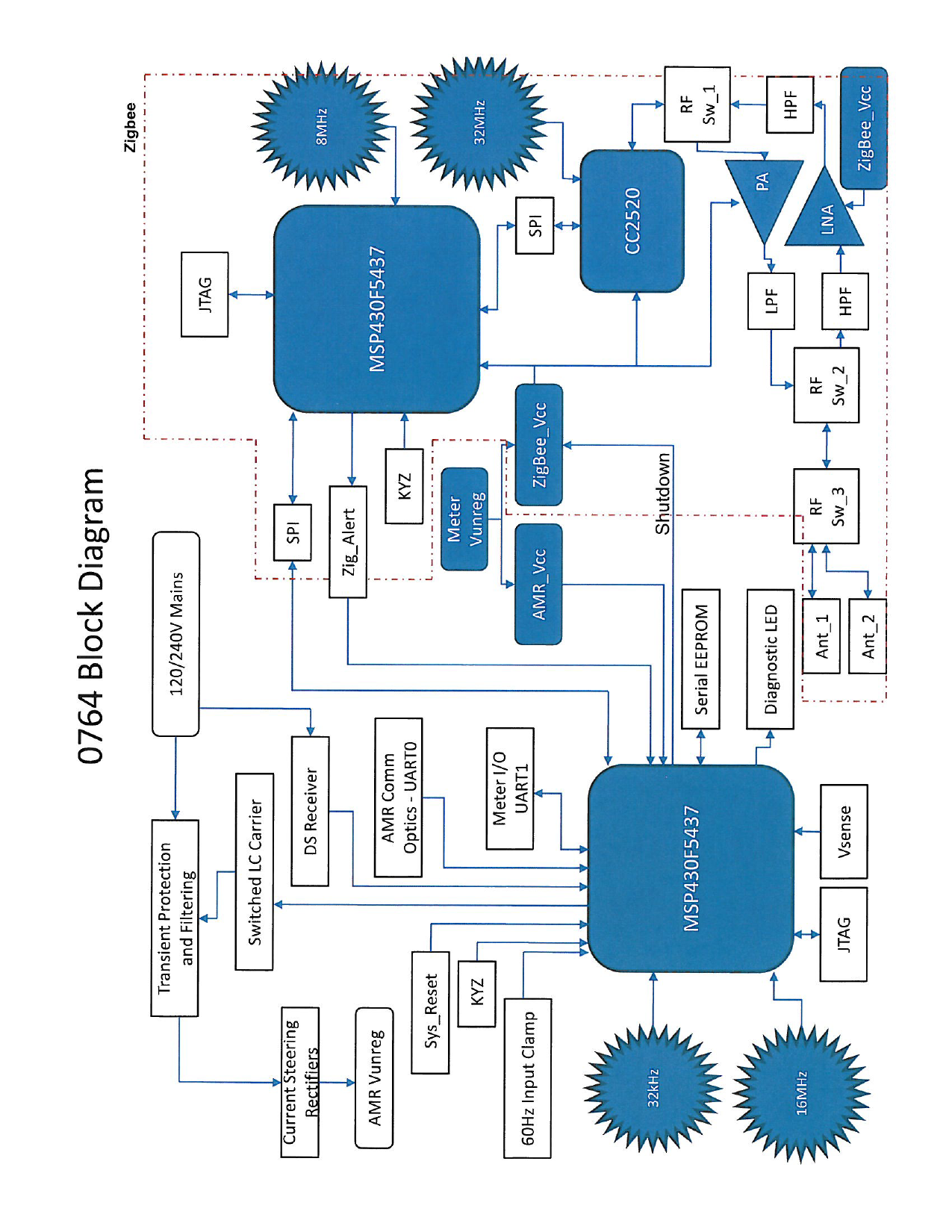

HUNTTS764 TS2 Focus AX Block Diagram - FCC ID TEB-HUNTTS764

FCC ID TEB-HUNTTS764

Block Diagram

TS2 Focus AX

by Landis+Gyr Technologies, LLC

Document preview loads when visible.

Document Details

FCC IDTEB-HUNTTS764
Document ID1152116
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantLandis+Gyr Technologies, LLC
Equipment ClassTS2 Focus AX
Product CodeHUNTTS764
Application IDVTAgmNMA/5mFtuW1FGtfxg==
Application PurposeOriginal Equipment
Application Date2009-09-16
Frequency Range2405-2480 MHz
FRN0013591094
Test FirmTUV SUD America - Product Service
Certified ByRoger Gordon Latimer Test Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2009-08-11
Available2009-09-16
Created2009-07-31
Modified2009-09-16
Pages1
File TypeAdobe Acrobat PDF
File Size342090
File SHA-256ca42f1cbd0175283b74ca710749d658f59fd68f4ac95d9b3d1efafebd7a10da2
PDF Metadata AuthorNone
PDF Metadata CreatorKMBT_C353
PDF Metadata ProducerKONICA MINOLTA bizhub C353
FCC.gov SourcesFCC.gov 1152116
