T433CTG TRANSMITTER Schematics - FCC ID TG6T433CTG

FCC ID TG6T433CTG

Schematics

TRANSMITTER

by Remote Control Solutions, LLC

Document preview loads when visible.

Document Details

FCC IDTG6T433CTG
Document ID575339
Document TypeSchematics
DescriptionSchematics

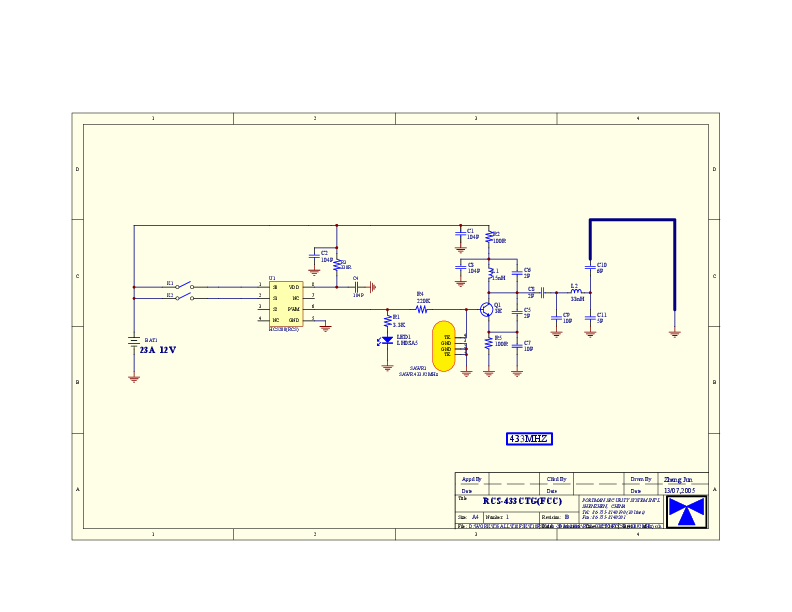

Document TitleProtel Schematic
ApplicantRemote Control Solutions, LLC
Equipment ClassTRANSMITTER
Product CodeT433CTG
Application ID4SncRaBpy2/kdvB5P4rW+g==
Application PurposeOriginal Equipment
Application Date2005-08-26
Frequency Range433.92 MHz
FRN0013749445
Test FirmSGS Taiwan Ltd.
Certified ByBen Scanlan Pres
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-08-26
Available2005-08-26
Created2005-07-29
Modified2005-08-12
Pages1
File TypeAdobe Acrobat PDF
File Size85034
File SHA-25631bb2fa8f601eb7e4e190f1b8b6741d97aef1ac1ade18cae9634df071821261f
PDF Metadata Authorlingk
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows) lingk
FCC.gov SourcesFCC.gov 575339
