MA100 2.4GHz Bluetooth Dongle Block Diagram - FCC ID TIQ-MA100
FCC ID TIQ-MA100

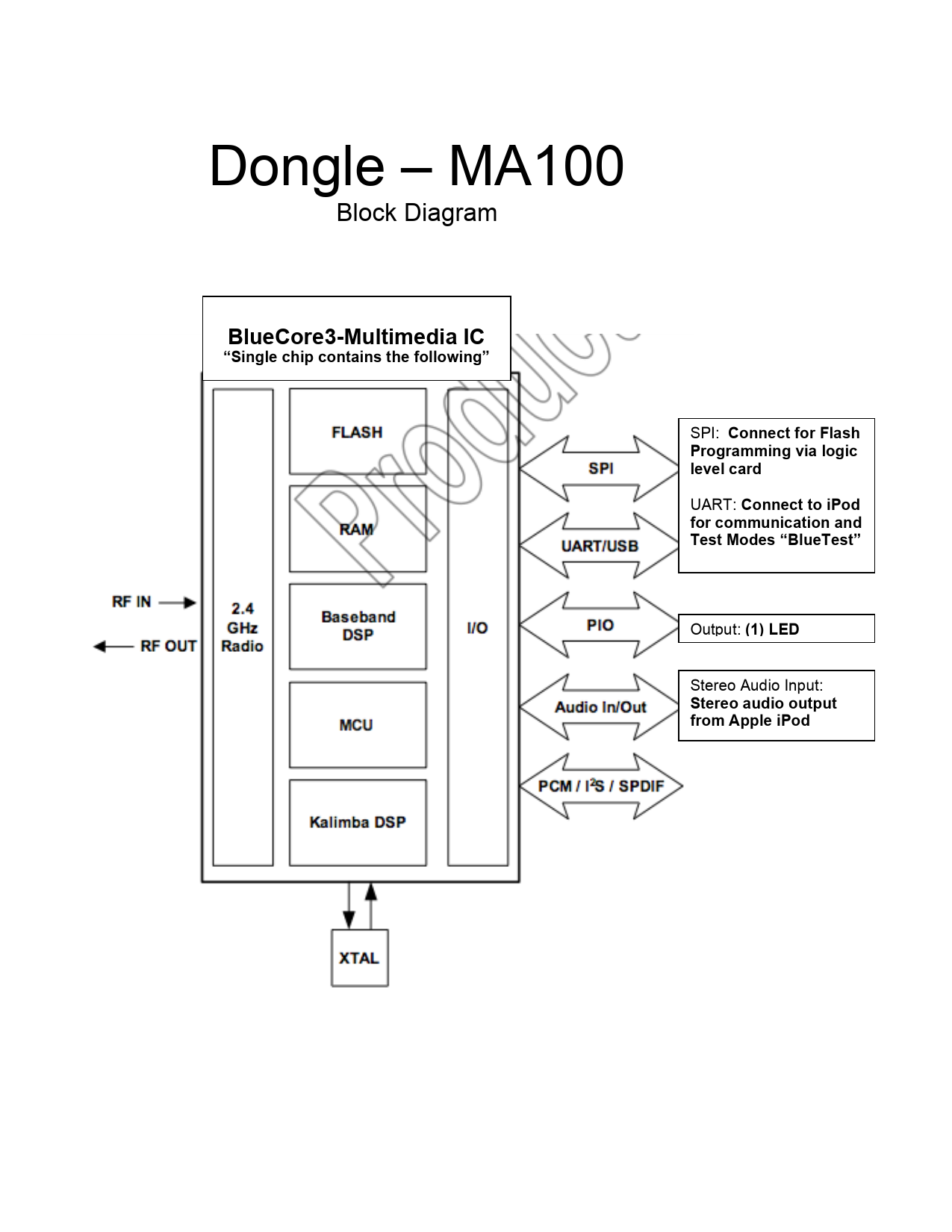

Block Diagram
2.4GHz Bluetooth Dongle
by Wi-Gear Inc.
Document preview loads when visible.
Document Details
| FCC ID | TIQ-MA100 |
|---|---|
| Document ID | 582511 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | blockdiagram1 |
| Applicant | Wi-Gear Inc. |
| Equipment Class | 2.4GHz Bluetooth Dongle |
| Product Code | MA100 |
| Application ID | z89PygmEVzzCPp+xxuTokQ== |
| Application Purpose | Original Equipment |
| Application Date | 2005-09-14 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0004265807 |
| Test Firm | Bay Area Compliance Laboratory |
| Certified By | Mark Pundsack |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-09-15 |
| Available | 2005-09-14 |
| Created | 2005-07-25 |
| Modified | 2005-08-31 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 75642 |
| File SHA-256 | 6a89108d02ada18b72b08281fd0f2a8cf499c447d5fca83f028b7daf7e5b107d |
| PDF Metadata Author | mk |
| PDF Metadata Producer | Mac OS X 10.4.2 Quartz PDFContext mk |
| FCC.gov Sources | FCC.gov 582511 |
