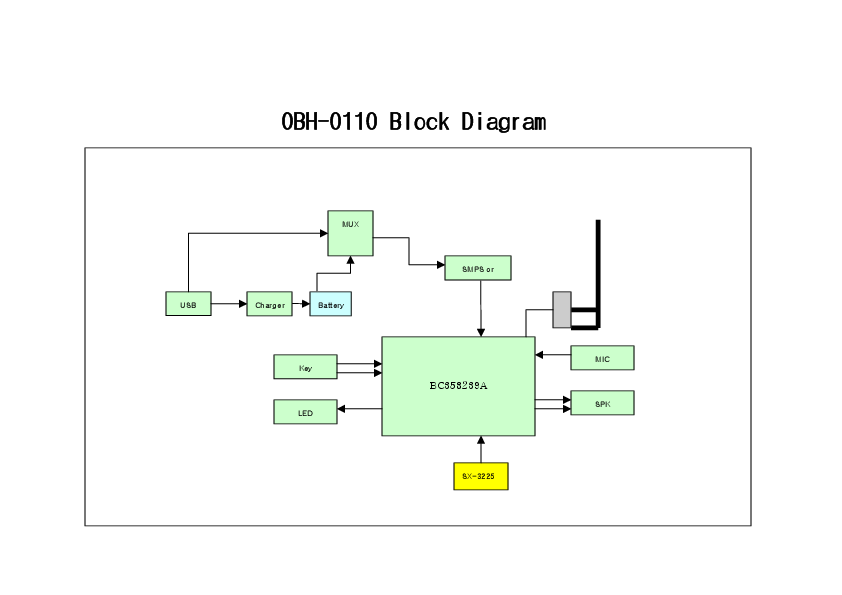

OBH0110 Bluetooth Stereo Headset Block Diagram - FCC ID TJK-OBH0110

FCC ID TJK-OBH0110

Block Diagram

Bluetooth Stereo Headset

by OPENBRAIN Technologies Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDTJK-OBH0110
Document ID596529
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleOBH-0110 블록도 및 동작 설명서_CEFCC_IC_
ApplicantOPENBRAIN Technologies Co., Ltd.
Equipment ClassBluetooth Stereo Headset
Product CodeOBH0110
Application ID2JIfhwYNUXHEowcg7NShAw==
Application PurposeOriginal Equipment
Application Date2005-10-27
Frequency Range2402-2480 MHz
FRN0013863840
Test FirmSK Tech Co., LTD.
Certified ByJae-Kyung, Bae Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-10-27
Available2005-10-27
Created2005-09-15
Modified2005-09-15
Pages1
File TypeAdobe Acrobat PDF
File Size100576
File SHA-256c0c4298e53a3b9271a01d95e8701f20bfbcf5e35767739fc3c04b4b5eaaf1b11
PDF Metadata Authorpttno3
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows) pttno3
FCC.gov SourcesFCC.gov 596529
