FCC ID TK4WLE200NX
WIRELESS-ABGN 2X2 NETWORK MINIPCIE ADAPTER
by Compex Systems Pte Ltd
Grantee Code: TK4 Product Code: WLE200NX
Latest application date: 2016-09-21
Device Images
FCC ID Device Details
| FCC ID | TK4WLE200NX |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | TK4 |
| Product Code | WLE200NX |
| Applicant Business | Compex Systems Pte Ltd 🇸🇬 |
| Related Domains |  compex.com.sg |
| Equipment Class | WIRELESS-ABGN 2X2 NETWORK MINIPCIE ADAPTER |
| Test Firm | MRT Technology (Suzhou) Co., Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-09-21 |
| 2412-2462 MHz | Original Equipment | 2016-09-21 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

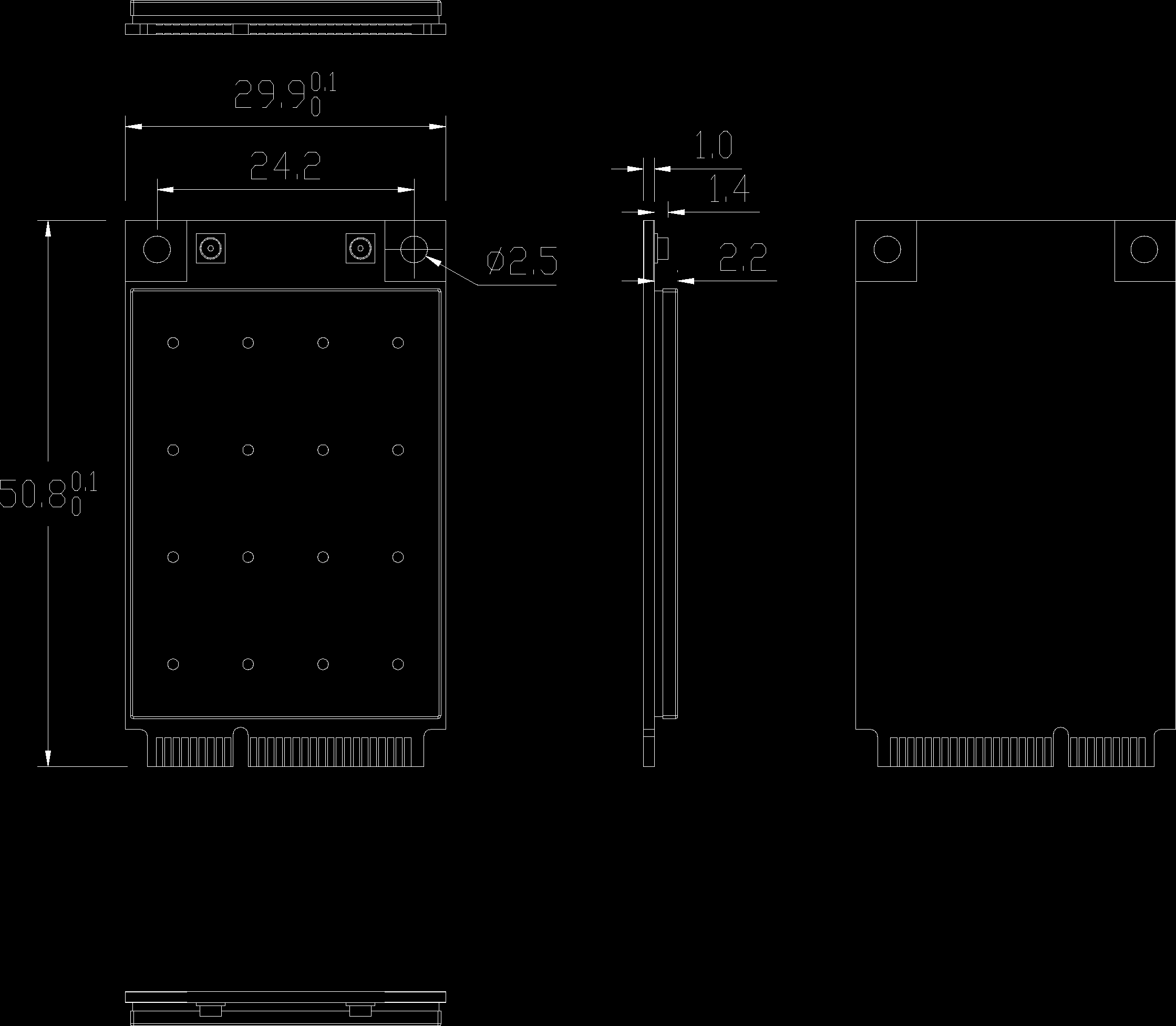

| WLE200NX-User Manual | Users Manual | 2016-09-21 | PDF 766.5 KB |
| 1608RSU020_Internal Photo | Internal Photos | 2016-09-21 | PDF 295.8 KB |
| 1608RSU020_External Photo | External Photos | 2016-09-21 | PDF 237.6 KB |

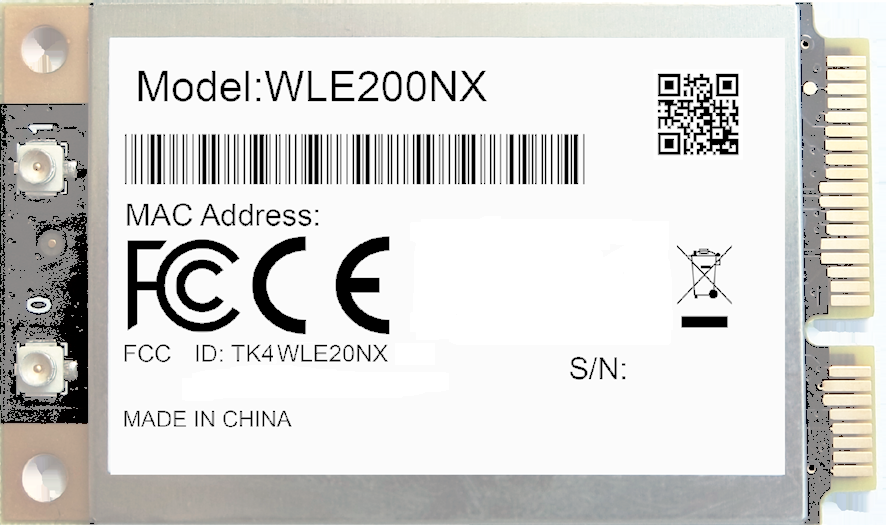

| WLE200NX_Label Location and Label | ID Label/Location Info | 2016-09-21 | PDF 187.8 KB |

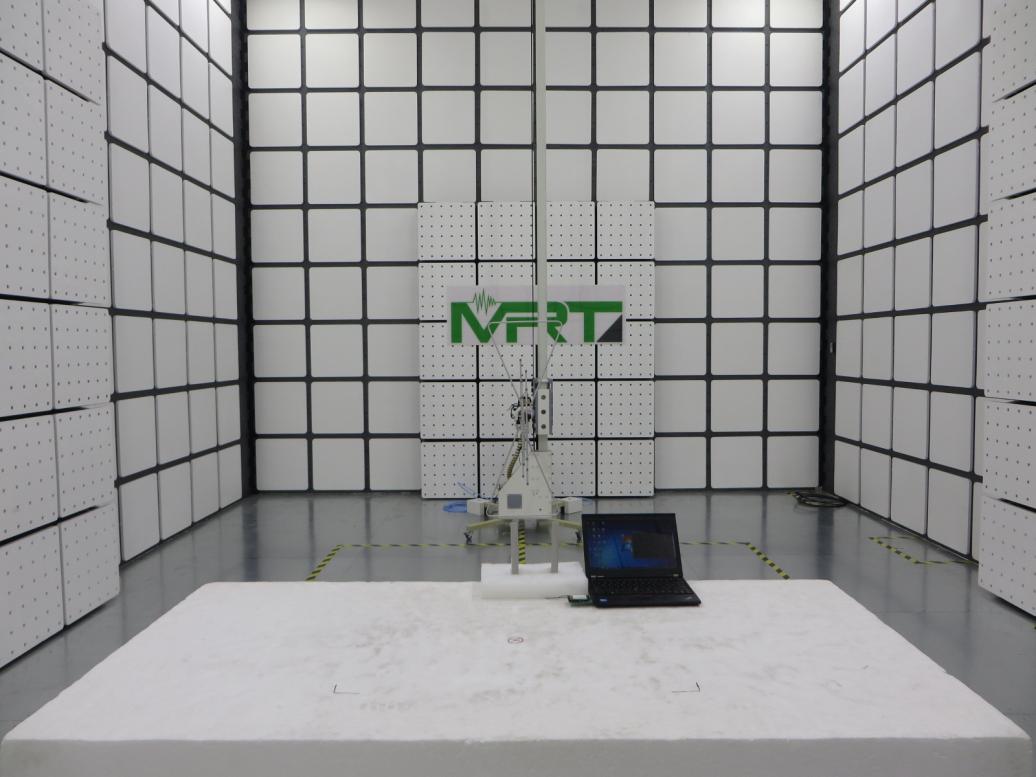

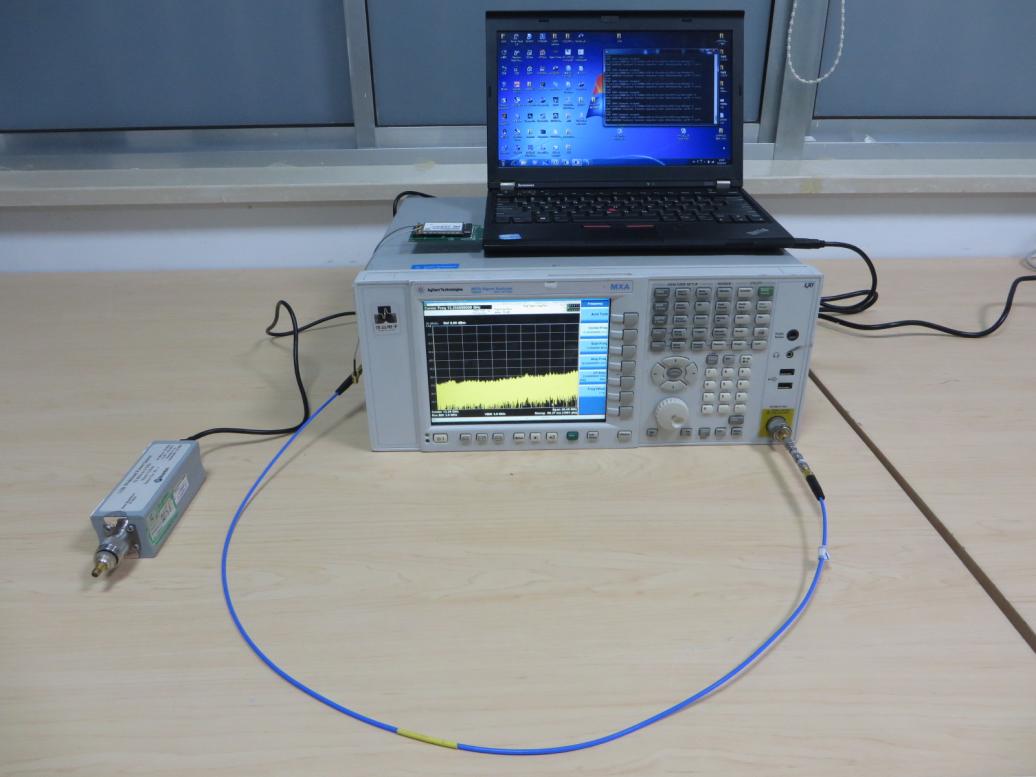

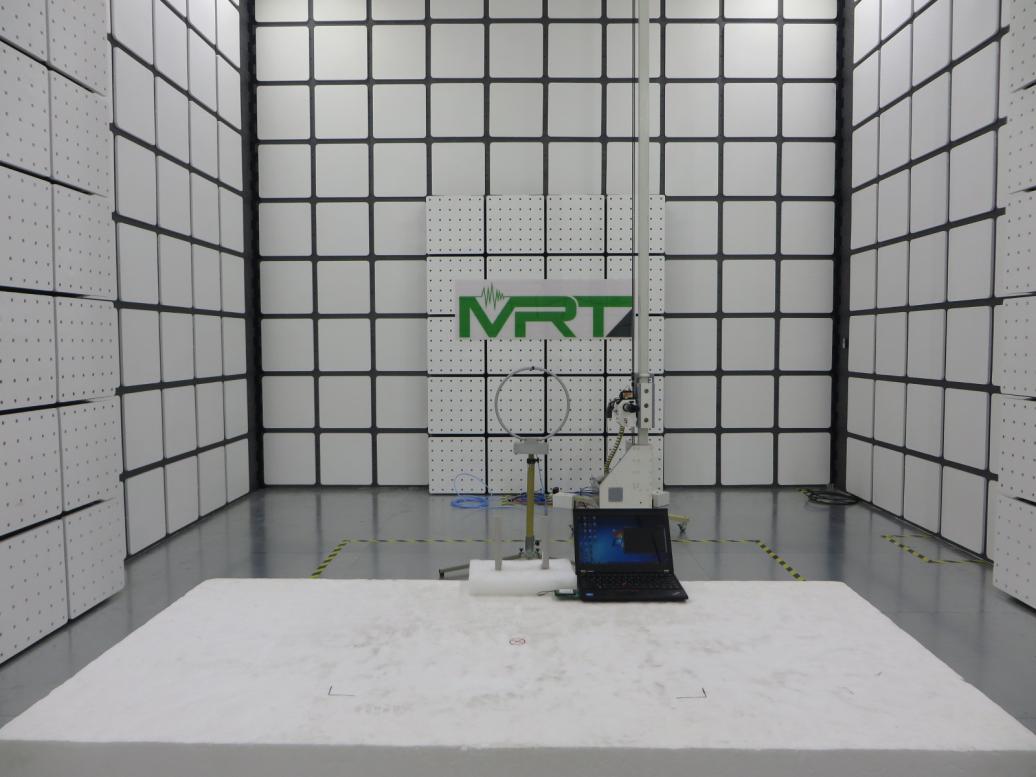

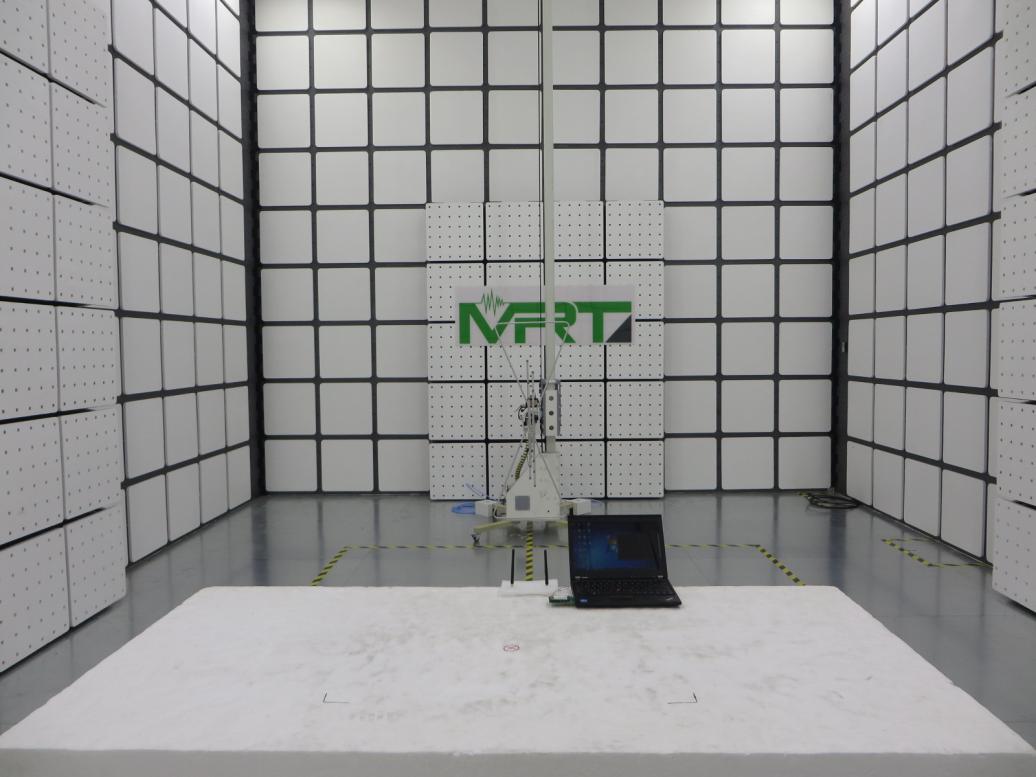

| 1608RSU020_Test Setup Photo | Test Setup Photos | 2016-09-21 | PDF 857.4 KB |
| 1608RSU02001-FCC-DTS Report Part1 | Test Report | 2016-09-21 | PDF 5.4 MB |
| 1608RSU02001-FCC-DTS Report Part2 | Test Report | 2016-09-21 | PDF 5.4 MB |
| 1608RSU02001-FCC-DTS Report Part3 | Test Report | 2016-09-21 | PDF 3.2 MB |
| 1608RSU02002-FCC-UNII Report Part1 | Test Report | 2016-09-21 | PDF 5.5 MB |
| 1608RSU02002-FCC-UNII Report Part2 | Test Report | 2016-09-21 | PDF 5.6 MB |
| 1608RSU02002-FCC-UNII Report Part3 | Test Report | 2016-09-21 | PDF 5.2 MB |
| 1608RSU02003-FCC-DFS Report | Test Report | 2016-09-21 | PDF 1.4 MB |
| WLE200NX_FCC 15B Attestation_signed | Cover Letter(s) | 2016-09-21 | PDF 13.5 KB |
| WLE200NX_Authority Letters_signed | Cover Letter(s) | 2016-09-21 | PDF 829.5 KB |
| WLE200NX_Confidentiality Letters_signed | Cover Letter(s) | 2016-09-21 | PDF 829.5 KB |
| WLE200NX_Declaration Letter_signed | Cover Letter(s) | 2016-09-21 | PDF 270.2 KB |
| WLE200NX_FCC_Declaration letter for model_signed | Cover Letter(s) | 2016-09-21 | PDF 92.1 KB |
| WLE200NX_Module approval cover letter_signed | Cover Letter(s) | 2016-09-21 | PDF 310.4 KB |
| 1608RSU02004-RF Exposure Report | RF Exposure Info | 2016-09-21 | PDF 221.2 KB |
| Confidential_WLE200NX_Block Diagram Metadata only | Block Diagram | PDF 63.1 KB | |
| Confidential_WLE200NX_Schematic Metadata only | Schematics | PDF 60.4 KB | |
| Confidential_WLE200NX_Operation Description Metadata only | Operational Description | PDF 689.8 KB | |
| Dipole Antenna Metadata only | Operational Description | PDF 4.6 MB |
Application Information
| Application ID | wkAYg0i35TqrCQD4VPDteA== |
|---|---|
| Final Action Date | 2016-09-21 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0013908165 |
| Model | WLE200NX |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WIRELESS-ABGN 2X2 NETWORK MINIPCIE ADAPTER |
| Responsible Party | Yaw Thiam Teng, R&D; Software Manager, tt_yaw@compex.com.sg , (65)62862086 |
| Agent | Robin Robin Robin, MRT Technology (Suzhou) Co., Ltd, robinwu@mrt-cert.com  , 86-512-66308358 |
| Technical Contact | Robin Wu, MRT Technology (Suzhou) Co., Ltd, robinwu@mrt-cert.com , 86-512-66308358 |
| Test Firm | Wu Jian, MRT Technology (Suzhou) Co., Ltd, robinwu@mrt-cert.com , 86-512-66308358 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Modular Approval. This device is granted for use in Mobile only configurations in which the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Power output is conducted. The device is a 802.11 an device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. This device has 20 MHz and 40 MHz bandwidth modes. It contains 2.4G WLAN transmitter. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| wkAYg0i35TqrCQD4VPDteA== | 2016-09-21 | Original Equipment |
| 0UXIvDqzMljW0U+k1bjP0A== | 2016-09-21 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application wkAYg0i35TqrCQD4VPDteA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 09/21/2016 Application Dated: 09/20/2016 |
| Compex Systems Pte Ltd |
| No 9 Harrison Road, Harrison Industrial Building |
| #05-01 |
| Singapore, 369651 Singapore |
| Attention: Yaw Thiam Teng , R&D Software Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TK4WLE200NX |
| Name of Grantee: | Compex Systems Pte Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | WIRELESS-ABGN 2X2 NETWORK MINIPCIE ADAPTER |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.1742 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.177 | ||
| 38 CC MO ND | 15E | 5500.0 - 5700.0 | 0.1734 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.1459 |
| Modular Approval. This device is granted for use in Mobile only configurations in which the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Power output is conducted. The device is a 802.11 an device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. This device has 20 MHz and 40 MHz bandwidth modes. It contains 2.4G WLAN transmitter. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application wkAYg0i35TqrCQD4VPDteA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Compex Systems Pte Ltd No 9 Harrison Road, Harrison Industrial Building #05-01 Singapore, 369651 Singapore |
Date of Grant: 09/21/2016 Application Dated: 09/20/2016 |
| Attention: Yaw Thiam Teng , R&D Software Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TK4WLE200NX |
| Name of Grantee: | Compex Systems Pte Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | WIRELESS-ABGN 2X2 NETWORK MINIPCIE ADAPTER |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.1742 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.177 | ||
| 38 CC MO ND | 15E | 5500.0 - 5700.0 | 0.1734 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.1459 |
| Modular Approval. This device is granted for use in Mobile only configurations in which the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Power output is conducted. The device is a 802.11 an device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. This device has 20 MHz and 40 MHz bandwidth modes. It contains 2.4G WLAN transmitter. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
