CSLAA 2 Bottle Wine Bar (27.145MHz... - FCC ID TLN-CSLAA

FCC ID TLN-CSLAA

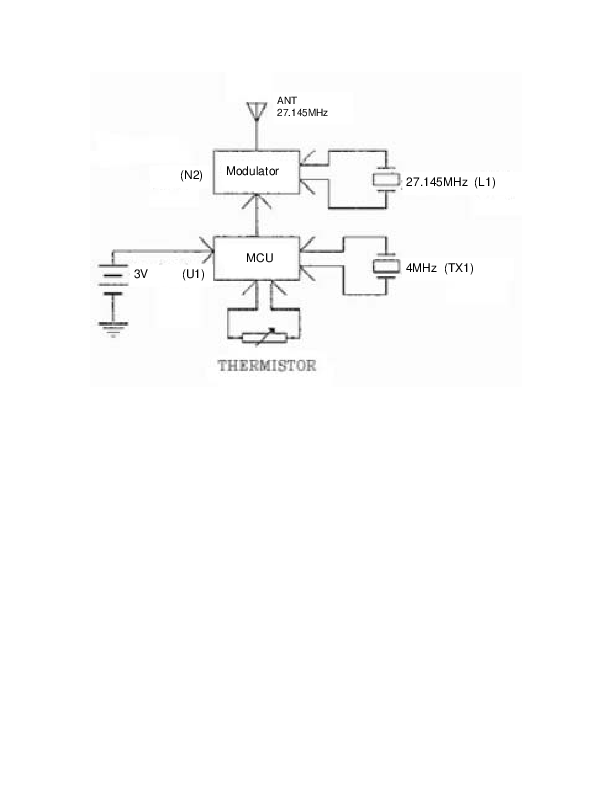

Block Diagram

2 Bottle Wine Bar (27.145MHz Transmitter)

by Concept Solutions Ltd

Document preview loads when visible.

Document Details

FCC IDTLN-CSLAA
Document ID718053
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantConcept Solutions Ltd
Equipment Class2 Bottle Wine Bar (27.145MHz Transmitter)
Product CodeCSLAA
Application IDUmhy/na+iDAdzucQJkpgKQ==
Application PurposeOriginal Equipment
Application Date2006-10-19
Frequency Range27.145 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByBilly Chow Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-10-19
Available2006-10-19
Created2006-10-12
Modified2006-10-12
Pages1
File TypeAdobe Acrobat PDF
File Size31235
File SHA-2561a8bbe2f425b554cb670ff7b5df314575a3d553612bf12676dbdfad569c25dda
PDF Metadata AuthorIntertek Testing Services HK Ltd Mark x473
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows) Mark x473
FCC.gov SourcesFCC.gov 718053
