MCA8030 MCA8030 Booster Amplifier Block Diagram - FCC ID TPBMCA8030

FCC ID TPBMCA8030

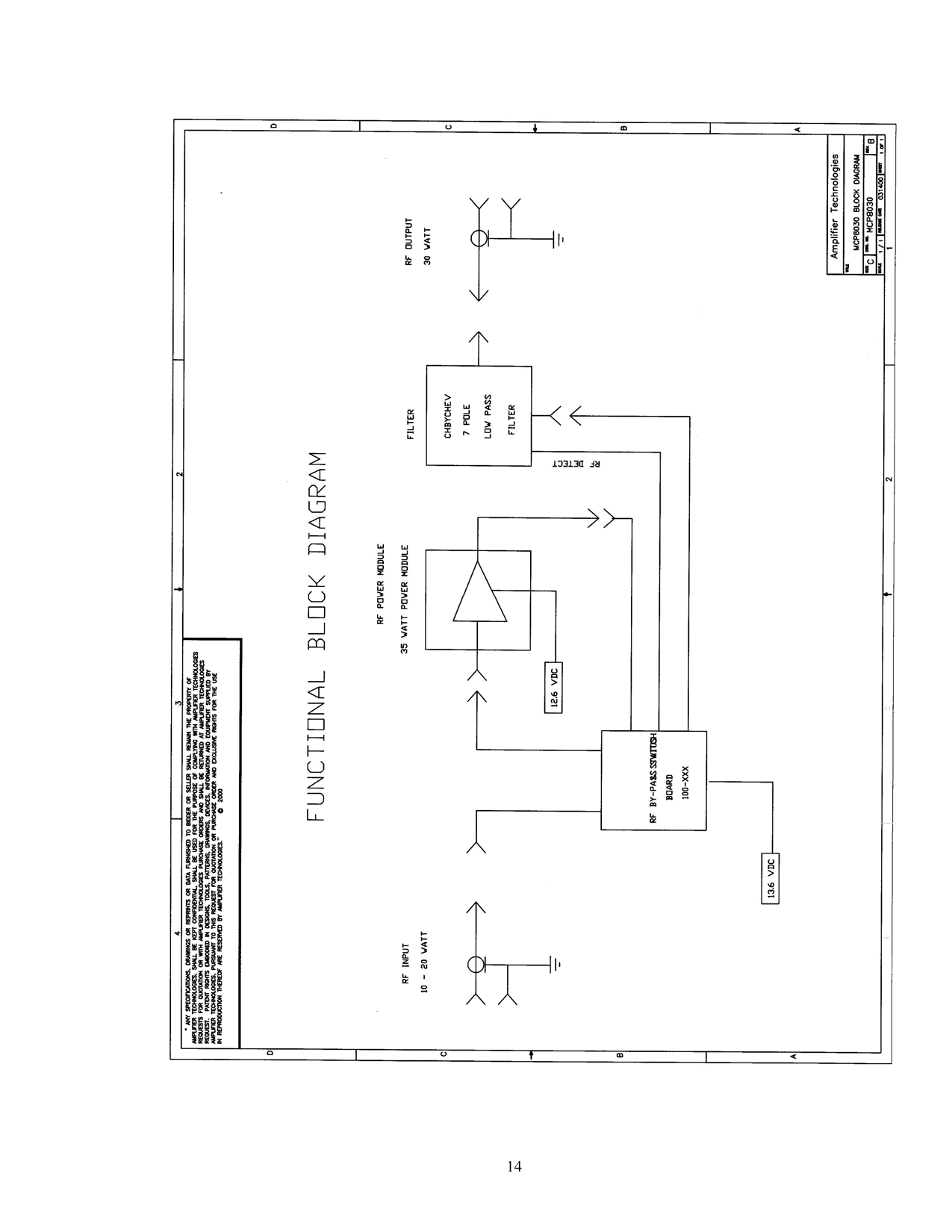

Block diagram

MCA8030 Booster Amplifier

by Union Pacific Corporation

Document preview loads when visible.

Document Details

FCC IDTPBMCA8030
Document ID1003047
Document TypeBlock Diagram
DescriptionBlock diagram
Document TitleMCA FCC 2007
ApplicantUnion Pacific Corporation
Equipment ClassMCA8030 Booster Amplifier
Product CodeMCA8030
Application ID0oOyoBTAbeuJ1cm68Vb59w==
Application PurposeOriginal Equipment
Application Date2008-09-20
Frequency Range896-938 MHz
FRN0001539048
Certified ByNic Johnson
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2008-09-18
Available2008-09-20
Created2007-07-02
Modified2007-07-02
Pages4
File TypeAdobe Acrobat PDF
File Size818013
File SHA-2568f6c4ae3d9f1ed8a8a4f5ae53195c71aa6ee0a2f42a5ac0cb1ce41392bf4bd15
PDF Metadata AuthorIcom718
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Elements 7.0.5 (Windows)
FCC.gov SourcesFCC.gov 1003047
