YWGITR5678902 RFID READER Block Diagram - FCC ID TQ4YWGIT-R5678902

FCC ID TQ4YWGIT-R5678902

BLOCK DIAGRAM

RFID READER

by Invengo Information Technology Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDTQ4YWGIT-R5678902
Document ID693644
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM

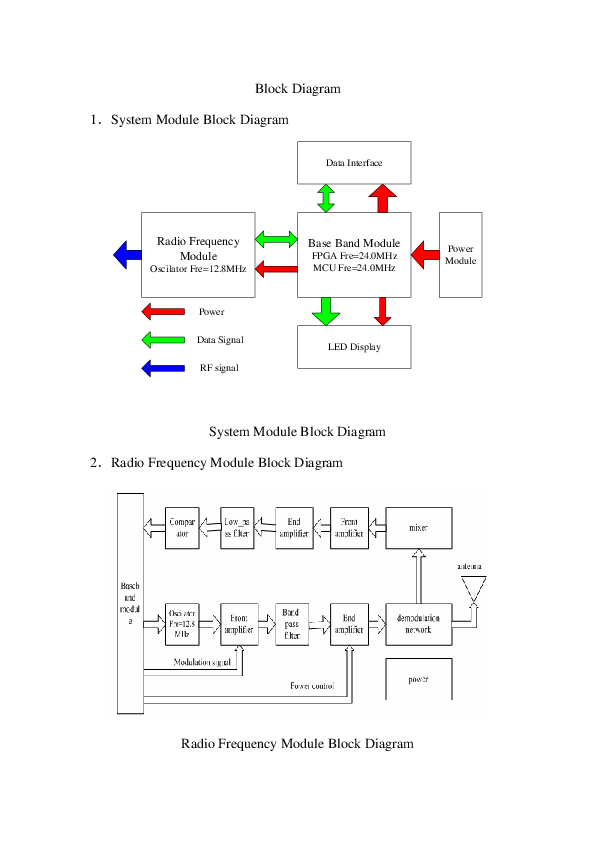

Document TitleXCRF-502C Reader Block Diagram
ApplicantInvengo Information Technology Co., Ltd.
Equipment ClassRFID READER
Product CodeYWGITR5678902
Application IDk+kKm1IxSyOqhKJYU2qW9g==
Application PurposeOriginal Equipment
Application Date2006-08-15
Frequency Range902.5-927.5 MHz
FRN0014194518
Test FirmShenzhen Huatongwei International Insp. Co., Ltd
Certified ByYIQING WEN SENIOR ENGINEER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-08-15
Available2006-08-15
Created2006-08-04
Modified2006-08-04
Pages2
File TypeAdobe Acrobat PDF
File Size41117
File SHA-25641d909a6bb72a453f2fa60f686706cebd82a73fc711344e8e1ec2d78fc062047
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAcrobat Distiller 7.0.5 (Windows) Administrator
FCC.gov SourcesFCC.gov 693644
