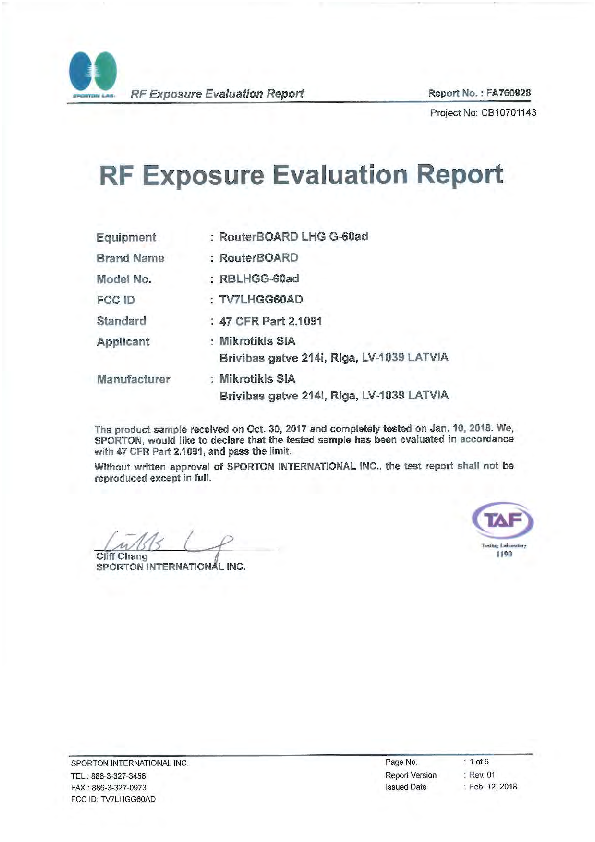

Page 1 of LHGG60AD RouterBOARD LHG G-60ad RF Exposure Info FCC MPE Test Report_FA760928 Mikrotikls SIA
Page 2 of LHGG60AD RouterBOARD LHG G-60ad RF Exposure Info FCC MPE Test Report_FA760928 Mikrotikls SIA
Page 3 of LHGG60AD RouterBOARD LHG G-60ad RF Exposure Info FCC MPE Test Report_FA760928 Mikrotikls SIA
Page 4 of LHGG60AD RouterBOARD LHG G-60ad RF Exposure Info FCC MPE Test Report_FA760928 Mikrotikls SIA
Page 5 of LHGG60AD RouterBOARD LHG G-60ad RF Exposure Info FCC MPE Test Report_FA760928 Mikrotikls SIA
Page 6 of LHGG60AD RouterBOARD LHG G-60ad RF Exposure Info FCC MPE Test Report_FA760928 Mikrotikls SIA

RF Exposure Evaluation Report
Report No. : FA760928
TABLE OF CONTENTS
GENERAL DESCRIPTION ....................................................................................................................4
1.1
EUT General Information .......................................................................................................................4
1.2
Testing Location .....................................................................................................................................4
MAXIMUM PERMISSIBLE EXPOSURE ...............................................................................................5
2.1
Limit of Maximum Permissible Exposure ...............................................................................................5
2.2
MPE Calculation Method........................................................................................................................5
2.3
Calculated Result and Limit....................................................................................................................6
PHOTOGRAPHS OF EUT V01
SPORTON INTERNATIONAL INC.
Page No.
: 2 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Feb. 12, 2018
FCC ID: TV7LHGG60AD
RF Exposure Evaluation Report
Report No. : FA760928
REVISION HISTORY
REPORT NO.
VERSION
DESCRIPTION
ISSUED DATE
FA760928
Rev. 01
Initial issue of report
Feb. 12, 2018
SPORTON INTERNATIONAL INC.
Page No.
: 3 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Feb. 12, 2018
FCC ID: TV7LHGG60AD
RF Exposure Evaluation Report
General Description
1.1
EUT General Information
Report No. : FA760928
The Channel Plan(s)
Evaluation
Frequency
Operating
Mode
Range
Frequency (GHz)
Modulation Type
58.32 GHz
60GHz
57-71 GHz
60.48 GHz
 / 2  BPSK ,  / 2  QPSK ,  / 2  16QAM
62.64 GHz
1.2
Testing Location
Testing Location
HWA YA
JHUBEI
ADD
No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C.
TEL
886-3-327-3456
ADD
No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C.
TEL
886-3-656-9065
FAX
FAX
886-3-327-0973
886-3-656-9085
SPORTON INTERNATIONAL INC.
Page No.
: 4 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Feb. 12, 2018
FCC ID: TV7LHGG60AD
RF Exposure Evaluation Report
Report No. : FA760928
Maximum Permissible Exposure
2.1
Limit of Maximum Permissible Exposure
(A) Limits for Occupational / Controlled Exposure
Frequency Range
(MHz)
Electric Field
Strength (E) (V/m)
Magnetic Field
Strength (H) (A/m)
Power Density (S)
(mW/ cm²)
Averaging Time
|E|²,|H|² or S
(minutes)
0.3-3.0
614
1.63
(100)*
3.0-30
1842 / f
4.89 / f
(900 / f)*
30-300
61.4
0.163
1.0
300-1500
F/300
1500-100,000
(B) Limits for General Population / Uncontrolled Exposure
Frequency Range
(MHz)
Electric Field
Strength (E) (V/m)
Magnetic Field
Strength (H) (A/m)
Power Density (S)
(mW/ cm²)
Averaging Time
|E|²,|H|² or S
(minutes)
0.3-1.34
614
1.63
(100)*
30
1.34-30
824/f
2.19/f
(180/f)*
30
30-300
27.5
0.073
0.2
30
300-1500
F/1500
30
1500-100,000
1.0
30
Note: f = frequency in MHz ; *Plane-wave equivalent power density
2.2
MPE Calculation Method
The MPE was calculated at 51 cm to show compliance with the power density limit.
The following formula was used to calculate the Power Density:
E (V/m) =
30  P  G
Power Density:
Pd (W/m²) =
E2
377
E = Electric field (V/m)
P = RF output power (W)
G = EUT Antenna numeric gain (numeric)
d = Separation distance between radiator and human body (m)
The formula can be changed to
Pd =
30  P  G
377  d 2
SPORTON INTERNATIONAL INC.
Page No.
: 5 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Feb. 12, 2018
FCC ID: TV7LHGG60AD
RF Exposure Evaluation Report
2.3
Report No. : FA760928
Calculated Result and Limit
Exposure Environment
General Population / Uncontrolled Exposure
Separation Distance (cm)
51
Tune-up
Tune-up
Average
Average
EIRP
EIRP
Power
Power
(dBm)
(mW)
45.02
31747.27
Average
Power
Maximum EIPR Power of
Ant. Gain
EIRP
Test Frequency
(dBi)
Power
Tolerance
(dB)
(GHz)
60.48
GHz
42
44.52
0.50
(mW/cm²)
(mW/cm²)
0.972
1.00
Density
(dBm)
MRP
(S)
Limit of
Power
Density
(S)
SPORTON INTERNATIONAL INC.
Page No.
: 6 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Feb. 12, 2018
FCC ID: TV7LHGG60AD
