FCC ID TVE-28166022
Secured Wireless Access Point
by Fortinet Inc.
Grantee Code: TVE Product Code: 28166022
Latest application date: 2017-03-16
Device Images
FCC ID Device Details
| FCC ID | TVE-28166022 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | TVE |
| Product Code | 28166022 |
| Applicant Business | Fortinet Inc. 🇺🇸 |
| Related Domains |  fortinet.com |
| Equipment Class | Secured Wireless Access Point |
| Test Firm | SPORTON International Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2017-03-16 |
| 2412-2462 MHz | Original Equipment | 2016-08-23 |
| 5180-5240 MHz | Original Equipment | 2016-08-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

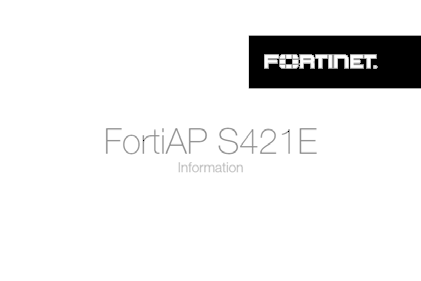

| User Manual 2 | Users Manual | 2017-03-16 | PDF 1.3 MB |
| Users Manual 1 | Users Manual | 2017-03-16 | PDF 1.3 MB |
| Quick Start Guide 1 | Users Manual | 2016-08-23 | PDF 1.3 MB |
| Quick Start Guide 2 | Users Manual | 2016-08-23 | PDF 1.4 MB |
| Int Photos | Internal Photos | 2016-08-23 | PDF 3.5 MB |
| Ext Photos | External Photos | 2016-08-23 | PDF 692.2 KB |
| FCC ID Label | ID Label/Location Info | 2017-03-16 | PDF 274.9 KB |
| FCC ID Label | ID Label/Location Info | 2016-08-23 | PDF 1.4 MB |

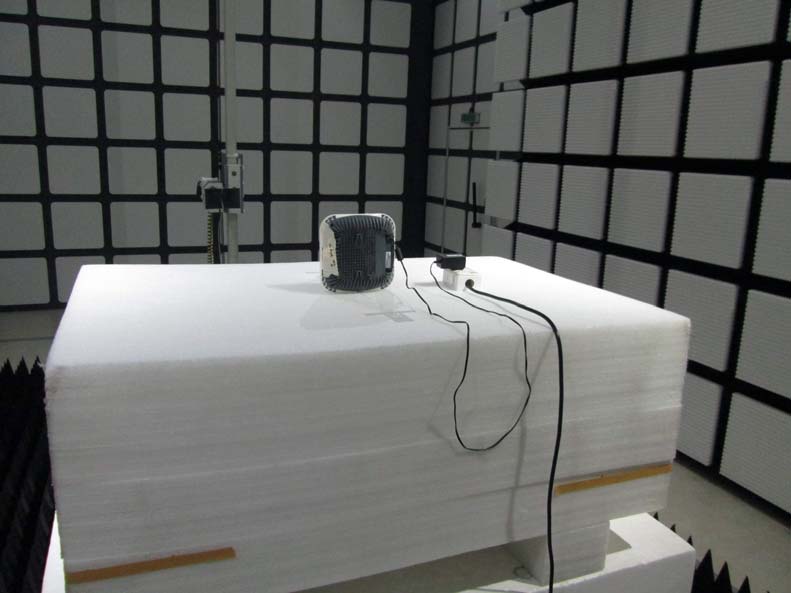

| DFS Setup Photo | Test Setup Photos | 2017-03-16 | PDF 91.4 KB |
| Setup Photos | Test Setup Photos | 2017-03-16 | PDF 1.7 MB |
| Setup Photos | Test Setup Photos | 2016-08-23 | PDF 361.4 KB |
| Setup Photos | Test Setup Photos | 2016-08-23 | PDF 362.2 KB |
| Co-Location Report | Test Report | 2017-03-16 | PDF 4.8 MB |
| DFS Report | Test Report | 2017-03-16 | PDF 1.9 MB |
| Test Report (W53 and W56) | Test Report | 2017-03-16 | PDF 5.7 MB |
| Co-location Report | Test Report | 2016-08-23 | PDF 136.6 KB |
| Test Report | Test Report | 2016-08-23 | PDF 4.4 MB |
| Test Report Part 1 | Test Report | 2016-08-23 | PDF 5.1 MB |
| Test Report Part 2 | Test Report | 2016-08-23 | PDF 1.6 MB |
| DoC Statement 1 | Attestation Statements | 2016-08-23 | PDF 230 KB |
| DoC Statement 2 | Attestation Statements | 2016-08-23 | PDF 232.3 KB |
| CIIPC Letter | Cover Letter(s) | 2017-03-16 | PDF 243.8 KB |
| Confidentiality Letter | Cover Letter(s) | 2017-03-16 | PDF 138.3 KB |
| Product Similarity Declaration | Cover Letter(s) | 2017-03-16 | PDF 92.1 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-08-23 | PDF 251.7 KB |
| POA 1 | Cover Letter(s) | 2016-08-23 | PDF 309.3 KB |
| POA 2 | Cover Letter(s) | 2016-08-23 | PDF 290.3 KB |
| RF Exposure | RF Exposure Info | 2017-03-16 | PDF 118 KB |
| RF Exposure | RF Exposure Info | 2016-08-23 | PDF 131.9 KB |
| Block Diagram Metadata only | Block Diagram | PDF 150.6 KB | |
| Schematics Metadata only | Schematics | PDF 843.5 KB | |
| Mesh mode Declaration Metadata only | Operational Description | PDF 140.5 KB | |
| Operation Description Metadata only | Operational Description | PDF 66.9 KB | |
| PAG Approved Metadata only | Operational Description | PDF 42.8 KB | |
| Software Security Description Metadata only | Operational Description | PDF 903.3 KB | |
| Software Security Description Metadata only | Operational Description | PDF 43.5 KB | |
| Software Security Description Rev Metadata only | Operational Description | PDF 208.1 KB |
Application Information
| Application ID | tePFxdWPjR+UqNAuyRKXfQ== |
|---|---|
| Final Action Date | 2017-03-16 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0014392971 |
| Model | 28166022 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Secured Wireless Access Point |
| Responsible Party | Andrew Ji, Director, aji@fortinet.com , 408 235 7700 |
| Test Firm | Sharon Jiang, SPORTON International Inc., sharonjiang@sporton.com.tw  , 886-3-656-9065 |
| TCB Email | bacl.regulatory@baclcorp.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Class II Permissive Change as described in this filing. Power listed is the maximum combined conducted output power. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The use of other antenna requires a Class II Permissive Change filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. End -users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz, 40 MHz and 80 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| tePFxdWPjR+UqNAuyRKXfQ== | 2017-03-16 | Class II permissive change or modification of presently authorized equipment |
| l4kbrpiMeLHZ/q6F/p7qzg== | 2016-08-23 | Original Equipment |
| hWXvuZbFlGy78ZEZlmsJdQ== | 2016-08-23 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 2412-2462 MHz | 0.4830000 | 15C | CC, MO |
| 5180-5240 MHz | 0.324 | 15E | 38, CC, MO |
| 5180-5240 MHz | 0.385 | 15E | 38, CC, MO |
| 5190-5230 MHz | 0.385 | 15E | 38, CC, MO |
| 5210 MHz | 0.06 | 15E | 38, CC, MO |
| 5260-5320 MHz | 0.137 | 15E | 38, CC, MO, ND |
| 5500-5720 MHz | 0.223 | 15E | 38, CC, MO, ND |
| 5745-5825 MHz | 0.635 | 15E | 38, CC, MO |
| 5755-5795 MHz | 0.303 | 15E | 38, CC, MO |
| 5775 MHz | 0.067 | 15E | 38, CC, MO |
Grants
TCB Grant - Application tePFxdWPjR+UqNAuyRKXfQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 03/16/2017 Application Dated: 01/30/2017 |
| Fortinet Inc. |
| 899 Kifer Road |
| Sunnyvale, CA 94086 |
| Attention: Andrew Ji , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | TVE-28166022 |
| Name of Grantee: | Fortinet Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Secured Wireless Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.385 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.137 | ||
| 38 CC MO ND | 15E | 5500.0 - 5720.0 | 0.223 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.635 |
| Class II Permissive Change as described in this filing. Power listed is the maximum combined conducted output power. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The use of other antenna requires a Class II Permissive Change filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. End -users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz, 40 MHz and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
