GB8912 2.4GHz Wireless Car Rearview Backup... - FCC ID TW5-GB8912

FCC ID TW5-GB8912

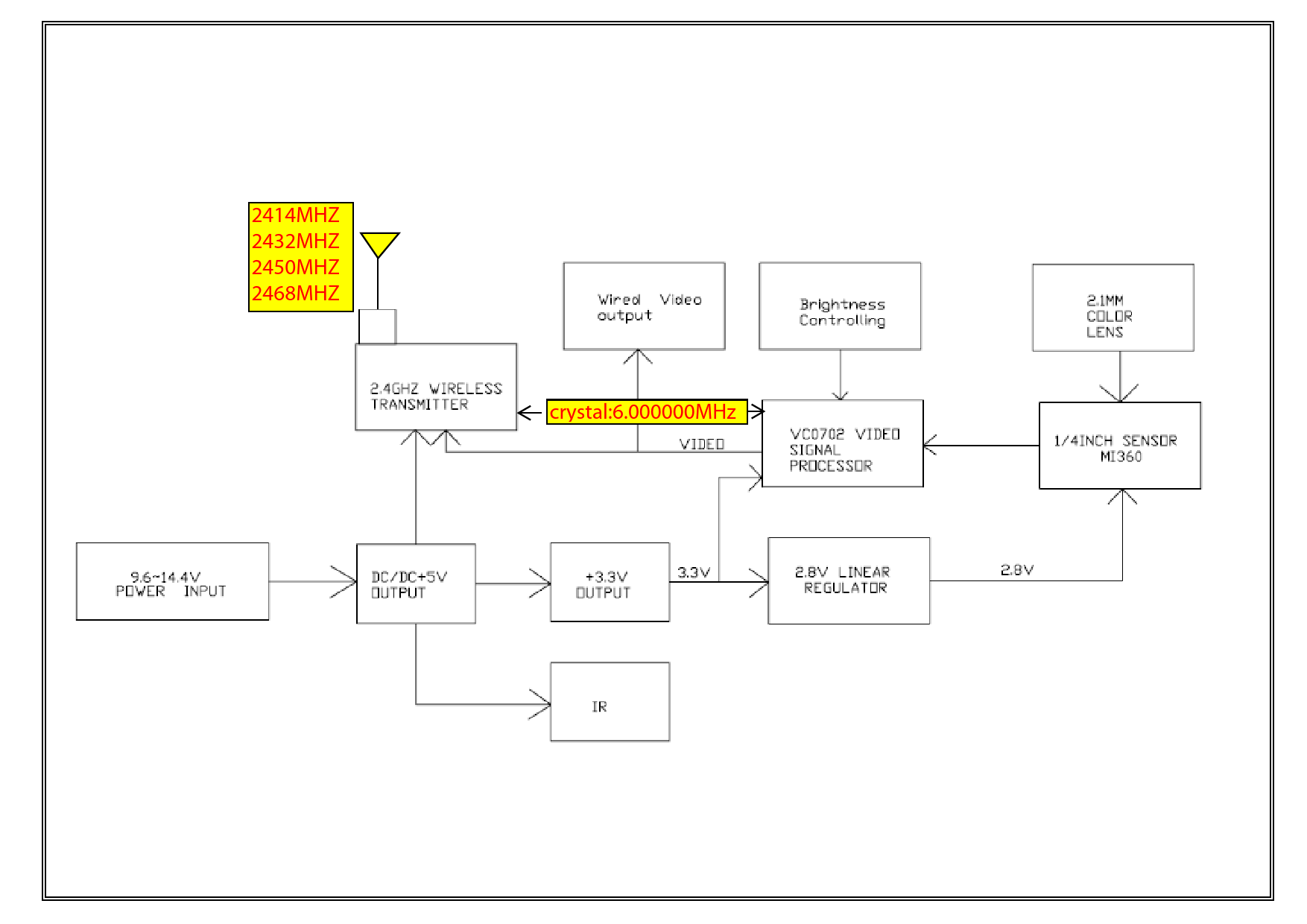

Block Diagram

2.4GHz Wireless Car Rearview Backup Camera

by Shenzhen Gospell Smarthome Electronic Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDTW5-GB8912
Document ID1069851
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleGB8912 5-6-18.xls
ApplicantShenzhen Gospell Smarthome Electronic Co., Ltd.
Equipment Class2.4GHz Wireless Car Rearview Backup Camera
Product CodeGB8912
Application IDXVVC0bJMdN3cfKhmpGO1RA==
Application PurposeOriginal Equipment
Application Date2009-02-18
Frequency Range2414-2468 MHz
FRN0014506539
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByPeter Luo
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2009-02-18
Available2009-02-18
Created2009-02-16
Modified2009-02-17
Pages1
File TypeAdobe Acrobat PDF
File Size137233
File SHA-2566577395dfd6592ae7ade988a53f0ee3ba6b0e7c76f72ad2e4cbff508d8f8df88
PDF Metadata AuthorAdministrator
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows)
FCC.gov SourcesFCC.gov 1069851
