XQTOYSXQ034 RF Remote Control Schematics - FCC ID TWLXQTOYSXQ034
FCC ID TWLXQTOYSXQ034

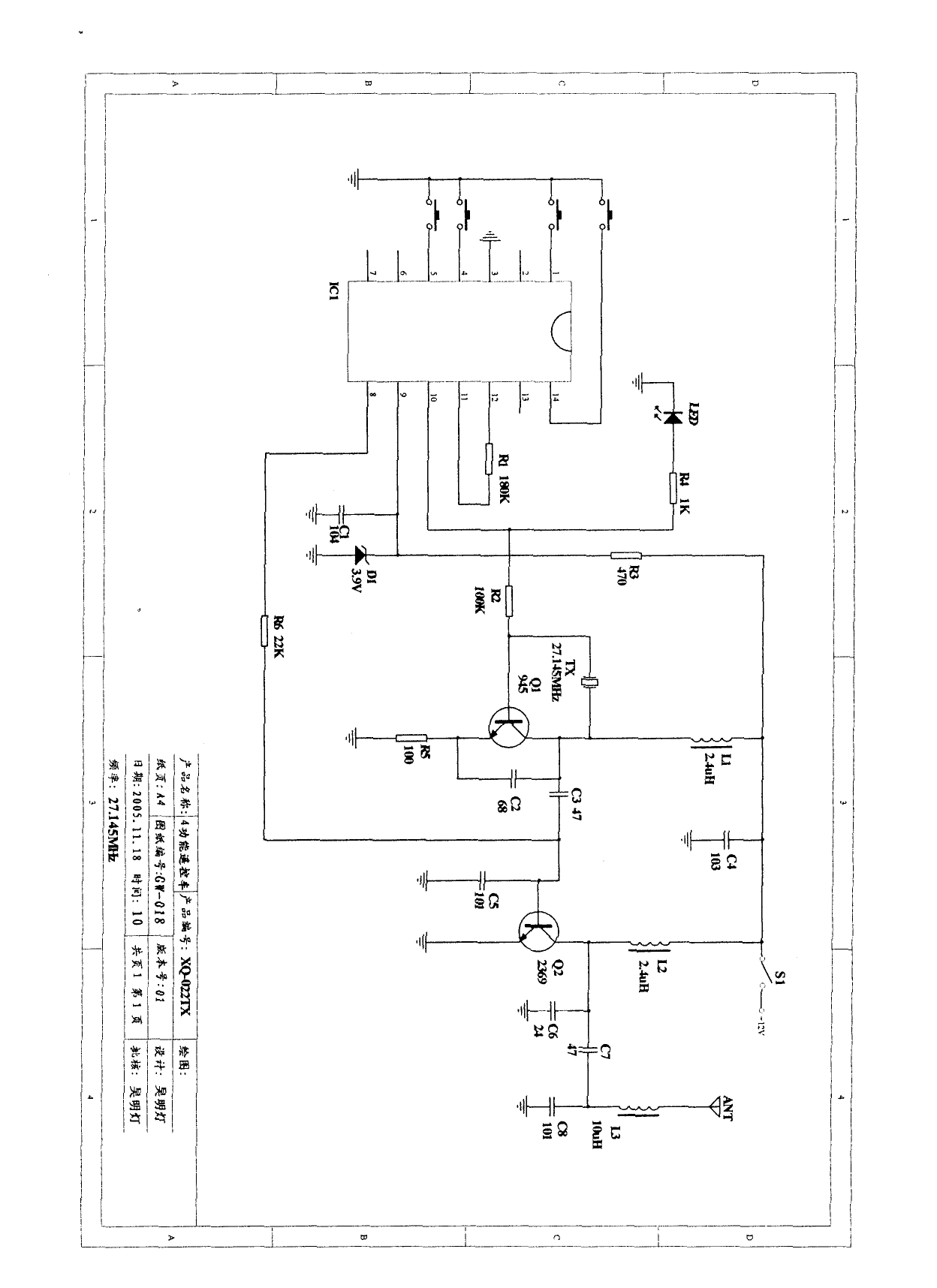

Schematics
RF Remote Control
Document preview loads when visible.
Document Details
| FCC ID | TWLXQTOYSXQ034 |
|---|---|
| Document ID | 616231 |
| Document Type | Schematics |
| Description | Schematics |
| Document Title | None |
| Applicant | Xin Yu Arts Toys Co., Ltd. Xin Qiang Branch |
| Equipment Class | RF Remote Control |
| Product Code | XQTOYSXQ034 |
| Application ID | ufKwCfl4MrUG1xCq8zTnTw== |
| Application Purpose | Original Equipment |
| Application Date | 2006-01-05 |
| Frequency Range | 27.145 MHz |
| FRN | 0014392476 |
| Test Firm | SGS-CSTC Standards Technical Services Co., Ltd |
| Certified By | Stephen Guo |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-12-30 |
| Available | 2006-01-05 |
| Created | 2005-12-27 |
| Modified | 2005-12-27 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 29040 |
| File SHA-256 | 7dd2e0156a87ff768eb134b6e32a5366a367affdd5cf64e2c69a5d88c4bcc43f |
| PDF Metadata Author | None |
| PDF Metadata Creator | HP LaserJet 33xx |
| PDF Metadata Producer | Adobe Acrobat 6.0 Paper Capture |
| FCC.gov Sources | FCC.gov 616231 |
