SAFEMARK51D 315-316MHz WIRELESS DEVICE... - FCC ID TZ2SAFEMARK51D

FCC ID TZ2SAFEMARK51D

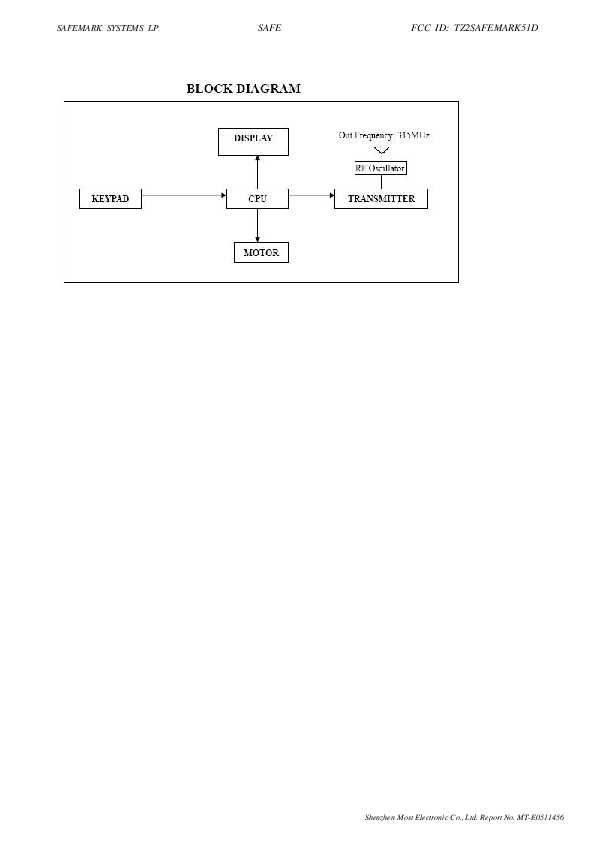

BLOCK DIAGRAM

315-316MHz WIRELESS DEVICE

by SafeMark Systems LP

Document preview loads when visible.

Document Details

FCC IDTZ2SAFEMARK51D
Document ID648726
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document Titleuntitled
ApplicantSafeMark Systems LP
Equipment Class315-316MHz WIRELESS DEVICE
Product CodeSAFEMARK51D
Application ID+5PGa/amovVLXGEHkClGEA==
Application PurposeClass II Permissive Change
Application Date2006-04-19
Frequency Range315 MHz
FRN0014699698
Test FirmAudix Technology (Shenzhen) Co.
Certified ByLEI ZHU LEE MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2006-04-19
Available2006-04-19
Created2006-03-27
Modified2006-03-27
Pages1
File TypeAdobe Acrobat PDF
File Size22548
File SHA-256daad721147cebd592d2f00f8b7d855be7e491b3f0b4a4bc88c6ce89915e45181
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows)
FCC.gov SourcesFCC.gov 648726
