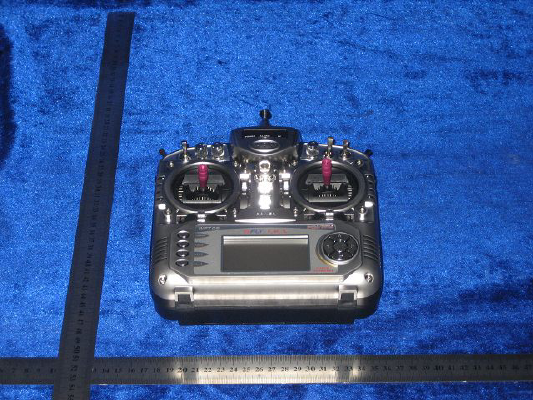

WFT09 Radio Control Transmitter External Photos - FCC ID TZVWFT09

FCC ID TZVWFT09

External Photos

Radio Control Transmitter

by Shen Zhen WFLY Technology Development Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDTZVWFT09
Document ID796355
Document TypeExternal Photos
DescriptionExternal Photos
Document TitleNone
ApplicantShen Zhen WFLY Technology Development Co., Ltd.
Equipment ClassRadio Control Transmitter
Product CodeWFT09
Application IDJDUhCe6qheP80YkwL/bSsA==
Application PurposeOriginal Equipment
Application Date2007-05-24
Frequency Range72.01-72.99 MHz
FRN0014679823
Test FirmShenzhen Timeway Technology Consulting Co., Ltd.
Certified ByTina Yang Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-05-24
Available2007-05-24
Created2007-05-22
Modified2007-05-22
Pages8
File TypeAdobe Acrobat PDF
File Size819319
File SHA-25655f0afd6bb0aae128474c06e85010d00eb121c78d4ef1c4e93fe6c27ede0f48f
PDF Metadata AuthorNone
PDF Metadata CreatorAdobe Acrobat 6.02
PDF Metadata ProducerAdobe Acrobat 6.02 Image Conversion Plug-in
FCC.gov SourcesFCC.gov 796355
