FCC ID U2ZZB3102
Zigbee Plug-in Dimmer with load sensing
by Sheenway Asia Ltd.
Grantee Code: U2Z Product Code: ZB3102
Latest application date: 2016-08-12
Device Images
FCC ID Device Details
| FCC ID | U2ZZB3102 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | U2Z |
| Product Code | ZB3102 |
| Applicant Business | Sheenway Asia Ltd. 🇨🇳 |
| Related Domains |  sheentek.com |
| Equipment Class | Zigbee Plug-in Dimmer with load sensing |
| Test Firm | shenzhen academy of metrology & quality inspection |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2405-2480 MHz | Original Equipment | 2016-08-12 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-08-12 | PDF 2.5 MB |

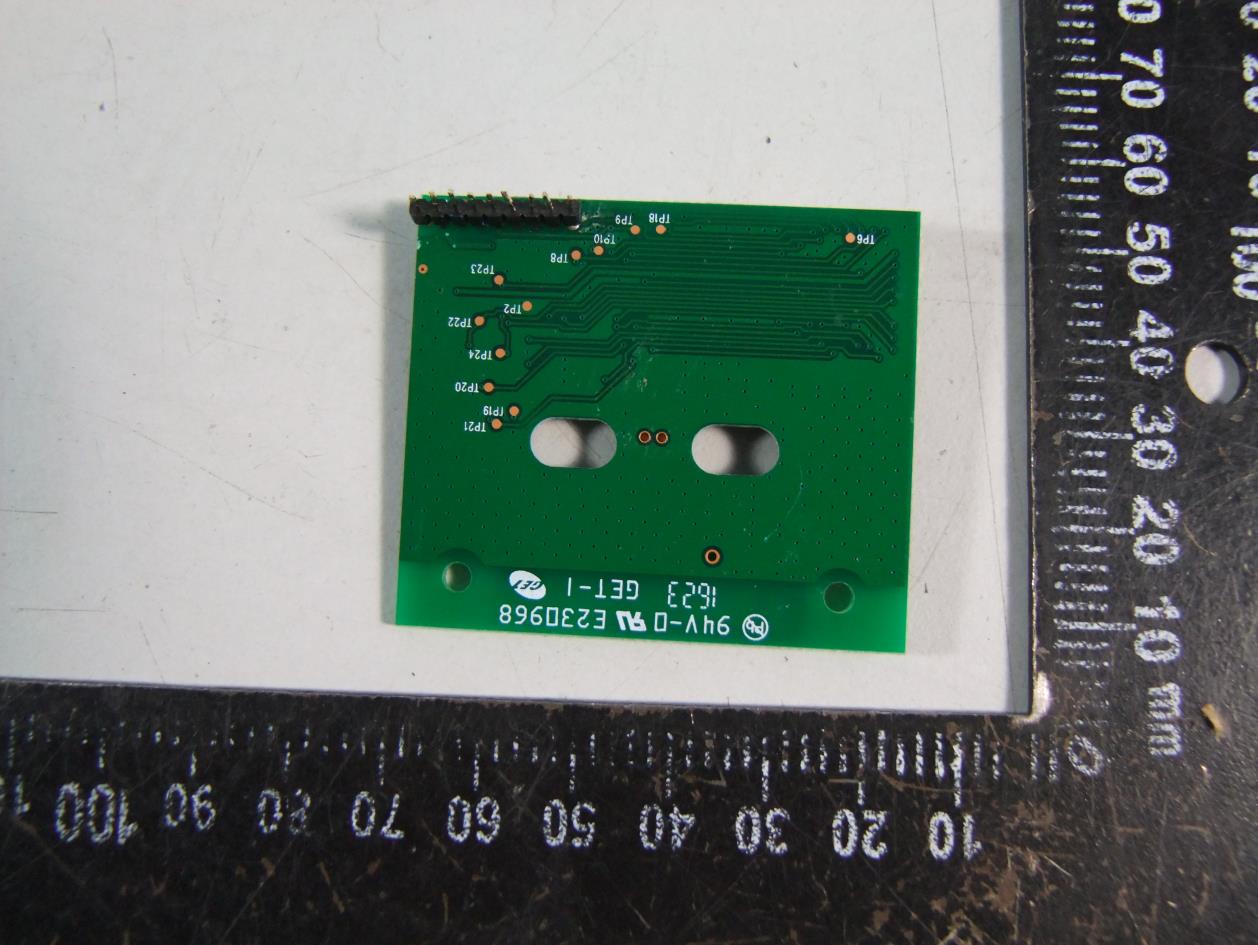

| Internal photos | Internal Photos | 2016-08-12 | PDF 966.2 KB |

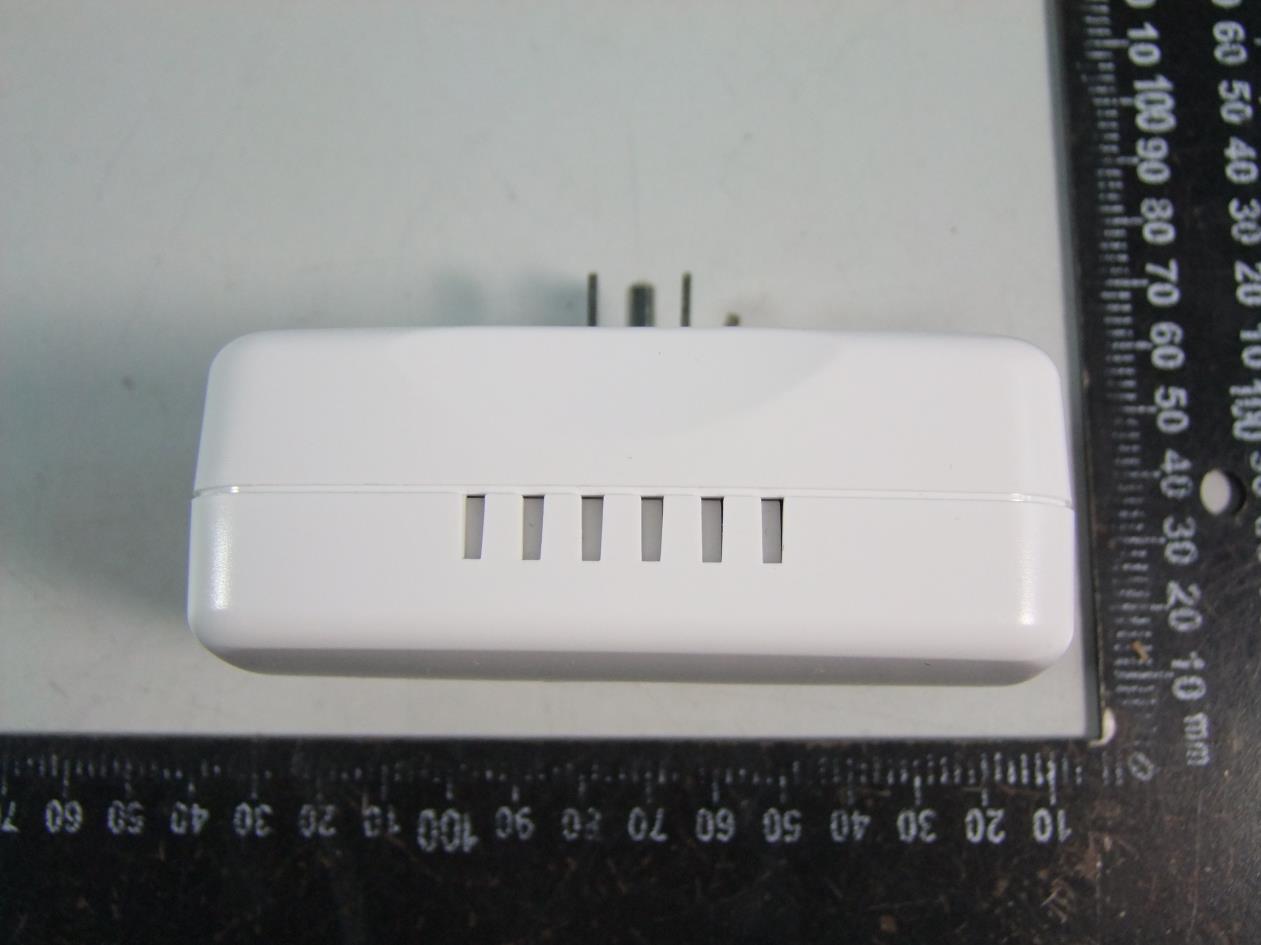

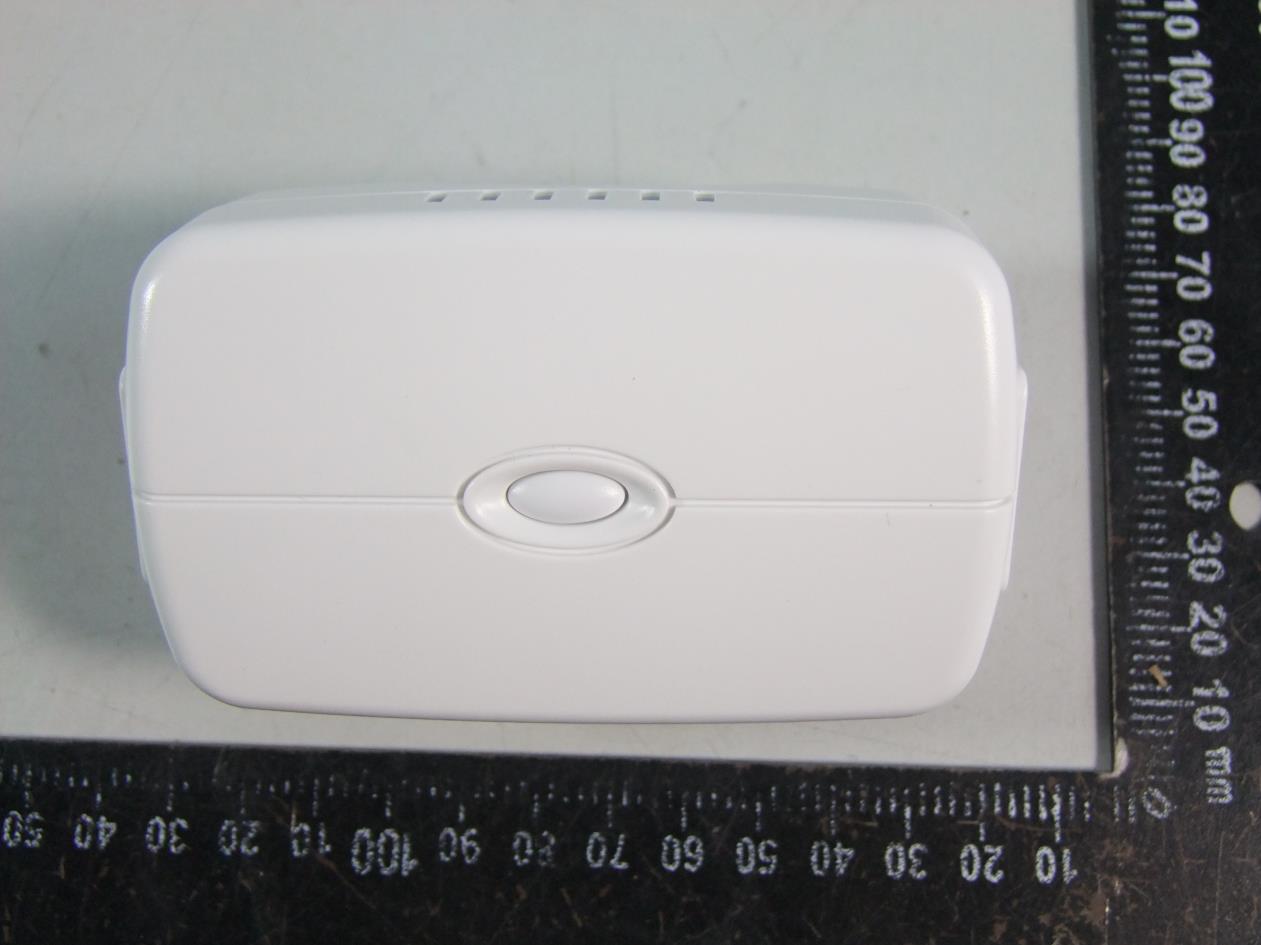

| External photos | External Photos | 2016-08-12 | PDF 512.3 KB |
| Label format and location | ID Label/Location Info | 2016-08-12 | PDF 534.4 KB |

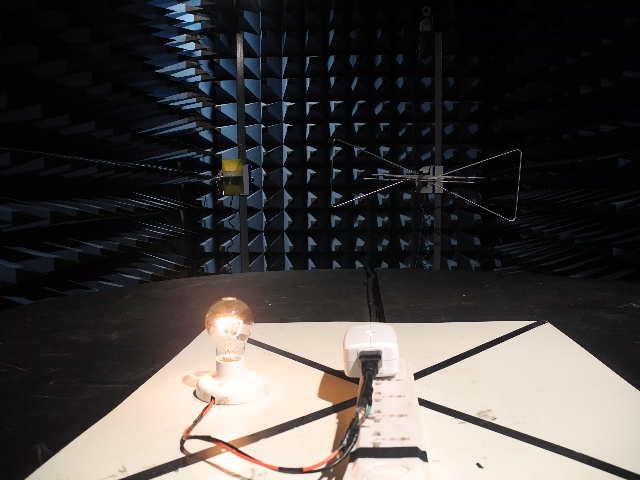

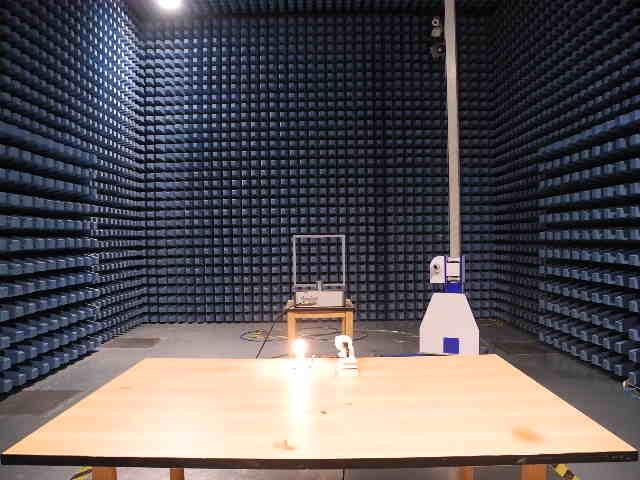

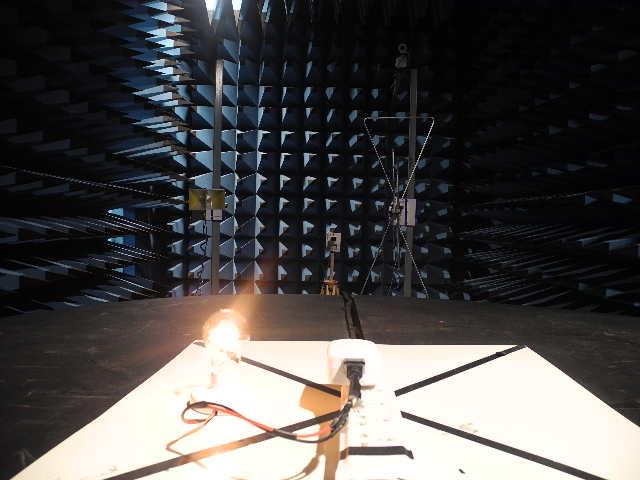

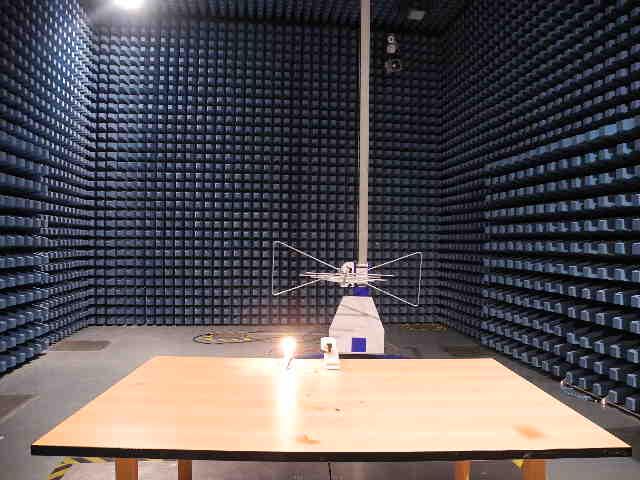

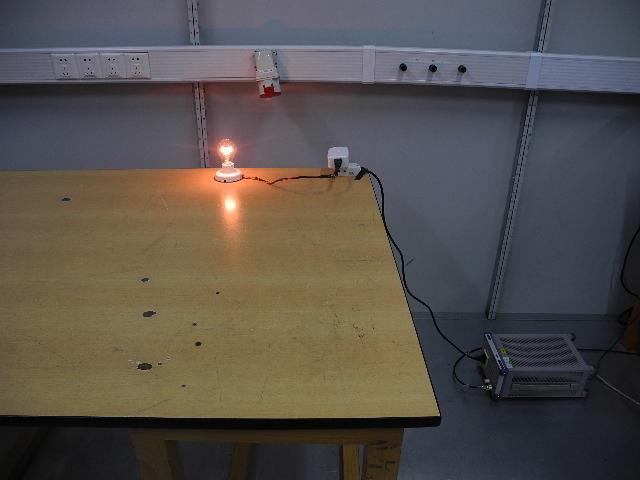

| Test setup photos | Test Setup Photos | 2016-08-12 | PDF 368.4 KB |
| Test report | Test Report | 2016-08-12 | PDF 2.3 MB |
| Agent authorization | Cover Letter(s) | 2016-08-12 | PDF 121.5 KB |
| Request for confidentiality letter | Cover Letter(s) | 2016-08-12 | PDF 189.1 KB |
| RF exposure Info | RF Exposure Info | 2016-08-12 | PDF 105.1 KB |
| Block diagram Metadata only | Block Diagram | PDF 1 MB | |
| Schematics Metadata only | Schematics | PDF 84.5 KB | |
| Operational description Metadata only | Operational Description | PDF 457.7 KB |
Application Information
| Application ID | DBFjggAIctcMaiMYJNrY2g== |
|---|---|
| Final Action Date | 2016-08-12 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0019709823 |
| Model | ZB3102 |
| Frequency Range | 2405-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Zigbee Plug-in Dimmer with load sensing |
| Responsible Party | Sammel Tung, sammel@sheentek.com , +852-27226692 |
| Test Firm | peter lin, shenzhen academy of metrology & quality inspection, linb@smq.com.cn  , 86-755-86009898 |
| TCB Email | LST.FRE.CertNotice@ul.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| DBFjggAIctcMaiMYJNrY2g== | 2016-08-12 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2405-2480 MHz | 0.0220000 | 15C |
Grants
TCB Grant - Application DBFjggAIctcMaiMYJNrY2g==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 08/12/2016 Application Dated: 08/12/2016 |
| Sheenway Asia Ltd. |
| Room 1313, 13/F., Austin Tower |
| 22-26 Austin Avenue Tsim Sha Tsui, Kowloon |
| Hong Kong, China |
| Attention: Sammel Tung |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | U2ZZB3102 |
| Name of Grantee: | Sheenway Asia Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | Zigbee Plug-in Dimmer with load sensing |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2480.0 | 0.022 |
| Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
EAS Grant - Application DBFjggAIctcMaiMYJNrY2g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sheenway Asia Ltd. Room 1313, 13/F., Austin Tower 22-26 Austin Avenue Tsim Sha Tsui, Kowloon Hong Kong, China |
Date of Grant: 08/12/2016 Application Dated: 08/12/2016 |
| Attention: Sammel Tung |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | U2ZZB3102 |
| Name of Grantee: | Sheenway Asia Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | Zigbee Plug-in Dimmer with load sensing |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2480.0 | 0.022 |
| Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| Mail To: |
