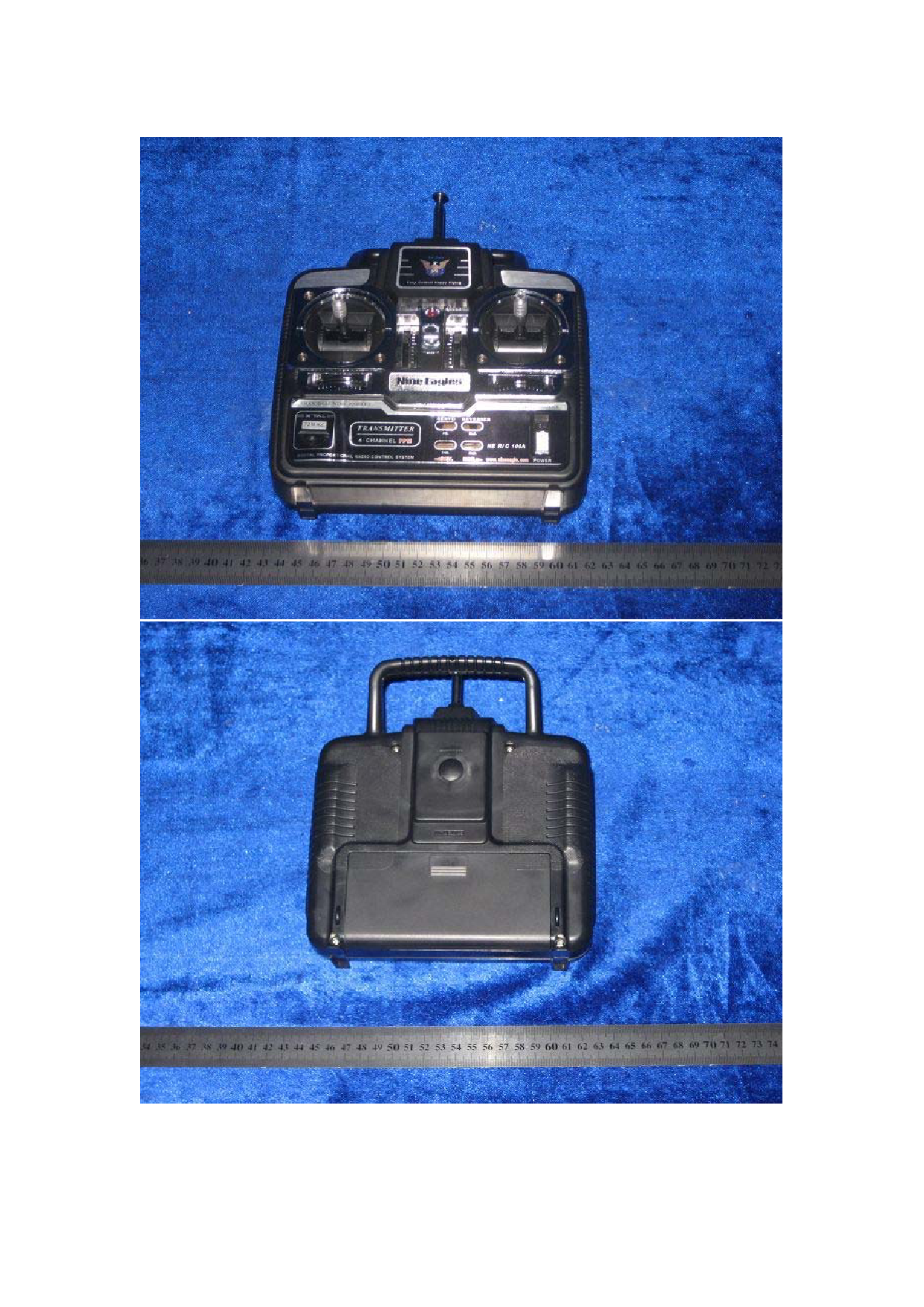

NE106A R/C Transmitter External Photos - FCC ID U45NE106A

FCC ID U45NE106A

External Photos

R/C Transmitter

by Shanghai Nine Eagles Electronic Technology Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDU45NE106A
Document ID775792
Document TypeExternal Photos
DescriptionExternal Photos
Document TitleExternal photos
ApplicantShanghai Nine Eagles Electronic Technology Co., Ltd.
Equipment ClassR/C Transmitter
Product CodeNE106A
Application IDIjYriOnNjUPwt1ozkbwaIw==
Application PurposeOriginal Equipment
Application Date2007-04-03
Frequency Range72.01-72.99 MHz
FRN0016200362
Test FirmShenzhen Timeway Technology Consulting Co., Ltd.
Certified ByTina Yang Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-04-03
Available2007-04-03
Created2007-03-27
Modified2007-03-27
Pages2
File TypeAdobe Acrobat PDF
File Size221233
File SHA-2560c6ab2c009f1f8e3875d6ba718fa0bb0355fa7eebc7004f46f1e27c5c9f6c9d9
PDF Metadata AuthorTanja Lorber
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows)
FCC.gov SourcesFCC.gov 775792
