RF_734_02
04 April 16

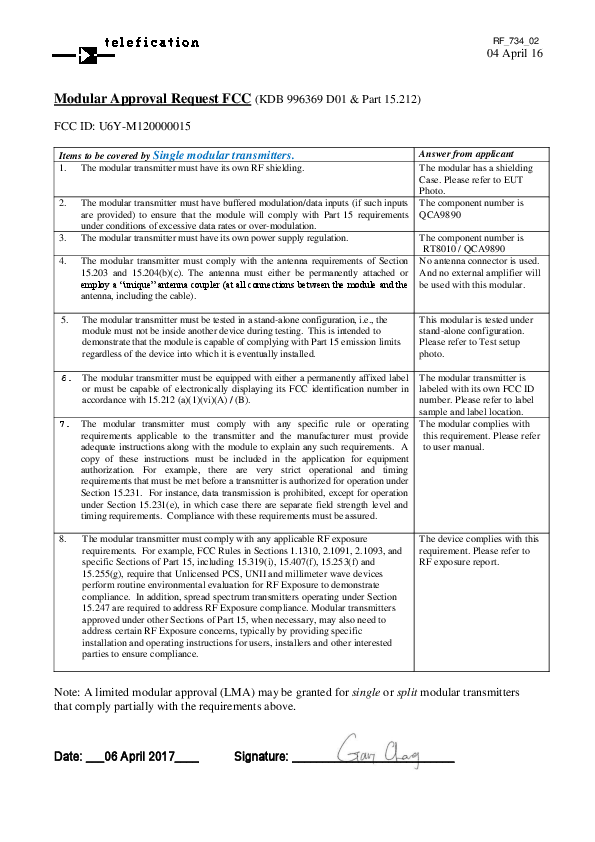

Modular Approval Request FCC (KDB 996369 D01 & Part 15.212)
FCC ID: U6Y-M120000015
Items to be covered by Single modular transmitters.
1. The modular transmitter must have its own RF shielding.
2.
3.
The modular transmitter must have buffered modulation/data inputs (if such inputs
are provided) to ensure that the module will comply with Part 15 requirements
under conditions of excessive data rates or over-modulation.
The modular transmitter must have its own power supply regulation.
4.
The modular transmitter must comply with the antenna requirements of Section
15.203 and 15.204(b)(c). The antenna must either be permanently attached or
employ a “unique” antenna coupler (at all connections between the module and the
antenna, including the cable).
5.
The modular transmitter must be tested in a stand-alone configuration, i.e., the
module must not be inside another device during testing. This is intended to
demonstrate that the module is capable of complying with Part 15 emission limits
regardless of the device into which it is eventually installed.
6. The modular transmitter must be equipped with either a permanently affixed label
or must be capable of electronically displaying its FCC identification number in
accordance with 15.212 (a)(1)(vi)(A) / (B).
7. The modular transmitter must comply with any specific rule or operating
requirements applicable to the transmitter and the manufacturer must provide
adequate instructions along with the module to explain any such requirements. A
copy of these instructions must be included in the application for equipment
authorization. For example, there are very strict operational and timing
requirements that must be met before a transmitter is authorized for operation under
Section 15.231. For instance, data transmission is prohibited, except for operation
under Section 15.231(e), in which case there are separate field strength level and
timing requirements. Compliance with these requirements must be assured.
8.
The modular transmitter must comply with any applicable RF exposure
requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and
specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and
15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices
perform routine environmental evaluation for RF Exposure to demonstrate
compliance. In addition, spread spectrum transmitters operating under Section
15.247 are required to address RF Exposure compliance. Modular transmitters
approved under other Sections of Part 15, when necessary, may also need to
address certain RF Exposure concerns, typically by providing specific
installation and operating instructions for users, installers and other interested
parties to ensure compliance.
Answer from applicant
The modular has a shielding
Case. Please refer to EUT
Photo.
The component number is
QCA9890
The component number is
RT8010 / QCA9890
No antenna connector is used.
And no external amplifier will
be used with this modular.
This modular is tested under
stand-alone configuration.
Please refer to Test setup
photo.
The modular transmitter is
labeled with its own FCC ID
number. Please refer to label
sample and label location.
The modular complies with
this requirement. Please refer
to user manual.
The device complies with this
requirement. Please refer to
RF exposure report.
Note: A limited modular approval (LMA) may be granted for single or split modular transmitters
that comply partially with the requirements above.
Date: ___06 April 2017____
Signature: ___________________________
