FCC ID U9O-SM220
SNAP OS-enabled 2.4Ghz modular radio
by Synapse Wireless Inc.
Grantee Code: U9O Product Code: SM220
Latest application date: 2024-06-07
Device Images
FCC ID Device Details
| FCC ID | U9O-SM220 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | U9O |
| Product Code | SM220 |
| Applicant Business | Synapse Wireless Inc. 🇺🇸 |
| Related Domains |  synapsewireless.com |
| Equipment Class | SNAP OS-enabled 2.4Ghz modular radio |
| Test Firm | TUV SUD America, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2405-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2024-06-07 |
| 2405-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2017-04-26 |
| 2405-2480 MHz | Original Equipment | 2014-09-19 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

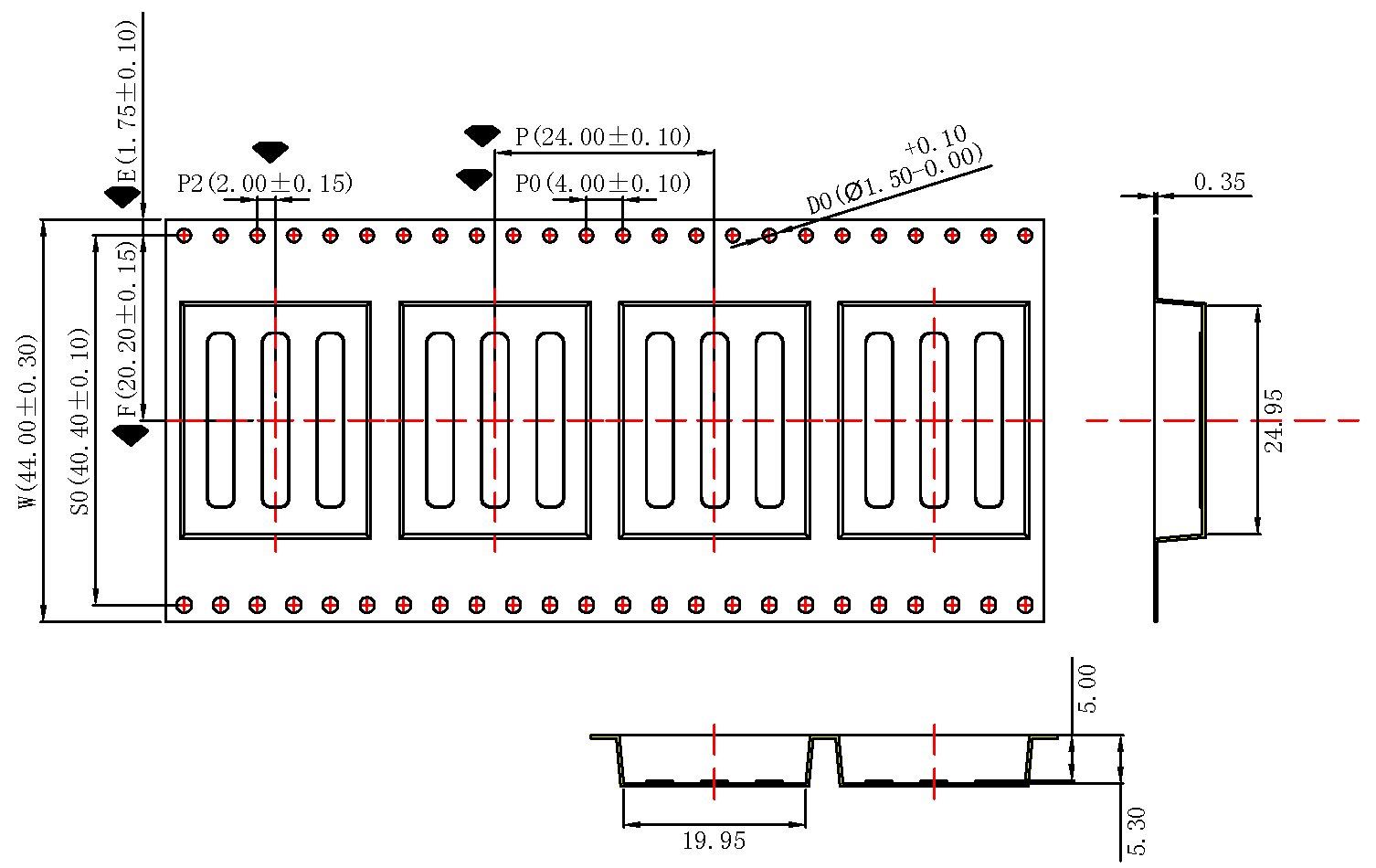

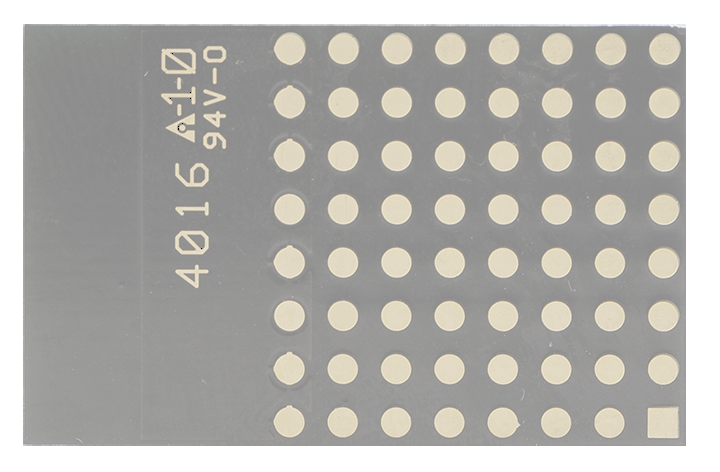

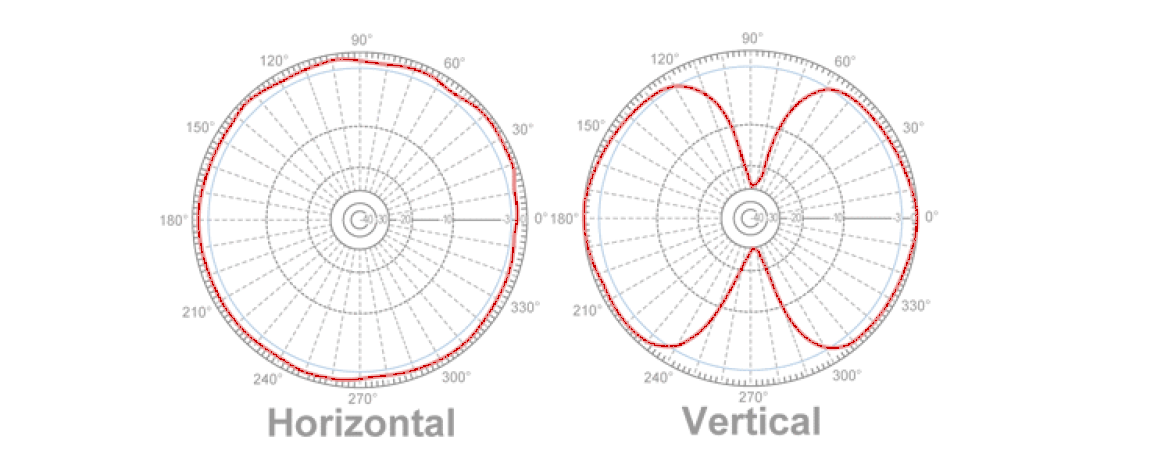

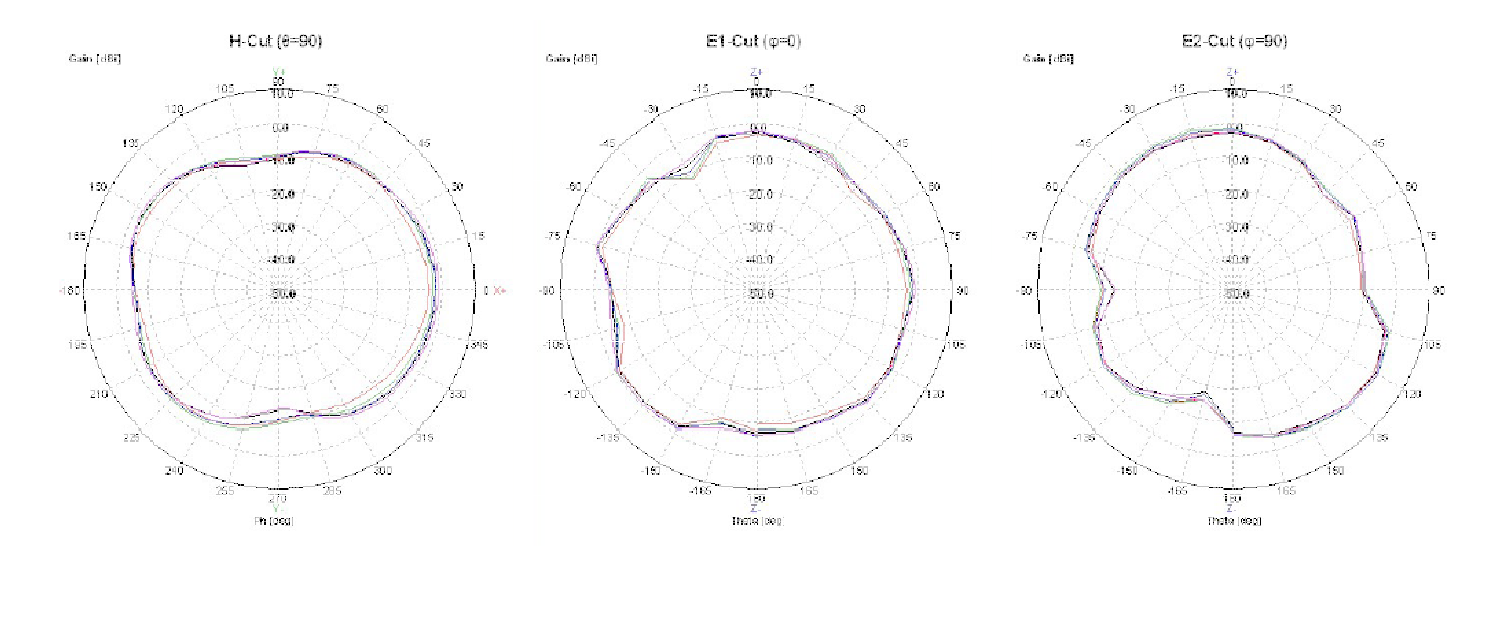

| Manual | Users Manual | 2017-04-26 | PDF 2.9 MB |
| Manual | Users Manual | 2014-09-19 | PDF 1.7 MB |
| Internal Photos | Internal Photos | 2014-09-19 | PDF 247.7 KB |
| External Photos | External Photos | 2017-04-26 | PDF 1.2 MB |
| External Photos | External Photos | 2014-09-19 | PDF 140.5 KB |
| Label Information | ID Label/Location Info | 2014-09-19 | PDF 115.8 KB |

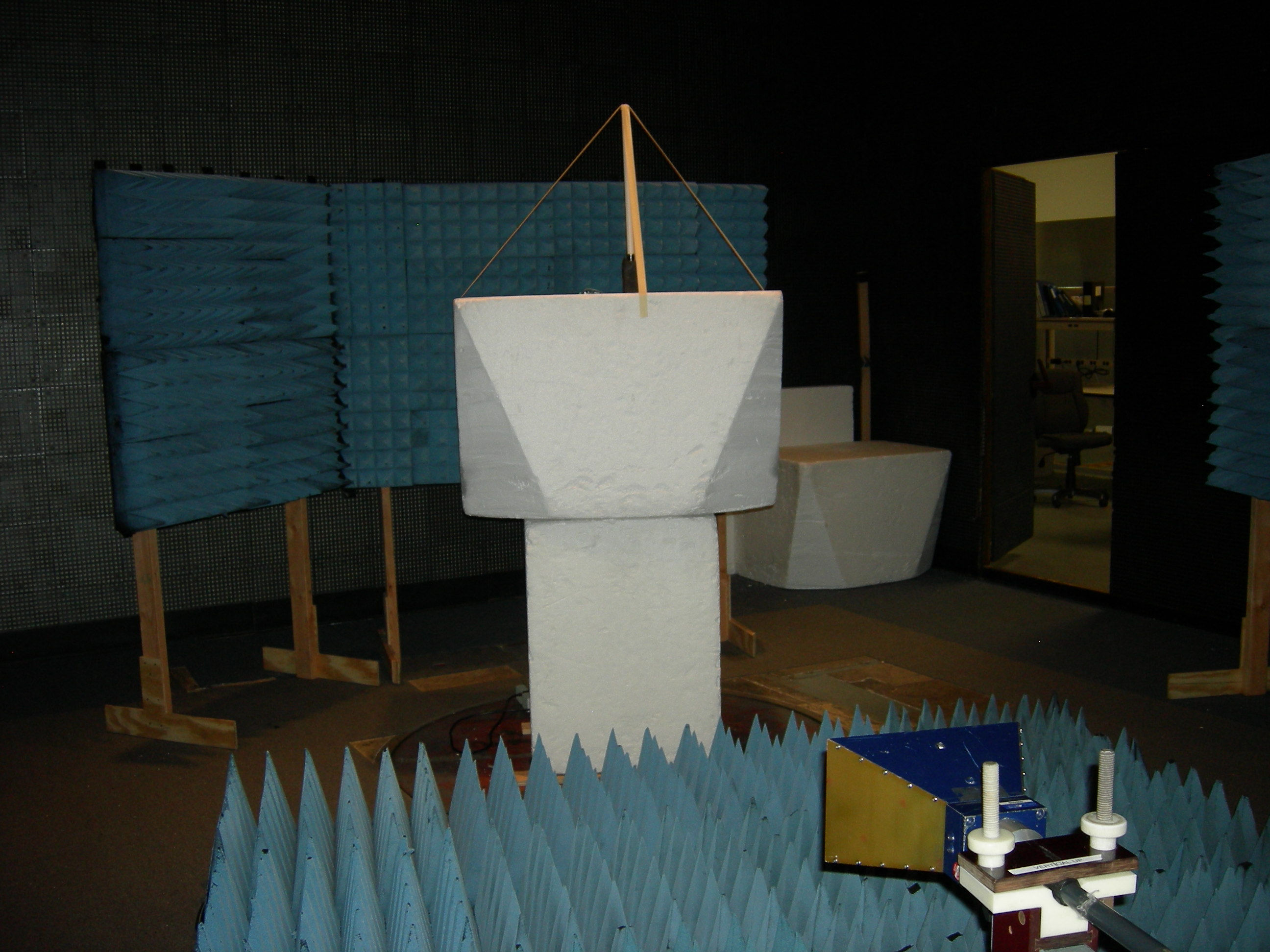

| Test Setup Photos | Test Setup Photos | 2024-06-07 | PDF 1,019.5 KB |
| Test Setup Photos | Test Setup Photos | 2017-04-26 | PDF 5.5 MB |
| Test Setup Photos | Test Setup Photos | 2014-09-19 | PDF 973.3 KB |
| Antenna Information | Test Report | 2024-06-07 | PDF 1.2 MB |
| Test Report | Test Report | 2024-06-07 | PDF 1.2 MB |
| Test Report | Test Report | 2017-04-26 | PDF 626.8 KB |
| Test Report | Test Report | 2014-09-19 | PDF 836.2 KB |
| 2.911(d)(5)(i)-(ii) Covered Equipment | Attestation Statements | 2024-06-07 | PDF 126.2 KB |
| 2.911(d)(7) Agent of Service | Attestation Statements | 2024-06-07 | PDF 95.1 KB |
| Agency Agreement | Cover Letter(s) | 2024-06-07 | PDF 51.9 KB |
| C2PC Cover Letter | Cover Letter(s) | 2024-06-07 | PDF 29.5 KB |
| Agency Agreement Letter | Cover Letter(s) | 2017-04-26 | PDF 241.6 KB |
| FCC Cover Letter | Cover Letter(s) | 2017-04-26 | PDF 56.7 KB |
| Agency Agreement | Cover Letter(s) | 2014-09-19 | PDF 285.1 KB |
| Confidentiality Request | Cover Letter(s) | 2014-09-19 | PDF 294.2 KB |
| FCC Cover Letter | Cover Letter(s) | 2014-09-19 | PDF 23.4 KB |
| Modular Approval Letter | Cover Letter(s) | 2014-09-19 | PDF 297.3 KB |
| RF Exposure | RF Exposure Info | 2024-06-07 | PDF 125.8 KB |
| RF Exposure | RF Exposure Info | 2017-04-26 | PDF 98.2 KB |
| RF Exposure | RF Exposure Info | 2014-09-19 | PDF 36.2 KB |
| Block Diagram Metadata only | Block Diagram | PDF 120.3 KB | |
| Schematics Metadata only | Schematics | PDF 1.7 MB | |
| Theory of Operation Metadata only | Operational Description | PDF 130.9 KB |
Application Information
| Application ID | +8vqmTOke5qwuOhgaYdjuw== |
|---|---|
| Final Action Date | 2024-06-07 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0016376618 |
| Model | SM220 |
| Frequency Range | 2405-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | SNAP OS-enabled 2.4Ghz modular radio |
| Responsible Party | Russ Dickerson, Engineering Director, russ.dickerson@synapsewireless.com , 2569243919 |
| Agent | Rossana Rossana Rossana, TUV SUD America |
| Test Firm | William Elliott, TUV SUD America, Inc., William.Elliott@tuvsud.com  , 813-284-2736 |
| TCB Email | jeff.woods@tuvsud.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular approval. Power listed is conducted. Device is limited to mobile and fixed applications only. The module must transmit with a duty factor not exceeding 14.1%, controlled by firmware and software. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end-user has no manual instructions to remove or install the device. Output power not to exceed 2.6mW when transmitting at 2480 MHz and 53mW when transmitting at 2475 MHz. Class II Change to add new antenna as described in this filing. |
