FCC ID UDV-20160416
GSM/GPRS+GPS module
by Shanghai Simcom Ltd.
Grantee Code: UDV Product Code: 20160416
Latest application date: 2016-05-25
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2016-05-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-05-25 | PDF 1.6 MB |
| Internal Photos | Internal Photos | 2016-05-25 | PDF 173.6 KB |
| EUT Photos | External Photos | 2016-05-25 | PDF 94.6 KB |
| ID Label and Location | ID Label/Location Info | 2016-05-25 | PDF 217 KB |

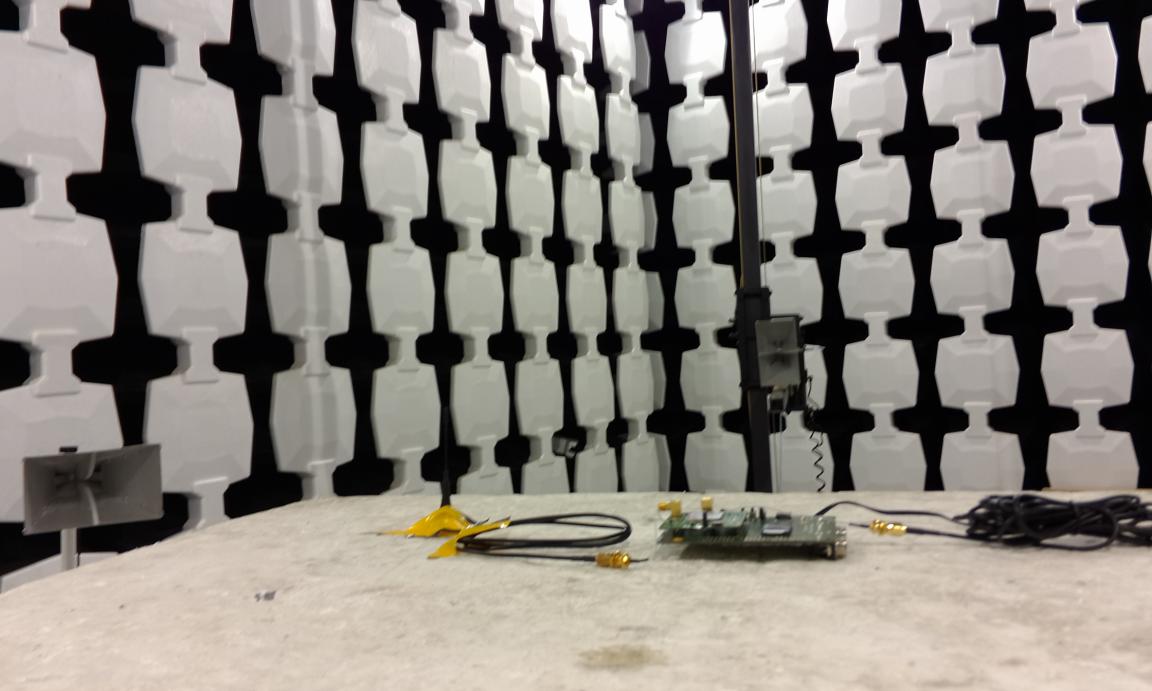

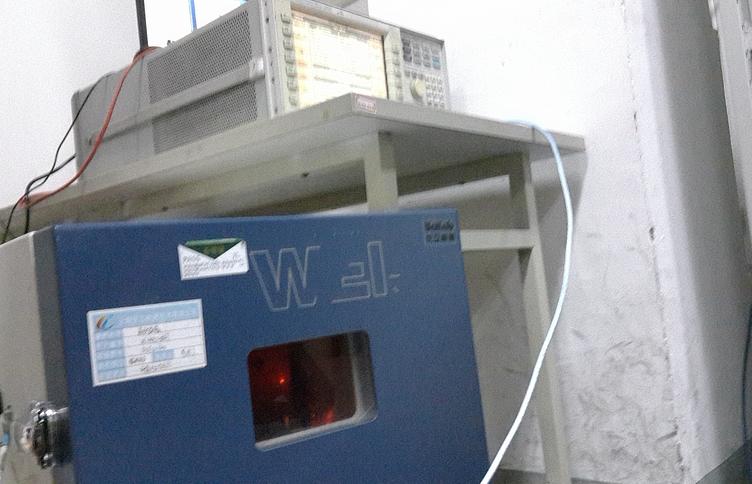

| Test Setup Photos | Test Setup Photos | 2016-05-25 | PDF 478.3 KB |
| Test Report | Test Report | 2016-05-25 | PDF 2.1 MB |
| Authorization Letter | Cover Letter(s) | 2016-05-25 | PDF 87.4 KB |
| Confidentiality Request | Cover Letter(s) | 2016-05-25 | PDF 144.8 KB |
| Modular Approval Letter | Cover Letter(s) | 2016-05-25 | PDF 167.9 KB |
| RF Exposure Info | RF Exposure Info | 2016-05-25 | PDF 151 KB |
| Block diagram Metadata only | Block Diagram | PDF 143 KB | |
| Schematics Metadata only | Schematics | PDF 404.5 KB | |
| Operational description Metadata only | Operational Description | PDF 420 KB | |
| Parts list Metadata only | Parts List/Tune Up Info | PDF 67.6 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 106.8 KB |
Application Information
| Application ID | /gPymUR0tur9vDEHxtvrRg== |
|---|---|
| Final Action Date | 2016-05-25 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0015216328 |
| Model | 20160416 |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCB - PCS Licensed Transmitter |
| Device Description | GSM/GPRS+GPS module |
| Responsible Party | yongsheng Li, Deputy General Manager, yongsheng.li@sim.com  , +86 21 32523134 |
| Test Firm | Wang Rong, UniLab (Shanghai) Co., Ltd., wangrong@unilab.cn  , 86-21-50275125 |
| TCB Email | g.proelss@emcc.de  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Output power listed is conducted. This device is to be used only for mobile and fixed application. The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss, must satisfy the MPE categorical exclusion requirements of 2.1091, RF exposure, and max radiated output power limits of the applicable rule section(s). Compliance of this device in all final host configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product guidelines. End users and installers must be provided with specific information required to satisfy RF exposure compliance for final host devices and installations. The max. antenna gain for this device as reported to the FCC is: 6.0 dBi (850MHz) and 3.8 dBi (1900MHz). This device contains GSM functions that are not operational in U.S. Territories. This filing is only applicable for 850 MHz Cell and 1900 MHz PCS operations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| /gPymUR0tur9vDEHxtvrRg== | 2016-05-25 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application /gPymUR0tur9vDEHxtvrRg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
EMCCons DR RASEK GmbH & Co. KG Stoernhofer Berg 15 Unterleinleiter, 91364 Germany |
Date of Grant: 05/25/2016 Application Dated: 05/25/2016 |
| Shanghai Simcom Ltd. |
| SIM Technology Building,No.633, Jinzhong Road, |
| Changning District, Shanghai, P.R. ChinaP.O. Box 200233, |
| Shanghai, China |
| Attention: yongsheng Li , Deputy General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UDV-20160416 |
| Name of Grantee: | Shanghai Simcom Ltd. |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | GSM/GPRS+GPS module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.76 | 40.64 Hz | 277KGXW | |
| 24E | 1850.2 - 1909.8 | 0.82 | 47.23 Hz | 266KGXW |
| Single Modular Approval. Output power listed is conducted. This device is to be used only for mobile and fixed application. The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss, must satisfy the MPE categorical exclusion requirements of 2.1091, RF exposure, and max radiated output power limits of the applicable rule section(s). Compliance of this device in all final host configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product guidelines. End users and installers must be provided with specific information required to satisfy RF exposure compliance for final host devices and installations. The max. antenna gain for this device as reported to the FCC is: 6.0 dBi (850MHz) and 3.8 dBi (1900MHz). This device contains GSM functions that are not operational in U.S. Territories. This filing is only applicable for 850 MHz Cell and 1900 MHz PCS operations. |
EAS Grant - Application /gPymUR0tur9vDEHxtvrRg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shanghai Simcom Ltd. SIM Technology Building,No.633, Jinzhong Road, Changning District, Shanghai, P.R. ChinaP.O. Box 200233, Shanghai, China |
Date of Grant: 05/25/2016 Application Dated: 05/25/2016 |
| Attention: yongsheng Li , Deputy General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UDV-20160416 |
| Name of Grantee: | Shanghai Simcom Ltd. |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | GSM/GPRS+GPS module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.76 | 40.64 Hz | 277KGXW | |
| 24E | 1850.2 - 1909.8 | 0.82 | 47.23 Hz | 266KGXW |
| Single Modular Approval. Output power listed is conducted. This device is to be used only for mobile and fixed application. The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss, must satisfy the MPE categorical exclusion requirements of 2.1091, RF exposure, and max radiated output power limits of the applicable rule section(s). Compliance of this device in all final host configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product guidelines. End users and installers must be provided with specific information required to satisfy RF exposure compliance for final host devices and installations. The max. antenna gain for this device as reported to the FCC is: 6.0 dBi (850MHz) and 3.8 dBi (1900MHz). This device contains GSM functions that are not operational in U.S. Territories. This filing is only applicable for 850 MHz Cell and 1900 MHz PCS operations. |
