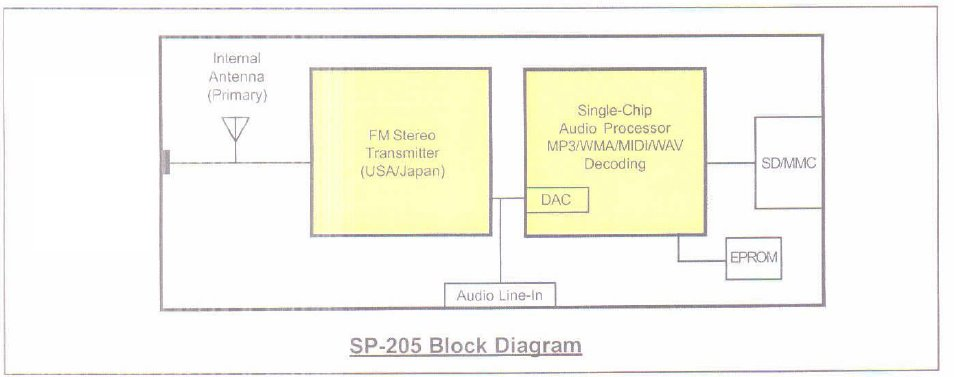

SP205 FM Transmitter Block Diagram - FCC ID UGESP205

FCC ID UGESP205

Block Diagram

FM Transmitter

by Sumitronics Asia Pte. Ltd.

Document preview loads when visible.

Document Details

FCC IDUGESP205
Document ID698169
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantSumitronics Asia Pte. Ltd.
Equipment ClassFM Transmitter
Product CodeSP205
Application IDHZPsFeCpBME+Z+22yl066g==
Application PurposeOriginal Equipment
Application Date2006-08-28
Frequency Range106.7-107.9 MHz
FRN0015300544
Test FirmThe Hong Kong Standards and Testing Centre Ltd.
Certified ByPatrick Wong Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-08-28
Available2006-08-28
Created2006-08-28
Modified2006-08-28
Pages1
File TypeAdobe Acrobat PDF
File Size42089
File SHA-256289dcbb0c504ee992fe2f239a608e488a7f7fe013a4d6773e39d0d5b410835af
PDF Metadata ProducerAdobe Acrobat 6.01 Adobe Acrobat 6.01 Image Conversion Plug-in
FCC.gov SourcesFCC.gov 698169
