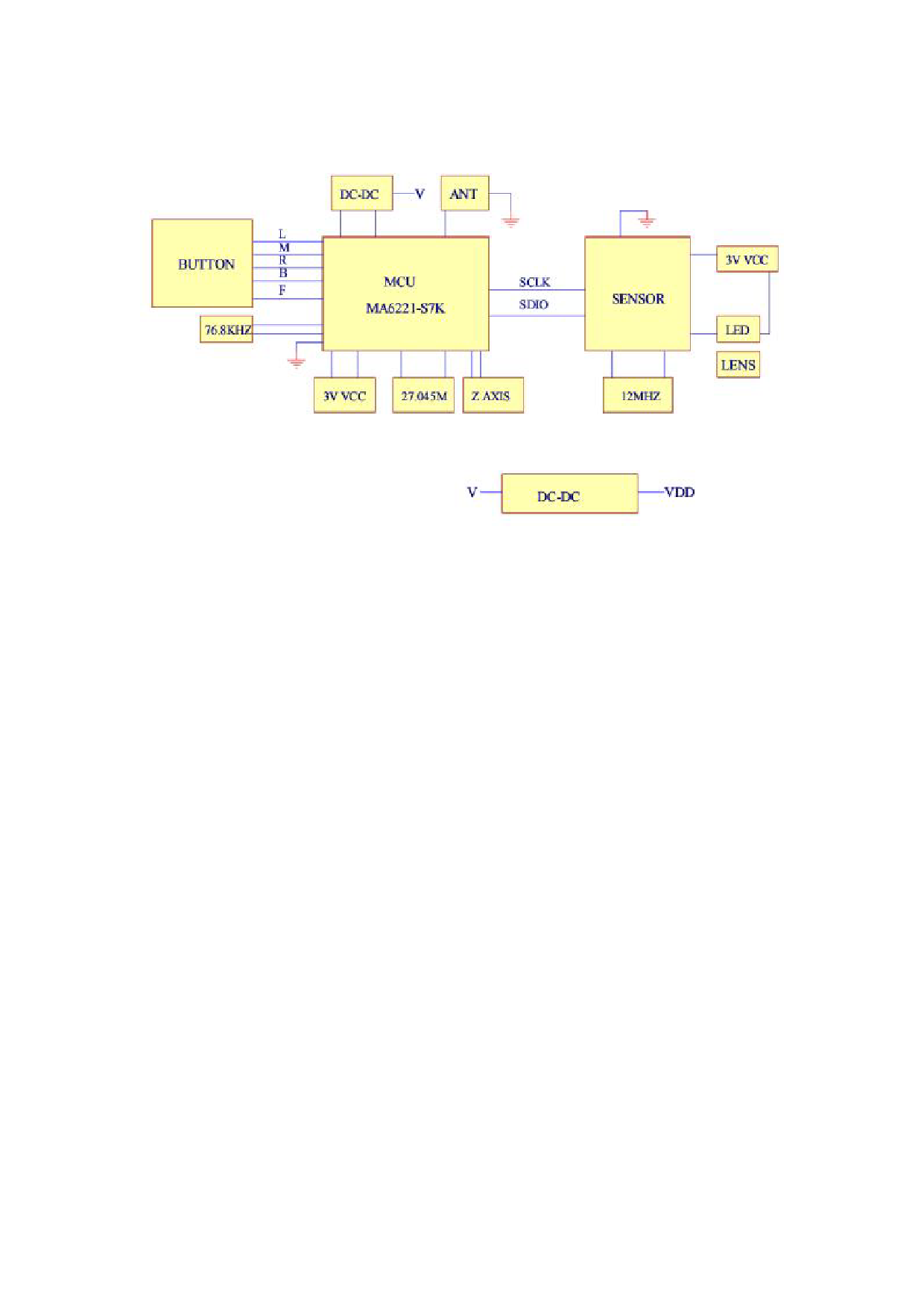

PANTERA WIRELESS OPTICAL MOUSE Block Diagram - FCC ID UGKPANTERA

FCC ID UGKPANTERA

BLOCK DIAGRAM

WIRELESS OPTICAL MOUSE

by FuJian New Times Digital Technology Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDUGKPANTERA
Document ID847898
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document TitleBlock Diagram
ApplicantFuJian New Times Digital Technology Co., Ltd.
Equipment ClassWIRELESS OPTICAL MOUSE
Product CodePANTERA
Application IDuuOXyjAw1vaICvPDzQtQcw==
Application PurposeOriginal Equipment
Application Date2007-09-26
Frequency Range27.045 MHz
FRN0015304322
Test FirmSinTek Laboratory Co., Ltd.
Certified ByGARY CAI MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-09-26
Available2007-09-26
Created2007-09-26
Modified2007-09-26
Pages1
File TypeAdobe Acrobat PDF
File Size21620
File SHA-25656685cd263eba9f5ae344cc0e82e419e0b7d0b1a89f335fe553d4e17cc4a3ae0
PDF Metadata AuthorOwner
PDF Metadata CreatorpdfFactory Pro www.fineprint.cn
PDF Metadata ProducerpdfFactory Pro 2.46 (Windows XP Home Chinese)
FCC.gov SourcesFCC.gov 847898
