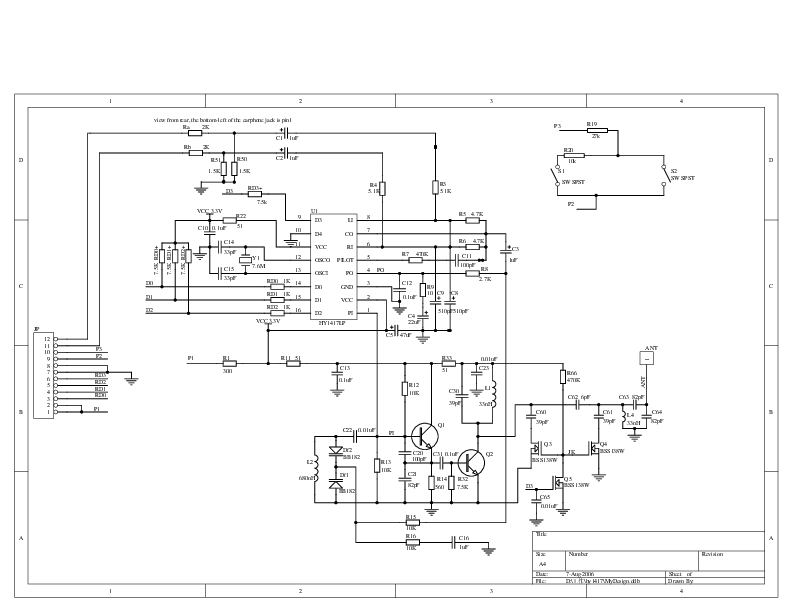

VRFM9 FM MODULATOR Schematics - FCC ID UIRVRFM9

FCC ID UIRVRFM9

SCHEMATICS

FM MODULATOR

by HongKong Huike Technology Limited

Document preview loads when visible.

Document Details

FCC IDUIRVRFM9
Document ID729630
Document TypeSchematics
DescriptionSCHEMATICS
Document TitleProtel Schematic
ApplicantHongKong Huike Technology Limited
Equipment ClassFM MODULATOR
Product CodeVRFM9
Application ID0xyQnGd20hZrB6J+0RxVXQ==
Application PurposeOriginal Equipment
Application Date2006-11-17
Frequency Range88.1-107.9 MHz
FRN0015396690
Test FirmSGS-CSTC Standards Technical Services Co., Ltd
Certified Byandy liu
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-11-17
Available2006-11-17
Created2006-08-07
Modified2006-08-07
Pages1
File TypeAdobe Acrobat PDF
File Size40616
File SHA-256ced181f831acdc258cbfb20d178e3318ff6a1c9ca2b377980e62732a736cb07d
PDF Metadata Authorsl
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows) sl
FCC.gov SourcesFCC.gov 729630
