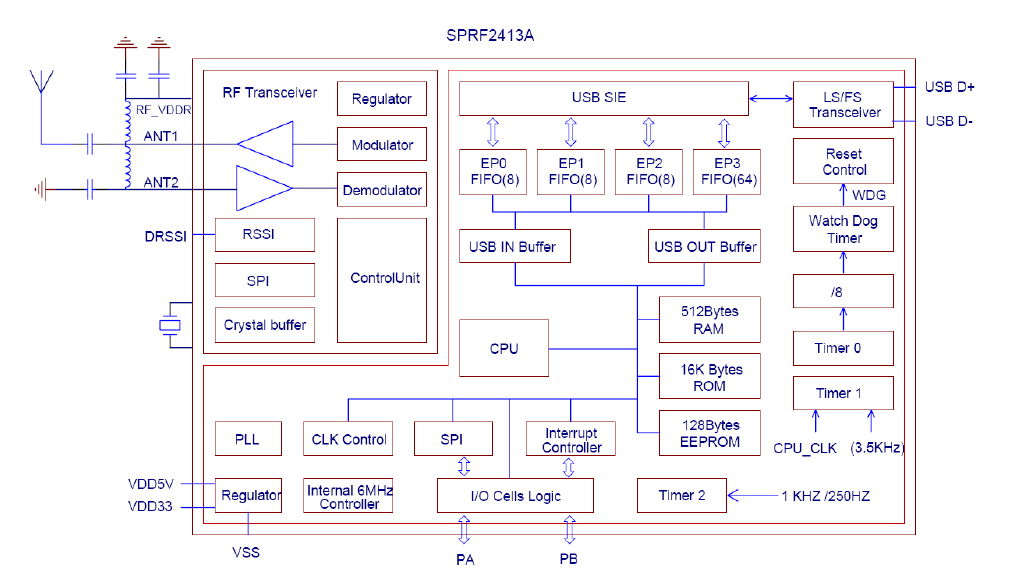

NANO 2.4 GHz Micro Receiver Block Diagram - FCC ID UK5NANO

FCC ID UK5NANO

Block Diagram

2.4 GHz Micro Receiver

by Chuang Feng Electronics Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDUK5NANO
Document ID1309080
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleKM1025 2.4G(SoC) .xls
ApplicantChuang Feng Electronics Co., Ltd.
Equipment Class2.4 GHz Micro Receiver
Product CodeNANO
Application IDebOBIMWbzFmBGVbJkbzIwg==
Application PurposeOriginal Equipment
Application Date2010-07-08
Frequency Range2405-2476 MHz
FRN0015473416
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByXuefeng.Li
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2010-07-08
Available2010-07-08
Created2009-12-22
Modified2009-12-22
Pages1
File TypeAdobe Acrobat PDF
File Size139275
File SHA-256a8effd05ab44a505379ef21236b1ce3d87940231a8699091242f970d6f2dc7a2
PDF Metadata AuthorAdministrator
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows)
FCC.gov SourcesFCC.gov 1309080
