SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
No. 1 Workshop, M-10, Middle section, Science & Technology Park,
Shenzhen, Guangdong, China 518057
Telephone:
+86 (0) 755 2601 2053
Fax:
+86 (0) 755 2671 0594
Email:
[email protected]
Report No.: SZEM161100983902
Page:
1 of 6

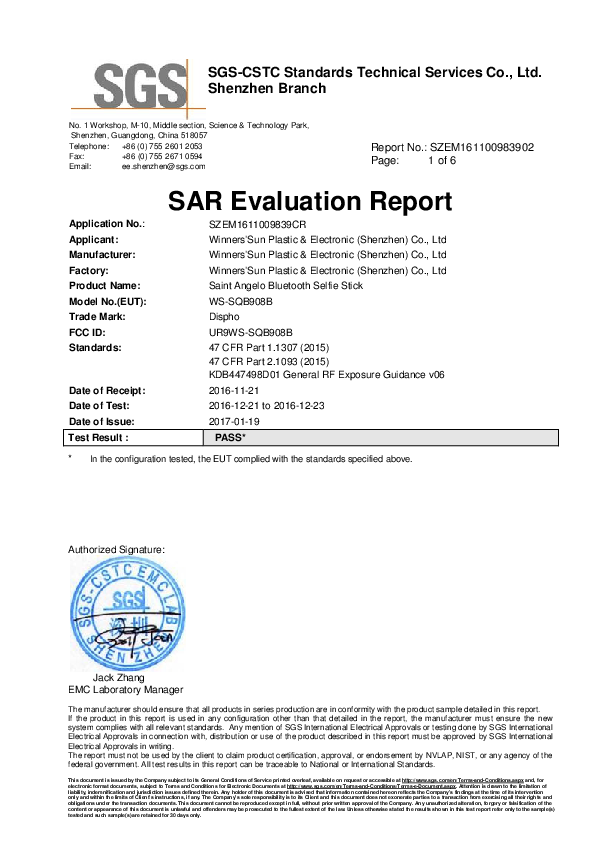

Cover page
SAR Evaluation Report
Application No.:
SZEM1611009839CR
Applicant:
Winners’Sun Plastic & Electronic (Shenzhen) Co., Ltd
Manufacturer:
Winners’Sun Plastic & Electronic (Shenzhen) Co., Ltd
Factory:
Winners’Sun Plastic & Electronic (Shenzhen) Co., Ltd
Product Name:
Saint Angelo Bluetooth Selfie Stick
Model No.(EUT):
WS-SQB908B
Trade Mark:
Dispho
FCC ID:
UR9WS-SQB908B
Standards:
47 CFR Part 1.1307 (2015)
47 CFR Part 2.1093 (2015)
KDB447498D01 General RF Exposure Guidance v06
Date of Receipt:
2016-11-21
Date of Test:
2016-12-21 to 2016-12-23
Date of Issue:
2017-01-19
Test Result :
PASS*
In the configuration tested, the EUT complied with the standards specified above.
Authorized Signature:
Jack Zhang
EMC Laboratory Manager
The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report.
If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new
system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International
Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International
Electrical Approvals in writing.
The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the
federal government. All test results in this report can be traceable to National or International Standards.
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for
electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of
liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention
only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and
obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the
content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s)
tested and such sample(s) are retained for 30 days only.
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM161100983902
Page:
2 of 6
Version
Revision Record
Version
Chapter
00
Date
Modifier
Remark
2017-01-19
Original
Authorized for issue by:
Tested By
2016-12-23
(Bill Chen) /Project Engineer
Checked By
Date
2017-01-19
(Eric Fu) /Reviewer
Date
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for
electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of
liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only
and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and
obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the
content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s)
tested and such sample(s) are retained for 30 days only.
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM161100983902
Page:
3 of 6
Contents
Page
COVER PAGE .....................................................................................................................................................1
VERSION..............................................................................................................................................................2
CONTENTS ..........................................................................................................................................................3
GENERAL INFORMATION ................................................................................................................................4
4.1
4.2
4.3
4.4
4.5
4.6
4.7
CLIENT INFORMATION.........................................................................................................................................4
GENERAL DESCRIPTION OF EUT ..........................................................................................................................4
TEST LOCATION ..................................................................................................................................................5
TEST FACILITY ...................................................................................................................................................5
DEVIATION FROM STANDARDS ............................................................................................................................5
ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................................5
OTHER INFORMATION REQUESTED BY THE CUSTOMER .........................................................................................5
SAR EVALUATION .............................................................................................................................................6
5.1 RF E XPOSURE COMPLIANCE REQUIREMENT .........................................................................................................6
5.1.1 Standard Requirement ...........................................................................................................................6
5.1.2 Limits .......................................................................................................................................................6
5.1.3 EUT RF Exposure ..................................................................................................................................6
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for
electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of
liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only
and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and
obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the
content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s)
tested and such sample(s) are retained for 30 days only.
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM161100983902
Page:
4 of 6
General Information
4.1 Client Information
Applicant:
Winners’Sun Plastic & Electronic (Shenzhen) Co., Ltd
Address of Applicant:
Zone E, Ying Tai Industrial Park, Dalang, Longhua Town, Bao An District,
Shenzhen, Guang Dong Province, China
Manufacturer:
Winners’Sun Plastic & Electronic (Shenzhen) Co., Ltd
Address of Manufacturer:
Zone E, Ying Tai Industrial Park, Dalang, Longhua Town, Bao An District,
Shenzhen, Guang Dong Province, China
Factory:
Winners’Sun Plastic & Electronic (Shenzhen) Co., Ltd
Address of Factory:
Zone E, Ying Tai Industrial Park, Dalang, Longhua Town, Bao An District,
Shenzhen, Guang Dong Province, China
4.2 General Description of EUT
Product Name:
Saint Angelo Bluetooth Selfie Stick
Model No.:
WS-SQB908B
Trade Mark:
Dispho
Operation Frequency:
2402MHz~2480MHz
Bluetooth Version:
V3.0
Modulation Type:
GFSK
Number of Channel:
79
Antenna Type:
Inverted F
Antenna Gain:
0dBi
Battery:
Rechargeable battery: DC 3.7V 60mAh (Charge by USB)
Test voltage:
AC 120V 60Hz
Remark:
Model No.: WS-SQB908B
There are three colors for WS-SQB908B, only the sample WS-SQB908B with blue was tested, since the
electrical circuit design, layout, components used, internal wiring and functions were identical for all the
above samples, only different on colors.
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for
electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of
liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only
and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and
obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the
content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s)
tested and such sample(s) are retained for 30 days only.
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM161100983902
Page:
5 of 6
4.3 Test Location
All tests were performed at:
SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch
No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China
518057
Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594
No tests were sub-contracted.
4.4 Test Facility
The test facility is recognized, certified, or accredited by the following organizations:
• CNAS (No. CNAS L2929)
CNAS has accredited SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch EMC
Lab to ISO/IEC 17025:2005 General Requirements for the Competence of Testing and Calibration
Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration
Laboratories) for the competence in the field of testing.
• A2LA (Certificate No. 3816.01)
SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the
American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01.
• VCCI
The 10m Semi-anechoic chamber and Shielded Room of SGS-CSTC Standards Technical Services
Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with
Registration No.: G-823, R-4188, T-1153 and C-2383 respectively.
• FCC – Registration No.: 556682
SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been registered
and fully described in a report filed with the (FCC) Federal Communications Commission. The
acceptance letter from the FCC is maintained in our files. Registration No.: 556682.
• Industry Canada (IC)
Two 3m Semi-anechoic chambers and the 10m Semi-anechoic chamber of SGS-CSTC Standards
Technical Services Co., Ltd. Shenzhen Branch EMC Lab have been registered by Certification and
Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 4620C-1,
4620C-2, 4620C-3.
4.5 Deviation from Standards
None.
4.6 Abnormalities from Standard Conditions
None.
4.7 Other Information Requested by the Customer
None.
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for
electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of
liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only
and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and
obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the
content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s)
tested and such sample(s) are retained for 30 days only.
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM161100983902
Page:
6 of 6
SAR Evaluation
5.1 RF Exposure Compliance Requirement
5.1.1 Standard Requirement
According to KDB447498D01 General RF Exposure Guidance v06
4.3.1. Standalone SAR test exclusion considerations
Unless specifically required by the published RF exposure KDB procedures, standalone 1-g
head or body and 10-g extremity SAR evaluation for general population exposure conditions, by
measurement or numerical simulation, is not required when the corresponding SAR Exclusion
Threshold condition, listed below, is satisfied.
5.1.2 Limits
The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances
≤ 50 mm are determined by:
[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·
[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where
 f(GHz) is the RF channel transmit frequency in GHz
 Power and distance are rounded to the nearest mW and mm before calculation17
 The result is rounded to one decimal place for comparison
The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and
for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation
distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion
5.1.3 EUT RF Exposure
The Max Conducted Peak Output Power is -4.66dBm in Lowest channel(2.402GHz);
-4.66dBm logarithmic terms convert to numeric result is nearly 0.34mW
According to the formula. calculate the test exclusion thresholds:
[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·
[√f(GHz)]
General RF Exposure = (0.34mW / 5 mm ) x √2.402GHz = 0.105 ①
SAR requirement:
S= 3.0
②;
① < ②.
So the SAR report is not required.
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for
electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of
liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only
and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and
obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the
content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s)
tested and such sample(s) are retained for 30 days only.
Download: WS-SQB908B Saint Angelo Bluetooth Selfie Stick Test Report SZEM161100983902x Winners'Sun Plastic & Electronic (Shenzhen) Co., Ltd.
Mirror Download [FCC.gov]WS-SQB908B Saint Angelo Bluetooth Selfie Stick Test Report SZEM161100983902x Winners'Sun Plastic & Electronic (Shenzhen) Co., Ltd.
Document ID3285200
Application IDRyLRdfXLEPO2P9S6LbZ/gg==
Document DescriptionTest Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize157.95kB (1974392 bits)
Date Submitted2017-02-16 00:00:00
Date Available2017-02-16 00:00:00
Creation Date2017-02-15 17:17:05
Producing SoftwareGPL Ghostscript 8.64
Document Lastmod2017-02-15 09:17:06
Document TitleSZEM161100983902x
Document CreatorPScript5.dll Version 5.2.2
Document Author: karen-l_liu

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.3
Linearized                      : No
Encryption                      : Standard V2.3 (128-bit)
User Access                     : Print, Print high-res
Page Count                      : 6
Create Date                     : 2017:02:15 17:17:05+08:00
Title                           : Microsoft Word - SZEM161100983902.docx
Producer                        : GPL Ghostscript 8.64
Author                          : karen-l_liu
Creator                         : PScript5.dll Version 5.2.2
Modify Date                     : 2017:02:15 09:17:06Z

Facebook Twitter Google+ RSS © FCCID.io 2017
