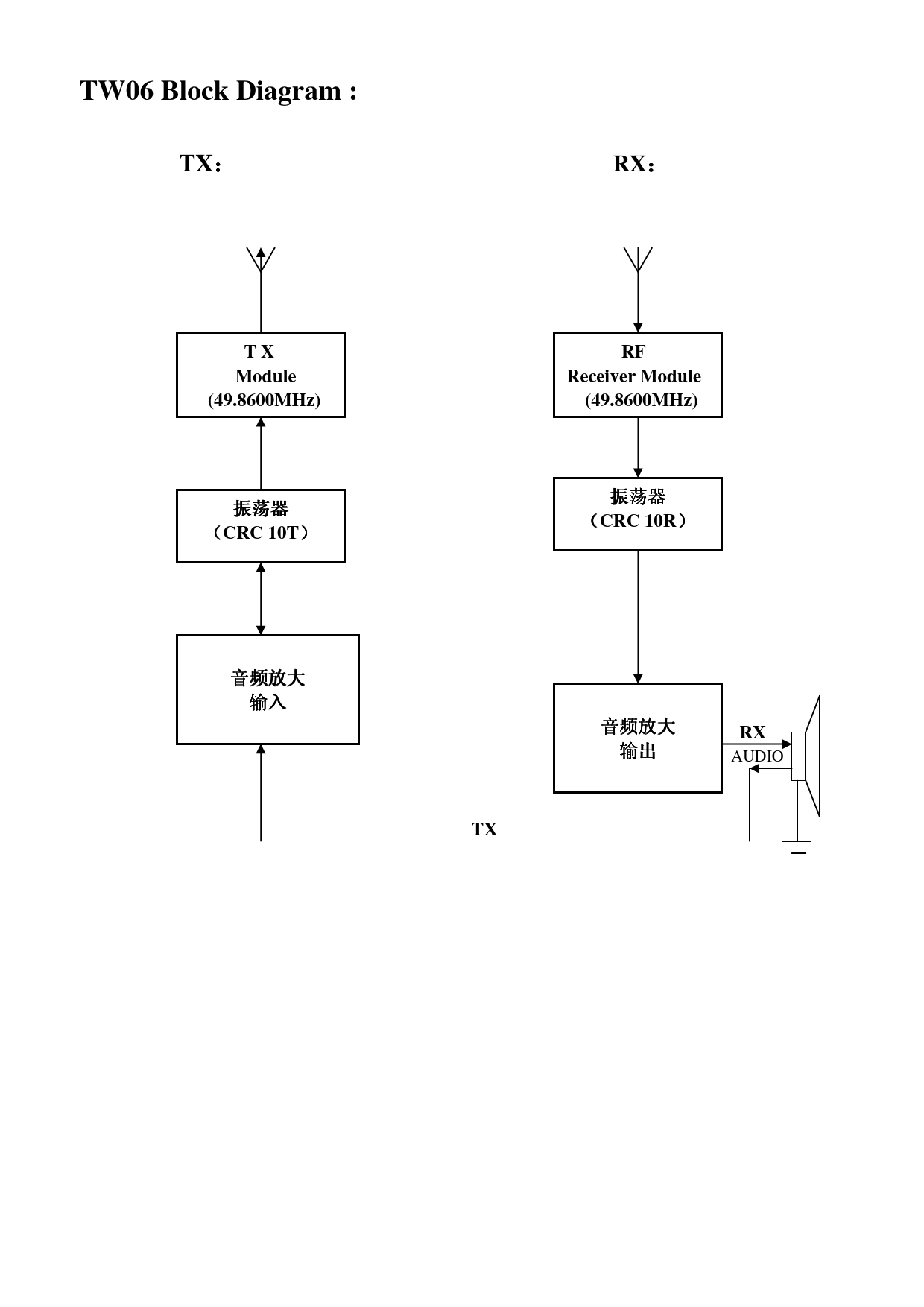

TW06 BARBIE WALKIE TALKIE Block Diagram - FCC ID UU8-TW06

FCC ID UU8-TW06

BLOCK DIAGRAM

BARBIE WALKIE TALKIE

by Lexibook America

Document preview loads when visible.

Document Details

FCC IDUU8-TW06
Document ID829017
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document TitleBLOCK DIAGRAM
ApplicantLexibook America
Equipment ClassBARBIE WALKIE TALKIE
Product CodeTW06
Application IDbFBt7plbpuMYAbINNNg/5w==
Application PurposeOriginal Equipment
Application Date2007-08-14
Frequency Range49.86 MHz
FRN0015850894
Test FirmCMA Industrial Development Foundations Limited
Certified ByMAURICE OUJEVOLK VP SALES
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-08-14
Available2007-08-14
Created2007-08-14
Modified2007-08-14
Pages1
File TypeAdobe Acrobat PDF
File Size14958
File SHA-25616b27c19135f7e3f35e4a2297f79d1bfb007ad7731725869813ff8b964a6543a
PDF Metadata AuthorFCC
PDF Metadata ProducerAFPL Ghostscript 7.03|ApCrypt 2.2 Linux 7 SPDF_1081 Jan 15 2003
FCC.gov SourcesFCC.gov 829017
