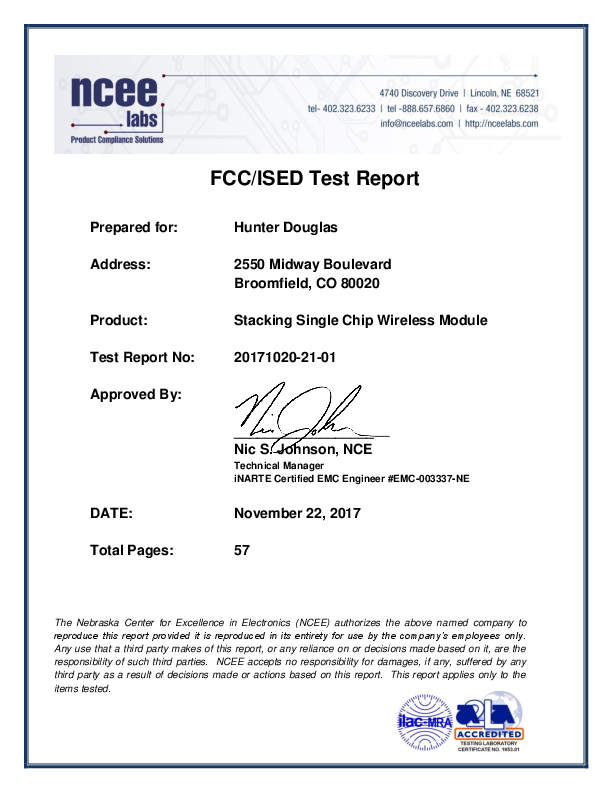

FCC/ISED Test Report
Prepared for:
Hunter Douglas
Address:
2550 Midway Boulevard
Broomfield, CO 80020
Product:
Stacking Single Chip Wireless Module
Test Report No:
20171020-21-01
Approved By:
__________________
Nic S. Johnson, NCE
Technical Manager
iNARTE Certified EMC Engineer #EMC-003337-NE
DATE:
November 22, 2017
Total Pages:
57
The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to
reproduce this report provided it is reproduced in its entirety for use by the company’s employees only.
Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the
responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any
third party as a result of decisions made or actions based on this report. This report applies only to the
items tested.
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
REVISION PAGE
Rev. No.
Date
20 November 2017
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Description
Original – NJohnson
Prepared by KVepuri
Page 2 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
CONTENTS
Revision Page ................................................................................................................................................................ 2
Tables of Figures ...................................................................................................................................................... 4
Table of Tables .......................................................................................................................................................... 5
1.0
Summary of test results ............................................................................................................................. 6
2.0
EUT Description .......................................................................................................................................... 7
3.0
4.0
2.1
Equipment under test ........................................................................................................................ 7
2.2
Description of test modes ................................................................................................................ 8
2.3
Description of support units ............................................................................................................ 8
Laboratory description .............................................................................................................................. 9
3.1
Laboratory details .............................................................................................................................. 9
3.2
Test personnel .................................................................................................................................... 9
3.3
Test equipment ................................................................................................................................. 10
Detailed results ......................................................................................................................................... 11
4.1
Duty Cycle ......................................................................................................................................... 11
4.2
Radiated emissions ......................................................................................................................... 16
4.3
Peak Output Power .......................................................................................................................... 27
4.4
Bandwidth ......................................................................................................................................... 31
4.5
Bandedges ........................................................................................................................................ 42
4.6
Power Spectral Density................................................................................................................... 48
4.7
Conducted AC Mains Emissions................................................................................................... 52
Appendix A - Sample Calculation ........................................................................................................................ 54
Appendix B – Measurement Uncertainty ............................................................................................................ 56
REPORT END........................................................................................................................................................... 57
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 3 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
TABLES OF FIGURES
Figure Number
Page
Figure 1 - Radiated Emissions Test Setup .................................................................................................................... 12
Figure 2 – Duty Cycle 1 .................................................................................................................................................... 13
Figure 3 – Duty Cycle 2 .................................................................................................................................................... 14
Figure 4 – Maximum Pulse Width ................................................................................................................................... 15
Figure 5 - Radiated Emissions Test Setup .................................................................................................................... 18
Figure 6 - Radiated Emissions Plot, Receive ................................................................................................................ 19
Figure 7 - Radiated Emissions Plot, Low Channel ....................................................................................................... 21
Figure 8 - Radiated Emissions Plot, Mid Channel ........................................................................................................ 23
Figure 9 - Radiated Emissions Plot, High Channel ...................................................................................................... 25
Figure 10 – Peak Output Power Measurements Test Setup ...................................................................................... 27
Figure 11 – Output Power, Low Channel. 2.41 dBm ................................................................................................... 28
Figure 12 - Output Power, Mid Channel, 2.02 dBm ..................................................................................................... 29
Figure 13 - Output Power, High Channel, 2.41 dBm ................................................................................................... 30
Figure 14 - Bandwidth Measurements Test Setup ....................................................................................................... 32
Figure 15 - 99% Occupied Bandwidth, Low Channel. 2.12 MHz ............................................................................... 33
Figure 16 - 99% Occupied Bandwidth, Mid Channel, 1.96 MHz ................................................................................ 34
Figure 17 - 99% Occupied Bandwidth, High Channel, 2.02 MHz .............................................................................. 35
Figure 18 – 6dB Bandwidth, Low Channel, 825.65 kHz .............................................................................................. 36
Figure 19 - 6dB Bandwidth, Mid Channel, 849.69 kHz................................................................................................ 37
Figure 20 - 6dB Bandwidth, High Channel, 897.79 kHz .............................................................................................. 38
Figure 21 – Output Power, Low Channel. 2.41 dBm ................................................................................................... 39
Figure 22 - Output Power, Mid Channel, 2.02 dBm ..................................................................................................... 40
Figure 23 - Output Power, High Channel, 2.41 dBm ................................................................................................... 41
Figure 24 - Band-edge Measurement, Low Channel, Restricted Frequency ........................................................... 44
Figure 25 - Band-edge Measurement, Low Channel, Fundamental ......................................................................... 45
Figure 26 - Band-edge Measurement, High Channel, Restricted Frequency .......................................................... 46
Figure 27 - Band-edge Measurement, High Channel, Fundamental ......................................................................... 47
Figure 28 – Power Spectral Density, Low Channel ..................................................................................................... 49
Figure 29 – Power Spectral Density, Mid Channel ...................................................................................................... 50
Figure 30 – Power Spectral Density, High Channel ..................................................................................................... 51
Figure 31 - Conducted Emissions Plot ........................................................................................................................... 53
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 4 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
TABLE OF TABLES
Table Number
Page
Table 1 - Radiated Emissions Quasi-peak Measurements, Receive ................................................................ 19
Table 2 - Radiated Emissions Peak Measurements vs. Average Limit, Receive .............................................. 20
Table 3 - Radiated Emissions Quasi-peak Measurements, Low Channel ........................................................ 21
Table 4 - Radiated Emissions Average Measurements, Low Channel ............................................................. 22
Table 5 - Radiated Emissions Peak Measurements, Low Channel................................................................... 22
Table 6 - Radiated Emissions Quasi-peak Measurements, Mid Channel ......................................................... 23
Table 7 - Radiated Emissions Average Measurements, Mid Channel .............................................................. 24
Table 8 - Radiated Emissions Peak Measurements, Mid Channel ................................................................... 24
Table 9 - Radiated Emissions Quasi-peak Measurements, High Channel ....................................................... 25
Table 10 - Radiated Emissions Average Measurements, High Channel .......................................................... 26
Table 11 - Radiated Emissions Peak Measurements, High Channel ................................................................ 26
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 5 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
1.0
SUMMARY OF TEST RESULTS
The EUT has been tested according to the following specifications:
APPLIED STANDARDS AND REGULATIONS
Standard Section
Test Type
Result
FCC Part 15.35
RSS Gen, Issue 4, Section 6.10
Duty Cycle
Pass
FCC Part 15.247(b)(3)
RSS-247 Issue 2 Section 5.24
Peak output power
Pass
FCC Part 15.247(a)(2)
RSS-247 Issue 2 Section 5.2
Bandwidth
Pass
Receiver Radiated
Emissions
Pass
FCC Part 15.209 (restricted bands), 15.247(d) (unrestricted)
RSS-247 Issue 2 Section 5.5, RSS-Gen Issue 4, Section 8.9
Transmitter Radiated
Emissions
Pass
FCC Part 15.247(a)(2)
RSS-247 Issue 2 Section 5.2
Power Spectral Density
Pass
FCC Part 15.209, 15.247(d)
RSS-247 Issue 2 Section 11.13
Band Edge Measurement
Pass
Conducted Emissions
Pass
FCC Part 15.209
RSS-Gen Issue 4, Section 7.1
FCC Part 15.207
RSS-Gen Issue 4, Section 7.1
See Section 4 for details on the test methods used for each test.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 6 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
2.0
EUT DESCRIPTION
2.1
EQUIPMENT UNDER TEST
EUT
Stacking Single Chip Module
Description
The Equipment Under Test (EUT) was a wireless module used to
control window blinds. It has transmit and receive capabilities. It is
intended to be paired with a remote.
EUT Received
2017 NOV 7
EUT Tested
2017 NOV 10 - 13
Serial No.
1710209/1-0007
Operating Band
2400.0 - 2483.5 GHz
Device Type
DTS
18 VDC Power Supply
Model: TRG70A180
Input: 100-240VAC, 1.5A
Output: 18V, 3.9A
Power Supply
Note: the power supply was used as a representative “off-the-shelf”
sample and the EUT will not be sold with a specific power supply. It
contains the required power regulation to meet the modular approval
requirements.
NOTE: For more detailed features description, please refer to the manufacturer's specifications or
user's manual.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 7 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
2.2
DESCRIPTION OF TEST MODES
The EUT operates on, and was tested at the frequencies below:
Channel
Low
Middle
High
Frequency
2407
2440
2480
These are the only three representative channels tested in the frequency range according to FCC
Part 15.31 and RSS-Gen Table A1. See the operational description for a list of all channel frequency
and designations.
The EUT was tested as module. This EUT was set to transmit in a worse-case scenario with
modulation on. The manufacturer modified the unit to transmit continuously on the lowest, highest
and one channel in the middle.
2.3
DESCRIPTION OF SUPPORT UNITS
None
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 8 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
3.0
LABORATORY DESCRIPTION
3.1
LABORATORY DETAILS
All testing was performed at the following Facility:
The Nebraska Center for Excellence in Electronics (NCEE Labs)
4740 Discovery Drive
Lincoln, NE 68521
A2LA Certificate Number:
FCC Accredited Test Site Designation No:
Industry Canada Test Site Registration No:
NCC CAB Identification No:
1953.01
US1060
4294A-1
US0177
Environmental conditions varied slightly throughout the tests:
Relative humidity of 35  4%
Temperature of 22  3 Celsius
3.2
No.
TEST PERSONNEL
PERSONNEL
1 Karthik Vepuri
2 Andrew Reicks
3 Nic Johnson
TITLE
EMC Test Engineer
EMC Test Technician
Technical Manager
ROLE
Testing, Supervision of Testing
Testing
Review of Results
Notes:
All personnel are permanent staff members of NCEE Labs. No testing or review was sub-contracted
or performed by sub-contracted personnel.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 9 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
3.3
TEST EQUIPMENT
DESCRIPTION AND
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST
CALIBRATION
DATE
CALIBRATION
DUE DATE
Rohde & Schwarz Test Receiver
ES126
100037
24 Jan 2017
24 Jan 2018
EMCO Biconilog Antenna
3142B
1647
02 Aug 2017
02 Aug 2018
EMCO Horn Antenna
3115
6416
25 Jan 2016
25 Jan 2018
EMCO Horn Antenna
3116
2576
26 Jan 2016
26 Jan 2018
Rohde & Schwarz Preamplifier
TS-PR18
3545700803
9 Feb 2017*
9 Feb 2018*
Trilithic High Pass Filter
6HC330
23042
9 Feb 2017*
9 Feb 2018*
Rohde & Schwarz LISN
ESH3-Z5
100023
23 Jan 2017
23 Jan 2018
RF Cable (preamplifier to antenna)
MFR-57500
01-07-002
09 Feb 2017*
09 Feb 2018*
FSCM 64639
01E3872
09 Feb 2017*
09 Feb 2018*
FSCM 64639
01E3874
09 Feb 2017*
09 Feb 2018*
FSCM 64639
01E3871
09 Feb 2017*
09 Feb 2018*
FSCM 64639
01F1206
09 Feb 2017*
09 Feb 2018*
RF switch – Rohde and Schwarz
TS-RSP
1113.5503.14
09 Feb 2017*
09 Feb 2018*
N connector bulkhead (10m
chamber)
PE9128
NCEEBH1
09 Feb 2017*
09 Feb 2018*
N connector bulkhead (control room)
PE9128
NCEEBH2
09 Feb 2017*
09 Feb 2018*
RF Cable (antenna to 10m chamber
bulkhead)
RF Cable (10m chamber bulkhead
to control room bulkhead)
RF Cable (Control room bulkhead to
RF switch)
RF Cable (RF switch to test
receiver)
*Internal Characterization
Notes:
All equipment is owned by NCEE Labs and stored permanently at the laboratory. All calibrations are
performed by A2LA or NVLAP accredited calibration laboratories.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 10 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
4.0
DETAILED RESULTS
4.1
DUTY CYCLE
Test Method:
ANSI C63.10:2013, Section 7.5
Limits for duty cycle:
As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average
detector, however, the peak field strength of any emission shall not exceed the maximum permitted
average limits by more than 20dB under any condition of modulation.
(c) Unless otherwise specified, e.g., §§15.255(b), and 15.256(l)(5), when the radiated emission limits
are expressed in terms of the average value of the emission, and pulsed operation is employed, the
measurement field strength shall be determined by averaging over one complete pulse train,
including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative
(provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train
exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute
voltage during a 0.1 second interval during which the field strength is at its maximum value. The exact
method of calculating the average field strength shall be submitted with any application for
certification or shall be retained in the measurement data file for equipment subject to Supplier's
Declaration of Conformity.
Test procedures:
Because the EUT did not have provisions for making conducted measurements, the duty cycle was
measured in a 10m semi-anechoic chamber with the test receiver set to “Zero span” mode.
All field strength or power measurements shown in these plots are arbitrary and only the times and
levels of the EUT relative to the remote are considered for compliance.
Deviations from test standard:
No deviation.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 11 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Test setup:
Figure 1 - Radiated Emissions Test Setup
EUT operating conditions:
The EUT was powered by 18 VDC unless specified. The duty cycle was only tested on the lowest
channel as it will be identical for all channels.
The EUT will only transmit when triggered by a paired remote. In order to measure the maximum
possible duty cycle in a user application, a button was held down on the remote.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 12 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Test results:
Duty cycle correction = 20 dB
Delta 1 [T1]
Ref Lvl
-25.1 dBm
RBW
1 MHz
-34.21 dB
VBW
100 kHz
2.004008 ms
SWT
100 ms
RF Att
Unit
10 dB
dBm
-25.1
1 [T1]
-29.10 dBm
15.631263 ms
-30
1 [T1]
-34.21 dB
2.004008 ms
-35
-40
IN1
1VIEW
1MA
-45
-50
-55
-60
-65
-70
-75.1
Center 2.407234469 GHz
Date:
10.NOV.2017
10 ms/
15:24:07
Figure 2 – Duty Cycle 1
Maximum 1 pulse can occur in any 100 ms window
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 13 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Delta 3 [T1]
Ref Lvl
0.04 dB
-25.1 dBm
8.964930 s
RBW
1 MHz
VBW
100 kHz
SWT
11.5 s
RF Att
Unit
10 dB
dBm
-25.1
1 [T1]
-30
-30.33 dBm
2.258517 s
3 [T1]
0.04 dB
8.964930 s
-40
1 [T1]
-0.02 dB
2.834669 s
2 [T1]
-50
0.05 dB
5.991984 s
1VIEW
IN1
1AP
-60
-70
-80
-90
-100
-105
Center 2.407234469 GHz
Date:
10.NOV.2017
1.15 s/
15:26:46
Figure 3 – Duty Cycle 2
Maximum of 1 pulse can occur in any 100 ms window
Note: the signal between -60 and -70 dBm are from the remote and are not considered in the duty cycle. The
remote was required to trigger the EUT.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 14 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Delta 1 [T1]
Ref Lvl
-25.1 dBm
RBW
1 MHz
-42.94 dB
VBW
10 MHz
1.889780 ms
SWT
20.5 ms
RF Att
Unit
10 dB
dBm
-25.1
1 [T1]
-30
-31.94 dBm
10.188377 ms
1 [T1]
-42.94 dB
1.889780 ms
-40
IN1
-50
1VIEW
1MA
-60
-70
-80
-90
-100
-105
Center 2.407234469 GHz
Date:
10.NOV.2017
2.05 ms/
15:29:01
Figure 4 – Maximum Pulse Width
Measurement
On Time
Period*
Duration
(ms)
1.89
100
Reference
Figure
*Maximum 100ms
On time / Period =
0.019
Duty Cycle Factor =
20×log(duty cycle)**
-20
**Minimum -20 dB allowed
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 15 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
4.2
RADIATED EMISSIONS
Test Method:
ANSI C63.10:2013, Section 6.5, 6.6, 11.11, 11.12
Limits for radiated emissions measurements:
Emissions radiated outside of the specified bands shall be applied to the limits in 15.209 as
followed:
FREQUENCIES
(MHz)
0.009-0.490
0.490-1.705
1.705-30.0
30-88
88-216
216-960
Above 960
FIELD
STRENGTH
(µV/m)
2400/F(kHz)
24000/F(kHz)
30
100
150
200
500
MEASUREMENT
DISTANCE (m)
300
30
NOTE:
1. The lower limit shall apply at the transition frequencies.
2. Emission level (dBuV/m) = 20 * log * Emission level (μV/m).
3. As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based
on average detector, however, the peak field strength of any emission shall not exceed the
maximum permitted average limits by more than 20dB under any condition of modulation.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 16 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Test procedures:
a. The EUT was placed on the top of a rotating table above the ground plane in a 10 meter
semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the
highest radiation. The table was 0.8m high for measurements form 30MHz-1Ghz and 1.5m
for measurements from 1GHz and higher.
b. The EUT was set 3 meters away from the interference-receiving antenna, which was
mounted on the top of a variable-height antenna tower.
c. The antenna was a broadband antenna, and its height is varied from one meter to four
meters above the ground to determine the maximum value of the field strength. Both
horizontal and vertical polarizations of the antenna are used to make the measurement.
d. For each suspected emission, the EUT was arranged to maximize its emissions and then
the antenna height was varied from 1 meter to 4 meters and the rotating table was turned
from 0 degrees to 360 degrees to find the maximum emission reading.
e. The test-receiver system was set to use a peak detector with a specified resolution
bandwidth. For spectrum analyzer measurements, the composite maximum of several
analyzer sweeps was used for final measurements.
f. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then
testing could be stopped and the peak values of the EUT would be reported. Otherwise the
emissions that did not have 10 dB margin would be re-tested one by one using peak, quasipeak or average method as specified and then reported in a data sheet.
g. The EUT was maximized in all 3 orthogonal positions. The results are presented for the
axis that had the highest emissions.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 17 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
NOTE:
1. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is
120kHz for Peak detection (PK) and Quasi-peak detection (QP) at frequencies below 1GHz.
2. The resolution bandwidth 1 MHz for all measurements and at frequencies above 1GHz, A
peak detector was used for all measurements above 1GHz. Measurements were made with
an EMI Receiver.
Deviations from test standard:
No deviation.
Test setup:
Figure 5 - Radiated Emissions Test Setup
EUT operating conditions
The EUT was powered by 18 VDC unless specified and set to transmit continuously on the
lowest frequency channel, highest frequency channel and one in the middle of its operating
range.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 18 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Test results:
Figure 6 - Radiated Emissions Plot, Receive
Table 1 - Radiated Emissions Quasi-peak Measurements, Receive
Frequency Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
36.840000
14.43
40.00
25.60
75.420000
18.10
40.00
21.90
91.620000
34.93
43.50
8.60
97.020000
30.90
43.50
12.60
123.960000
25.64
43.50
17.90
134.700000
22.20
43.50
21.30
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 19 of 57
Height
cm.
127
308
136
99
99
101
Angle
deg.
358
237
251
192
207
Pol
VERT
VERT
VERT
VERT
VERT
VERT
Axis
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Table 2 - Radiated Emissions Peak Measurements vs. Average Limit, Receive
Frequency
Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
2401.800000
36.26
54.00
17.70
4810.000000
38.63
54.00
15.40
7224.000000
43.53
54.00
10.50
9613.200000
45.99
54.00
8.00
12041.200000
43.46
54.00
10.50
Height
cm.
170
177
382
298
139
Angle
deg.
144
197
106
100
Pol
HORI
HORI
VERT
HORI
VERT
Axis
Peak measurements were compared to average limit and found to be compliant so average measurements
were not performed
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 20 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Figure 7 - Radiated Emissions Plot, Low Channel
Table 3 - Radiated Emissions Quasi-peak Measurements, Low Channel
Frequency Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
91.740000
34.84
43.50
8.70
95.160000
17.76
43.50
25.80
97.200000
25.35
43.50
18.20
124.200000
14.56
43.50
29.00
291.360000
22.34
46.00
23.70
302.220000
22.31
46.00
23.70
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 21 of 57
Height
cm.
136
162
398
100
101
99
Angle
deg.
255
118
256
167
359
11
Pol
VERT
VERT
VERT
VERT
HORI
VERT
Axis
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Table 4 - Radiated Emissions Average Measurements, Low Channel
Frequency
Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
2407.000000
79.96
NA
NA
4814.000000
34.60
54.00
19.40
7220.800000
11.39
54.00
42.61
9628.000000
29.43
54.00
24.57
12027.600000
22.98
54.00
31.02
14468.600000
29.37
54.00
24.63
16849.800000
31.12
54.00
22.88
Height
cm.
163
217
100
150
352
204
137
Angle
deg.
28
51
82
36
260
153
326
Pol
HORI
HORI
VERT
HORI
VERT
HORI
HORI
Axis
Note: Average Level = Peak Level – Duty Cycle Correction Factor
Duty Cycle Correction Factor is calculated in Figures 6, 7 and 8. 20dB was used.
Table 5 - Radiated Emissions Peak Measurements, Low Channel
Frequency
Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
2407.000000
99.96
NA
NA
4814.000000
54.60
74.00
19.40
7220.800000
31.39
74.00
42.61
9628.000000
49.43
74.00
24.57
12027.600000
42.98
74.00
31.02
14468.600000
49.37
74.00
24.63
16849.800000
51.12
74.00
22.88
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 22 of 57
Height
cm.
163
217
100
150
352
204
137
Angle
deg.
28
51
82
36
260
153
326
Pol
HORI
HORI
VERT
HORI
VERT
HORI
HORI
Axis
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Figure 8 - Radiated Emissions Plot, Mid Channel
Table 6 - Radiated Emissions Quasi-peak Measurements, Mid Channel
Frequency Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
36.840000
12.63
40.00
27.40
86.280000
21.85
40.00
18.10
91.680000
35.02
43.50
8.50
97.080000
31.12
43.50
12.40
124.020000
15.93
43.50
27.60
134.820000
23.15
43.50
20.40
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 23 of 57
Height
cm.
377
211
136
99
101
99
Angle
deg.
246
230
261
251
165
328
Pol
VERT
VERT
VERT
VERT
VERT
VERT
Axis
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Table 7 - Radiated Emissions Average Measurements, Mid Channel
Frequency
Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
2440.000000
80.39
NA
NA
4880.000000
35.89
54.00
18.11
7319.800000
28.14
54.00
25.86
9759.800000
31.30
54.00
22.70
12220.000000
23.84
54.00
30.16
14668.800000
30.99
54.00
23.01
17067.400000
32.65
54.00
21.35
Height
cm.
153
100
100
163
140
325
359
Angle
deg.
83
330
234
200
258
Pol
HORI
HORI
VERT
HORI
HORI
HORI
HORI
Axis
Note: Average Level = Peak Level – Duty Cycle Correction Factor
Duty Cycle Correction Factor is calculated in Figures 6, 7 and 8. 20dB was used.
Table 8 - Radiated Emissions Peak Measurements, Mid Channel
Frequency
Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
2440.000000
100.39
NA
NA
4880.000000
55.89
74.00
18.11
7319.800000
48.14
74.00
25.86
9759.800000
51.30
74.00
22.70
12220.000000
43.84
74.00
30.16
14668.800000
50.99
74.00
23.01
17067.400000
52.65
74.00
21.35
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 24 of 57
Height
cm.
153
100
100
163
140
325
359
Angle
deg.
83
330
234
200
258
Pol
HORI
HORI
VERT
HORI
HORI
HORI
HORI
Axis
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Figure 9 - Radiated Emissions Plot, High Channel
Table 9 - Radiated Emissions Quasi-peak Measurements, High Channel
Frequency Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
36.840000
13.25
40.00
26.70
86.220000
21.66
40.00
18.30
91.620000
34.77
43.50
8.70
97.020000
25.82
43.50
17.70
123.960000
25.42
43.50
18.10
134.700000
22.36
43.50
21.20
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 25 of 57
Height
cm.
257
102
131
113
105
99
Angle
deg.
16
255
241
251
182
344
Pol
VERT
VERT
VERT
VERT
VERT
VERT
Axis
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Table 10 - Radiated Emissions Average Measurements, High Channel
Frequency
Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
2480.000000
80.08
NA
NA
4960.000000
28.27
54.00
25.73
7440.000000
18.60
54.00
35.40
9920.000000
19.31
54.00
34.69
12420.200000
12.11
54.00
41.89
14848.800000
18.09
54.00
35.91
17356.400000
25.88
54.00
28.12
Height
cm.
153
113
112
230
399
287
147
Angle
deg.
10
280
82
250
305
55
Pol
HORI
VERT
VERT
VERT
VERT
HORI
VERT
Axis
Note: Average Level = Peak Level – Duty Cycle Correction Factor
Duty Cycle Correction Factor is calculated in Figures 6, 7 and 8. 20dB was used.
Table 11 - Radiated Emissions Peak Measurements, High Channel
Frequency
Level
Limit
Margin
MHz
dBµV/m dBµV/m dB
2480.000000
100.08
NA
NA
4960.000000
48.27
74.00
25.73
7440.000000
38.60
74.00
35.40
9920.000000
39.31
74.00
34.69
12420.200000
32.11
74.00
41.89
14848.800000
38.09
74.00
35.91
17356.400000
45.88
74.00
28.12
Height
cm.
153
113
112
230
399
287
147
Angle
deg.
10
280
82
250
305
55
Pol
HORI
VERT
VERT
VERT
VERT
HORI
VERT
Axis
REMARKS:
1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB)
2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB)
3. The other emission levels were very low against the limit.
4. Margin value = Emission level – Limit value.
5. The EUT was measured in all 3 orthagonal axis. It was found that the Y-axis produced the highest
emissions, and this orientation was used for all testing. See the test setup photo exhibit for details on the
orientations.
6. The axis shown in the last column of the data tables shows the axis where the emissions were found to be
the highest.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 26 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
4.3
PEAK OUTPUT POWER
Test Method: ANSI C63.10, Section(s) 11.9.1.1
Limits of bandwidth measurements:
The maximum allowed peak output power is 30 dBm.
Test procedures:
The EUT was connected to the spectrum analyzer directly with a low-loss shielded coaxial
cable with 3 MHz RBW and 10 MHz VBW. The RBW was set to a value larger than the DTS
bandwidth.
Deviations from test standard:
No deviation.
Test setup:
Figure 10 – Peak Output Power Measurements Test Setup
*0.8 dB of cable loss was used and it was accounted for in the plots
EUT operating conditions:
The EUT was powered by 18 VDC unless specified and set to transmit continuously on the
lowest frequency channel, highest frequency channel and one in the middle of its operating
range.
Test results:
CHANNEL
Peak Output Power
CHANNEL
PEAK OUTPUT
FREQUENCY
POWER
(MHz)
(dBm)
METHOD
RESULT
Low
2407
2.41
Conducted
PASS
Middle
2440
2.02
Conducted
PASS
High
2480
2.41
Conducted
PASS
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 27 of 57
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Figure 11 – Output Power, Low Channel. 2.41 dBm
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 28 of 57
Rev
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Figure 12 - Output Power, Mid Channel, 2.02 dBm
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 29 of 57
Rev
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Figure 13 - Output Power, High Channel, 2.41 dBm
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 30 of 57
Rev
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
4.4
BANDWIDTH
Test Method: ANSI C63.10, Section(s) 11.8.1
Limits of bandwidth measurements:
The 6dB bandwidth of the signal must be greater than 500 kHz.
Test procedures:
Bandwidth measurement was taken at a distance of 3m from the EUT. The bandwidth of the
fundamental frequency was measured by spectrum analyzer with 100 kHz RBW and 300 kHz
VBW.
The 99% occupied is defined as the bandwidth at which 99% of the signal power is found.
This corresponds to 20dB down from the maximum power level. The maximum power was
measured with the largest resolution bandwidth possible (10MHz) and this value was
recorded. The signal was then captured with a 1 MHz resolution bandwidth and the
frequencies where the measurements were 20dB below the maximum power were marked.
The bandwidth between these frequencies was recorded as the 99% occupied bandwidth.
The 6 dB bandwidth is defined as the bandwidth of which is higher than peak power minus
6dB.
Deviations from test standard:
No deviation.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 31 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Test setup:
Figure 14 - Bandwidth Measurements Test Setup
EUT operating conditions:
The EUT was powered by 18 VDC unless specified and set to transmit continuously on the
lowest frequency channel, highest frequency channel and one in the middle of its operating
range.
Test results:
99% Occupied Bandwidth
CHANNEL
99% Occupied
CHANNEL FREQUENCY
BW (MHz)
(MHz)
Low
2407
2.12
Middle
2440
1.96
High
2480
2.02
6dB Bandwidth
CHANNEL
CHANNEL
FREQUENCY
(MHz)
6 dB BW (kHz)
Low
2407
825.65
Middle
2440
849.69
High
2480
897.79
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 32 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
100 kHz
Ref Lvl
Marker 2 [T2]
-62.24 dBm
VBW
300 kHz
-20 dBm
2.40592184 GHz
SWT
RF Att
5 ms
Unit
10 dB
dBm
-20
2 [T2]
-62.24 dBm
2.40592184 GHz
1 [T1]
-30
-42.44 dBm
2.40677956 GHz
1 [T2]
-0.20 dB
2.11623246 MHz
3 [T2]
-40
-62.43 dBm
2.40803808 GHz IN1
1VIEW
1MA
2MAX
2MA
-50
-60
-70
-80
-90
Center 2.407 GHz
Date:
10.NOV.2017
400 kHz/
Span 4 MHz
13:58:19
Figure 15 - 99% Occupied Bandwidth, Low Channel. 2.12 MHz
Note: the trace at the top where Marker 1 is located was made with a 10MHz resolution bandwidth and saved
on the screen. The trace on the bottom was made with a 100 kHz RBW.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 33 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
100 kHz
Ref Lvl
Marker 2 [T2]
-61.30 dBm
VBW
300 kHz
-20 dBm
2.43900200 GHz
SWT
RF Att
5 ms
Unit
10 dB
dBm
-20
2 [T2]
-61.30 dBm
2.43900200 GHz
1 [T1]
-30
-41.69 dBm
2.44054108 GHz
1 [T2]
-0.26 dB
1.96392786 MHz
-40
3 [T2]
-61.56 dBm
2.44096593 GHz IN1
1VIEW
1MA
2MAX
2MA
-50
-60
-70
-80
-90
Center 2.44 GHz
Date:
10.NOV.2017
400 kHz/
Span 4 MHz
14:21:36
Figure 16 - 99% Occupied Bandwidth, Mid Channel, 1.96 MHz
Note: the trace at the top where Marker 1 is located was made with a 10MHz resolution bandwidth and saved
on the screen. The trace on the bottom was made with a 100 kHz RBW.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 34 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
100 kHz
Ref Lvl
Marker 2 [T2]
-61.97 dBm
VBW
300 kHz
-20 dBm
2.47896192 GHz
SWT
RF Att
5 ms
Unit
10 dB
dBm
-20
2 [T2]
-61.97 dBm
2.47896192 GHz
1 [T1]
-30
-42.44 dBm
2.48022044 GHz
1 [T2]
-0.42 dB
2.02004008 MHz
3 [T2]
-40
-62.39 dBm
2.48098196 GHz IN1
1VIEW
1MA
2MAX
2MA
-50
-60
-70
-80
-90
Center 2.48 GHz
Date:
10.NOV.2017
400 kHz/
Span 4 MHz
14:39:09
Figure 17 - 99% Occupied Bandwidth, High Channel, 2.02 MHz
Note: the trace at the top where Marker 1 is located was made with a 10MHz resolution bandwidth and saved
on the screen. The trace on the bottom was made with a 100 kHz RBW.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 35 of 57
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Figure 18 – 6dB Bandwidth, Low Channel, 825.65 kHz
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 36 of 57
Rev
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Figure 19 - 6dB Bandwidth, Mid Channel, 849.69 kHz
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 37 of 57
Rev
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Figure 20 - 6dB Bandwidth, High Channel, 897.79 kHz
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 38 of 57
Rev
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Figure 21 – Output Power, Low Channel. 2.41 dBm
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 39 of 57
Rev
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Figure 22 - Output Power, Mid Channel, 2.02 dBm
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 40 of 57
Rev
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Figure 23 - Output Power, High Channel, 2.41 dBm
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 41 of 57
Rev
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
4.5
BANDEDGES
Test Method:
ANSI C63.10, Section(s) 6.10.6, 11.13.2
Limits of bandedge measurements:
For emissions outside of the allowed band of operation (2400.0MHz – 2480.0MHz), the
emission level needs to be 20dB under the maximum fundamental field strength. However, if
the emissions fall within one of the restricted bands from 15.205 the field strength levels need
to be under that of the limits in 15.209.
Test procedures:
The EUT was tested in the same method as described in section 4.3 - Bandwidth. The EUT
was oriented as to produce the maximum emission levels. The resolution bandwidth was set
to 30kHz and the EMI receiver was used to scan from the bandedge to the fundamental
frequency with a quasi-peak detector. The highest emissions level beyond the bandedge
was measured and recorded. All band edge measurements were evaluated to the general
limits in Part 15.209.
Deviations from test standard:
No deviation.
Test setup:
See Section 4.3
EUT operating conditions:
The EUT was powered by 18 VDC unless specified and set to transmit continuously on the
lowest frequency channel, highest frequency channel and one in the middle of its operating
range.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 42 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
Test results:
CHANNEL
Low (restricted)
Low (unrestricted)
High
Highest Out of Band Emissions
Band edge
Relative
Relative
/Measurement Highest out of Fundamental
Frequency
band level
Level (dBm)
(MHz)
dBm
2390.0
-96.71
-45.70
2340.0
-85.70
-45.70
2483.5
-103.13
-46.26
Delta
Min
(dBc)
51.01
40.00
56.87
25.99
20.00
26.08
Result
PASS
PASS
PASS
*Minimum delta = [highest fundamental peak field strength from Section 4.2 ] – [ Part 15.209 radiated
emissions limit. ]
From Section 4.2
Fundamental average field strength at 2407MHz for low channel = 79.96dBµV/m
Fundamental average field strength at 2480MHz for high channel = 80.08dBµV/m
Channel 1 minimum delta = 79.96 – 54.0 dBµV/m = 25.99 dBc
Channel 3 minimum delta = 80.08 – 54.0 dBµV/m = 26.08 dBc
Measurements do not include correction factors and are intended to be relative measurements only.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 43 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
30 kHz
Ref Lvl
Marker 1 [T1]
-96.71 dBm
VBW
100 kHz
-35 dBm
2.38869739 GHz
SWT
28 ms
RF Att
0 dB
Unit
dBm
-35
1 [T1]
-40
-96.71 dBm
2.38869739 GHz
-50
-60
IN1
1MAX
1MA
-70
P20
-80
-90
-100
-110
-120
-125
Start 2.38 GHz
Date:
10.NOV.2017
1 MHz/
Stop 2.39 GHz
14:06:07
Figure 24 - Band-edge Measurement, Low Channel, Restricted Frequency
The plot shows an uncorrected measurement, used for relative measurements only.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 44 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
30 kHz
Ref Lvl
Marker 1 [T1]
-45.70 dBm
VBW
100 kHz
-20 dBm
2.40697996 GHz
SWT
25 ms
RF Att
Unit
10 dB
dBm
-20
1 [T1]
-45.70 dBm
2.40697996 GHz
-30
2 [T1]
-85.69 dBm
2.40000000 GHz
1 [T1]
-40.00 dB
-40
-6.97995992 MHz
IN1
-50 1MAX
1MA
-60
-70
-80
-90
-100
-110
Start 2.4 GHz
Date:
900 kHz/
10.NOV.2017
Stop 2.409 GHz
14:04:03
Figure 25 - Band-edge Measurement, Low Channel, Fundamental
The plot shows an uncorrected measurement, used for relative measurements only.
Delta = 40 dB > 20 dB minimum
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 45 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
30 kHz
Ref Lvl
Marker 1 [T1]
-103.13 dBm
VBW
100 kHz
-35 dBm
2.48356613 GHz
SWT
46 ms
RF Att
0 dB
Unit
dBm
-35
1 [T1]
-40
-103.13 dBm
2.48356613 GHz
-50
-60
IN1
1MAX
1MA
-70
P20
-80
-90
-1001
-110
-120
-125
Start 2.4835 GHz
Date:
10.NOV.2017
1.65 MHz/
Stop 2.5 GHz
14:43:57
Figure 26 - Band-edge Measurement, High Channel, Restricted Frequency
The plot shows an uncorrected measurement, used for relative measurements only.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 46 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
30 kHz
Ref Lvl
Marker 1 [T1]
-46.26 dBm
VBW
100 kHz
-20 dBm
2.47998397 GHz
SWT
15.5 ms
RF Att
Unit
10 dB
dBm
-20
1 [T1]
-46.26 dBm
2.47998397 GHz
-30
2 [T1]
-85.63 dBm
2.48350000 GHz
1 [T1]
-40
-39.37 dB
3.51603206 MHz
IN1
-50 1MAX
1MA
-60
-70
-80
-90
-100
-110
Start 2.478 GHz
Date:
10.NOV.2017
550 kHz/
Stop 2.4835 GHz
14:42:44
Figure 27 - Band-edge Measurement, High Channel, Fundamental
The plot shows an uncorrected measurement, used for relative measurements only.
Delta = 39.37 dB > 20 dB minimum
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 47 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
4.6
POWER SPECTRAL DENSI TY
Test Method:
ANSI C63.10, Section 11.10.2
Limits of power measurements:
The maximum PSD allowed is 8 dBm.
Test procedures:
1. All measurements were taken at a distance of 3m from the EUT and listed as EIRP.
2. The resolution bandwidth was set to 3 kHz and the video bandwidth was set to 10 kHz to
capture the signal. The analyzer used a peak detector in max hold mode.
Test setup:
The field strength was measured at a distance of 3m and the EIRP was calculated using field
strength equation below each plot.
EUT operating conditions:
The EUT was powered by 18VDC unless specified and set to transmit continuously on the
lowest frequency channel, highest frequency channel and one in the middle of its operating
range.
Test results:
Power Spectral Density
EIRP RF POWER
LEVEL IN # KHz
METHOD
BW (dBm)
EIRP
-8.38
CHANNEL
CHANNEL
FREQUENCY
(MHz)
Low
2407
Middle
2440
-9.75
High
2480
-8.03
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 48 of 57
MAXIMUM
POWER LIMIT
(dBm)
RESULT
8.00
PASS
EIRP
8.00
PASS
EIRP
8.00
PASS
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
3 kHz
Ref Lvl
Marker 1 [T1]
-56.16 dBm
VBW
10 kHz
-20 dBm
2.40693988 GHz
SWT
1.15 s
RF Att
Unit
10 dB
dBm
-20
1 [T1]
-56.16 dBm
2.40693988 GHz
-30
-40
IN1
-50 1MAX
1MA
-60
-70
-80
-90
-100
-110
Center 2.407 GHz
Date:
400 kHz/
10.NOV.2017
Span 4 MHz
14:02:27
Figure 28 – Power Spectral Density, Low Channel
Spectrum Analyzer
Reading (SA)
dBm
Cable
Loss Antenna
(CL)
Factor (AF)
dB
dB
-56.08
7.60
28.31
PSD = SA +CL + AF + 107.00 - 95.23
PSD =
-8.38
dBm
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 49 of 57
dBm to
dBµV/m on
50Ω System
107.00
Convert for Field
Strength to EIRP*
-95.23
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
3 kHz
Ref Lvl
Marker 1 [T1]
-57.53 dBm
VBW
10 kHz
-35 dBm
2.43995591 GHz
SWT
1.15 s
RF Att
Unit
10 dB
dBm
-35
1 [T1]
-40
-57.53 dBm
2.43995591 GHz
-50
IN1
-60
1MAX
1MA
-70
-80
-90
-100
-110
-115
Center 2.44 GHz
Date:
400 kHz/
10.NOV.2017
Span 4 MHz
14:12:24
Figure 29 – Power Spectral Density, Mid Channel
Spectrum Analyzer
Reading (SA)
dBm
Cable
Loss Antenna
(CL)
Factor (AF)
dB
dB
-56.08
7.60
28.31
PSD = SA +CL + AF + 107.00 - 95.23
PSD =
-9.75
dBm
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 50 of 57
dBm to
dBµV/m on
50Ω System
107.00
Convert for Field
Strength to EIRP*
-95.23
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
RBW
3 kHz
Ref Lvl
Marker 1 [T1]
-56.08 dBm
VBW
10 kHz
-20 dBm
2.47999599 GHz
SWT
1.15 s
RF Att
Unit
10 dB
dBm
-20
1 [T1]
-56.08 dBm
2.47999599 GHz
-30
-40
IN1
-50 1MAX
1MA
-60
-70
-80
-90
-100
-110
Center 2.48 GHz
Date:
400 kHz/
10.NOV.2017
Span 4 MHz
14:41:44
Figure 30 – Power Spectral Density, High Channel
Spectrum Analyzer
Reading (SA)
dBm
Cable
Loss Antenna
(CL)
Factor (AF)
dB
dB
-56.08
7.60
28.31
PSD = SA +CL + AF + 107.00 - 95.23
PSD =
-8.40
dBm
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 51 of 57
dBm to
dBµV/m on
50Ω System
107.00
Convert for Field
Strength to EIRP*
-95.23
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
4.7
CONDUCTED AC MAINS EMISSIONS
Test Method:
ANSI C63.10, Section(s) 6.2
Limits for conducted emissions measurements:
FREQUENCY OF EMISSION
CONDUCTED LIMIT
(MHz)
(dBµV)
Quasi-peak
Average
0.15-0.5
66 to 56
56 to 46
0.5-5
56
46
5-30
60
50
Notes:
1. The lower limit shall apply at the transition frequencies.
2. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50
MHz.
3. All emanations from a class A/B digital device or system, including any network of
conductors and apparatus connected thereto, shall not exceed the level of field strengths
specified above.
Test Procedures:
1. The EUT was placed 0.8m above a ground reference plane and 0.4 meters from the
conducting wall of a shielded room with EUT being connected to the power mains
through a line impedance stabilization network (LISN). The LISN provides 50 ohm/
50uH of coupling impedance for the measuring instrument.
2. Both lines of the power mains connected to the EUT were checked for maximum
conducted interference as well as the ground.
3. The frequency range from 150 kHz to 30 MHz was searched. Emission levels over
10dB under the prescribed limits are not reported.
4. Results were compared to the 15.207 limits.
Deviation from the test standard:
No deviation
Test setup:
The EUT was tested as module
EUT operating conditions:
The EUT was powered by 18 VDC unless specified and set to transmit continuously on the
Middle channel of its operating range.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 52 of 57
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
Test Results:
Figure 31 - Conducted Emissions Plot
All measurements were found to be at least 10dB below the applicable limit.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 53 of 57
Rev
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
APPENDIX A - SAMPLE CALCULATION
Field Strength Calculation
The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier
Gain (if any) from the measured reading. The basic equation with a sample calculation is as follows:
FS = RA + AF – (-CF + AG) + AV
where FS = Field Strength
RA = Receiver Amplitude
AF = Antenna Factor
CF = Cable Attenuation Factor
AG = Amplifier Gain
AV = Averaging Factor (if applicable)
Assume a receiver reading of 55 dBV is obtained. The Antenna Factor of 12 and a Cable Factor of 1.1 is
added. The Amplifier Gain of 20 dB is subtracted, giving a field strength of 48.1 dBV/m.
FS = 55 + 12 – (-1.1 + 20) + 0 = 48.1 dBV/m
The 48.1 dBV/m value can be mathematically converted to its corresponding level in V/m.
Level in V/m = Common Antilogarithm [(48.1 dBV/m)/20]= 254.1 V/m
AV is calculated by the taking the 20*log(T on/100) where Ton is the maximum transmission time in any 100ms
window.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 54 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
EIRP Calculations
In cases where direct antenna port measurement is not possible or would be inaccurate, output power is
measured in EIRP. The maximum field strength is measured at a specified distance and the EIRP is
calculated using the following equation;
EIRP (Watts) = [Field Strength (V/m) x antenna distance (m)] / 30
Power (watts) = 10^[Power (dBm)/10] / 1000
Voltage (dBµV) = Power (dBm) + 107 (for 50Ω measurement systems)
Field Strength (V/m) = 10^[Field Strength (dBµV/m) / 20] / 10^6
Gain = 1 (numeric gain for isotropic radiator)
Conversion from 3m field strength to EIRP (d=3):
EIRP = [FS(V/m) x d^2]/30 = FS [0.3]
for d = 3
EIRP(dBm) = FS(dBµV/m) – 10(log 10^9)+ 10log[0.3] = FS(dBµV/m) - 95.23
10log( 10^9) is the conversion from micro to milli
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 55 of 57
Report Number: 20171020-21-01
Rev
Prepared for: Hunter Douglas
APPENDIX B – MEASUREMENT UNCERTAINTY
Where relevant, the following measurement uncertainty levels have been for tests performed in this test
report:
Test
Frequency Range
Uncertainty Value (dB)
Radiated Emissions, 3m
30MHz - 1GHz
3.82
Radiated Emissions, 3m
1GHz - 18GHz
4.44
30MHz – 18GHz
±3.30 dB
Emissions limits, conducted
Expanded uncertainty values are calculated to a confidence level of 95%.
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 56 of 57
Report Number: 20171020-21-01
Prepared for: Hunter Douglas
REPORT END
The Nebraska Center for Excellence in Electronics
4740 Discovery Drive
Lincoln, NE 68521
Page 57 of 57
Rev
Download: STK Motor Control Test Report R20171020-21-01 Hunter Douglas Window Fashions
Mirror Download [FCC.gov]STK Motor Control Test Report R20171020-21-01 Hunter Douglas Window Fashions
Document ID3705328
Application IDWW/XjDna1EpOWer3v01dUA==
Document DescriptionTest Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize168.31kB (2103872 bits)
Date Submitted2018-01-08 00:00:00
Date Available2018-01-08 00:00:00
Creation Date2017-11-22 17:30:49
Producing SoftwareMicrosoft® Word 2010
Document Lastmod2017-11-22 17:30:49
Document TitleR20171020-21-01
Document CreatorMicrosoft® Word 2010
Document Author: NJohnson

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Page Count                      : 57
Language                        : en-US
Tagged PDF                      : Yes
Title                           : R20171020-21-01
Author                          : NJohnson
Creator                         : Microsoft® Word 2010
Create Date                     : 2017:11:22 17:30:49-06:00
Modify Date                     : 2017:11:22 17:30:49-06:00
Producer                        : Microsoft® Word 2010
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2018
