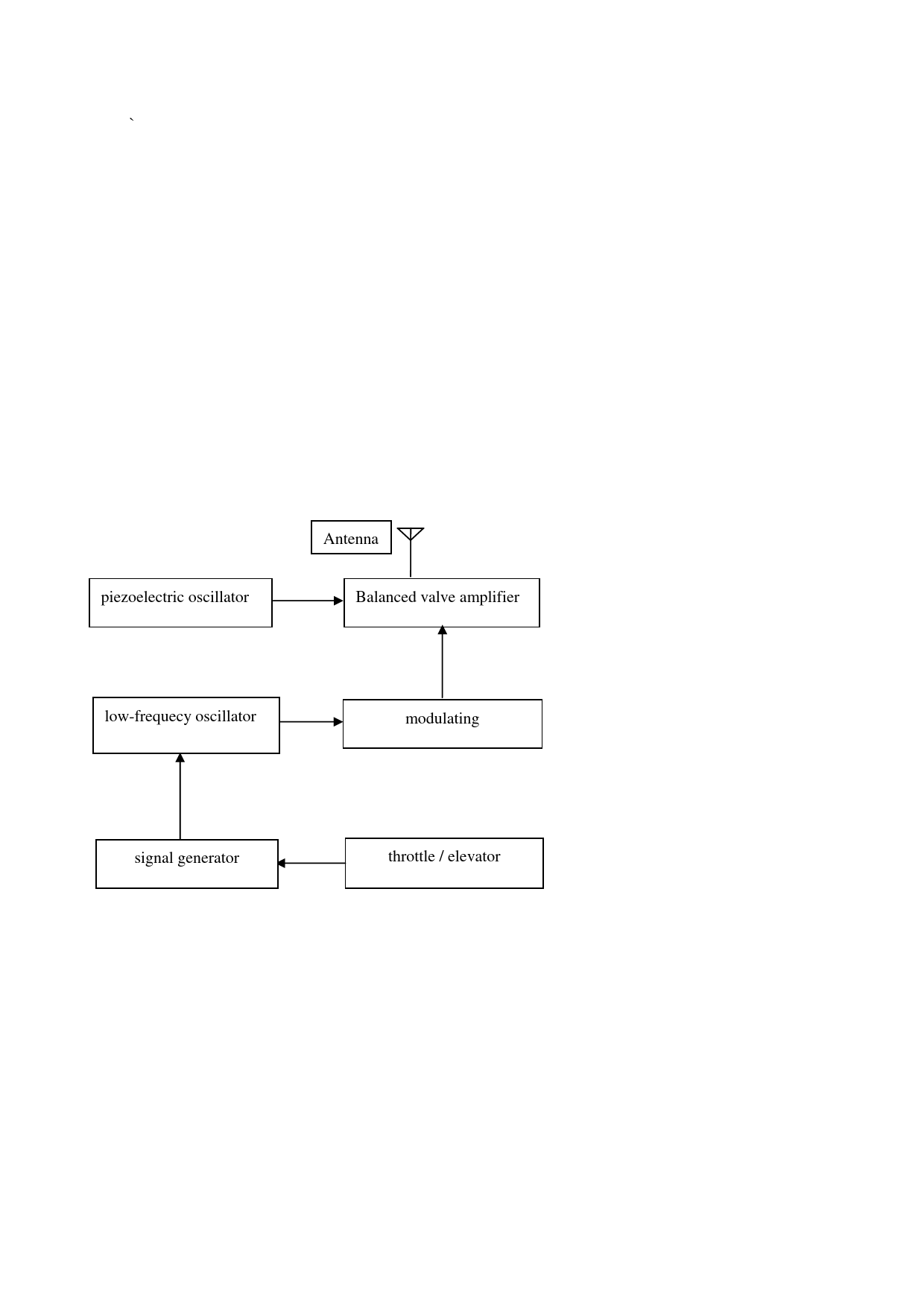

ST0601A Model Plane Block Diagram - FCC ID UZ6-ST0601A

FCC ID UZ6-ST0601A

Blk Diagram

Model Plane

by Jiaxing Shengteng R/C Model Plane Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDUZ6-ST0601A
Document ID758808
Document TypeBlock Diagram
DescriptionBlk Diagram
Document TitleBlock Diagram
ApplicantJiaxing Shengteng R/C Model Plane Co., Ltd.
Equipment ClassModel Plane
Product CodeST0601A
Application ID2W8YO0cy03y709LYEzV46g==
Application PurposeOriginal Equipment
Application Date2007-02-14
Frequency Range72.21 MHz
FRN0016065260
Test FirmSGS-CSTC Standards Technical Services Co.,Ltd.
Certified ByJennifer Sanchez TCB Administrator
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-02-13
Available2007-02-14
Created2007-02-05
Modified2007-02-05
Pages1
File TypeAdobe Acrobat PDF
File Size6303
File SHA-2568addb10f4db87c2ee987bae8e31b10d78ce8a0864bb1edfc33c19f9cc93b7d47
PDF Metadata AuthorParker_Liu
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerGPL Ghostscript 8.15
FCC.gov SourcesFCC.gov 758808
