FCC ID UZ7AP7532
Birch External (3x3 MIMO)
by Zebra Technologies Corporation
Grantee Code: UZ7 Product Code: AP7532
Latest application date: 2016-08-08
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2016-08-08 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-08-08 |
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2015-10-30 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2015-10-30 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2015-01-08 |
| 5180-5240 MHz | Original Equipment | 2014-07-16 |
| 2412-2462 MHz | Original Equipment | 2014-07-16 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-10-30 | PDF 708.6 KB |
| User Manual | Users Manual | 2014-07-16 | PDF 1.3 MB |

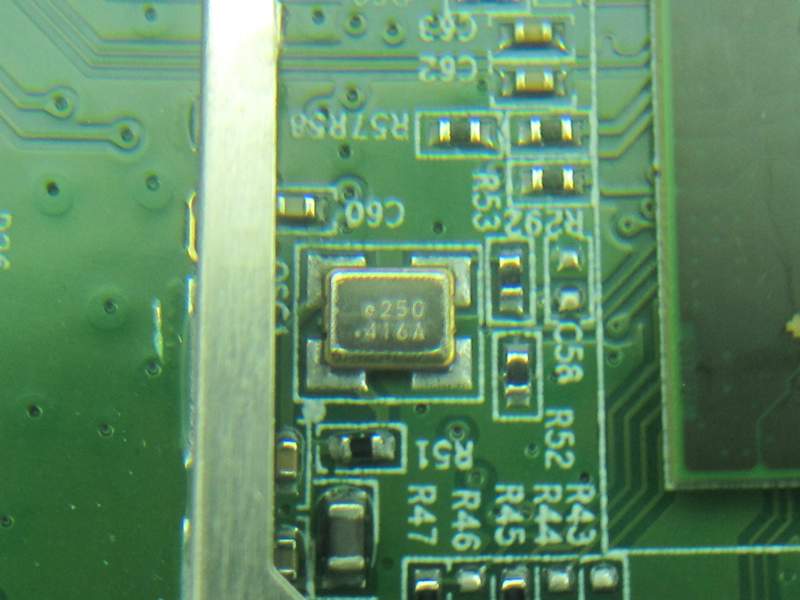

| Internal Photos | Internal Photos | 2015-10-30 | PDF 2 MB |
| Internal Photos | Internal Photos | 2014-07-16 | PDF 1.9 MB |
| External Photos | External Photos | 2015-10-30 | PDF 1.2 MB |
| External Photos | External Photos | 2014-07-16 | PDF 455.2 KB |
| External Photos Antenna | External Photos | 2014-07-16 | PDF 608 KB |
| Label Info | ID Label/Location Info | 2015-10-30 | PDF 235 KB |
| Label Info | ID Label/Location Info | 2014-07-16 | PDF 103.3 KB |
| Tst Photos | Test Setup Photos | 2016-08-08 | PDF 3 MB |
| Test Setup Photos | Test Setup Photos | 2015-10-30 | PDF 348 KB |
| Test Setup Photos | Test Setup Photos | 2015-10-30 | PDF 347.1 KB |
| Test Setup Photos DFS | Test Setup Photos | 2015-01-08 | PDF 37.1 KB |
| Test Setup Photos RF | Test Setup Photos | 2015-01-08 | PDF 456.1 KB |
| Test Setup Photos Slave | Test Setup Photos | 2015-01-08 | PDF 124.7 KB |
| Test Setup Photos | Test Setup Photos | 2014-07-16 | PDF 381.3 KB |
| Test Setup Photos | Test Setup Photos | 2014-07-16 | PDF 385.6 KB |
| Tst Rep | Test Report | 2016-08-08 | PDF 264 KB |
| Appendix C Test Report | Test Report | 2015-10-30 | PDF 160.9 KB |
| Radiated Emission Co-location Report | Test Report | 2015-10-30 | PDF 113.4 KB |
| Test Report DTS | Test Report | 2015-10-30 | PDF 5.4 MB |
| Test Report NII Pt. 1 | Test Report | 2015-10-30 | PDF 4.6 MB |
| Test Report NII Pt. 2 | Test Report | 2015-10-30 | PDF 4.3 MB |
| Test Report NII Pt. 3 | Test Report | 2015-10-30 | PDF 3.6 MB |
| Test Report NII Pt. 4 | Test Report | 2015-10-30 | PDF 4.4 MB |
| Test Report NII Pt. 5 | Test Report | 2015-10-30 | PDF 5.6 MB |
| Test Report NII Pt. 6 | Test Report | 2015-10-30 | PDF 2.9 MB |
| Test Report 1 | Test Report | 2015-01-08 | PDF 4.2 MB |
| Test Report 2 | Test Report | 2015-01-08 | PDF 5.6 MB |
| Test Report Co-location | Test Report | 2015-01-08 | PDF 116 KB |
| Test Report Master Metadata only | Test Report | 2015-01-08 | PDF 1.5 MB |
| Test Report Master Rev | Test Report | 2015-01-08 | PDF 1.5 MB |
| Test Report Slave | Test Report | 2015-01-08 | PDF 3.9 MB |
| Test Report | Test Report | 2014-07-16 | PDF 4.8 MB |
| Test Report 1 | Test Report | 2014-07-16 | PDF 3.1 MB |
| Test Report 2 | Test Report | 2014-07-16 | PDF 5 MB |
| Test Report RF Metadata only | RF Exposure Info | 2014-07-16 | PDF 4.8 MB |
| Cvr Ltr | Cover Letter(s) | 2016-08-08 | PDF 28.7 KB |
| Cvr Ltr 2 | Cover Letter(s) | 2016-08-08 | PDF 90.1 KB |
| Cover Letter | Cover Letter(s) | 2015-10-30 | PDF 88.5 KB |
| Confidential Letter | Cover Letter(s) | 2015-01-08 | PDF 61 KB |
| Expidited Review Letter | Cover Letter(s) | 2015-01-08 | PDF 85.1 KB |
| Confidential Letter | Cover Letter(s) | 2014-07-16 | PDF 78.4 KB |
| RF Exposure | RF Exposure Info | 2015-10-30 | PDF 206.1 KB |
| RF Exposure Info | RF Exposure Info | 2015-10-30 | PDF 206.1 KB |
| Human Exposure | RF Exposure Info | 2015-01-08 | PDF 366.6 KB |
| Human Exposure | RF Exposure Info | 2014-07-16 | PDF 116.4 KB |
| Radiated Emissions Co-location Report | RF Exposure Info | 2014-07-16 | PDF 114.8 KB |
| Block diagram Metadata only | Block Diagram | PDF 185.8 KB | |
| Schematics Metadata only | Schematics | PDF 471.7 KB | |
| Applicant Clarifications Metadata only | Operational Description | PDF 84.8 KB | |
| Applicant KDB Metadata only | Operational Description | PDF 14.9 KB | |
| GPS Security Metadata only | Operational Description | PDF 18.6 KB | |
| Op Desc Addendum Metadata only | Operational Description | PDF 80.1 KB | |
| Operation during testing Metadata only | Operational Description | PDF 18.6 KB | |
| Operational Description Metadata only | Operational Description | PDF 502.9 KB | |
| Operational Description - Theory of Operation Metadata only | Operational Description | PDF 53.1 KB | |
| Operational Description Antenna Specification ml-2452-pna5-01r Metadata only | Operational Description | PDF 106.9 KB | |
| Operational Description Antenna Specification ml-2452-pna5-01r additional info Metadata only | Operational Description | PDF 104.8 KB | |
| Operational Description Antenna Specification ml-2452-pnl9m3-n36 Metadata only | Operational Description | PDF 347.4 KB | |
| Operational Description Antenna Specification ml-2452-pnl9m3-n36_additional-info Metadata only | Operational Description | PDF 99.9 KB | |
| Operational Description Antenna Specification ml-2452-pta3m3-036 Metadata only | Operational Description | PDF 257.3 KB | |
| Operational Description Antenna Specification ml-2452-vmm5m3-n72 Metadata only | Operational Description | PDF 375.5 KB | |
| Operational Description Antenna Specification ml-2452-vmm5m3-n72_additional-info Metadata only | Operational Description | PDF 230.3 KB | |
| Operational Description Software Metadata only | Operational Description | PDF 79.9 KB | |
| Operational Description Transmit Control Metadata only | Operational Description | PDF 310.4 KB |
Application Information
| Application ID | aTqpA7RmgOm0bg/RiMEbwg== |
|---|---|
| Final Action Date | 2016-08-08 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0015642663 |
| Model | AP7532 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Birch External (3x3 MIMO) |
| Responsible Party | Qianlin Zhou, Regulatory Specialist, Larry.Zhou@zebra.com  , 346-260-3543 |
| Agent | Mark Mark Mark, National Technical Systems - Silicon Valley, svdoc@nts.com  , 5105783500 |
| Technical Contact | Mark Hill, National Technical Systems - Silicon Valley, svdoc@nts.com , 5105783500 |
| Test Firm | David Bare, National Technical Systems, david.bare@nts.com , 510-578-3500 |
| TCB Email | svtcb@nts.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Short-Term Confidentiality Date | 09/22/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| aTqpA7RmgOm0bg/RiMEbwg== | 2016-08-08 | Class II permissive change or modification of presently authorized equipment |
| 7kqfD+M6g60kYmeQ3wOQDw== | 2016-08-08 | Class II permissive change or modification of presently authorized equipment |
| xcJA3Os7ylltS48I2VFIig== | 2015-10-30 | Class II permissive change or modification of presently authorized equipment |
| Ha/vpGzHC7GKRq5SEKemOg== | 2015-10-30 | Class II permissive change or modification of presently authorized equipment |
| KSfIhccQB+PY+1XOIfPAKA== | 2015-01-08 | Class II permissive change or modification of presently authorized equipment |
| gJnJkAF7zrtOavYmWOB/qw== | 2014-07-16 | Original Equipment |
| CxfWJbnNa2lEW/1dji2zuQ== | 2014-07-16 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 2412-2462 MHz | 0.3040000 | 15C | CC, MO |
| 2412-2462 MHz | 0.304 | 15C | CC, MO |
| 2422-2452 MHz | 0.081 | 15C | CC, MO |
| 5180-5240 MHz | 0.288 | 15E | CC, MO |
| 5180-5240 MHz | 0.288 | 15E | 38, CC, MO |
| 5190-5230 MHz | 0.248 | 15E | 38, CC, MO |
| 5210 MHz | 0.063 | 15E | 38, CC, MO |
| 5260-5320 MHz | 0.23 | 15E | CC, MO |
| 5260-5320 MHz | 0.23 | 15E | 38, CC, MO |
| 5260-5320 MHz | 0.23 | 15E | 38, CC, MO, ND |
| 5500-5720 MHz | 0.244 | 15E | CC, MO |
| 5500-5720 MHz | 0.244 | 15E | 38, CC, MO |
| 5500-5720 MHz | 0.244 | 15E | 38, CC, MO, ND |
| 5745-5825 MHz | 0.282 | 15E | CC, MO |
| 5745-5825 MHz | 0.282 | 15E | 38, CC, MO |
| 5755-5795 MHz | 0.107 | 15E | 38, CC, MO |
| 5775 MHz | 0.075 | 15E | 38, CC, MO |
Grants
TCB Grant - Application xcJA3Os7ylltS48I2VFIig==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 10/30/2015 Application Dated: 10/20/2015 |
| Zebra Technologies Corporation |
| 1 Zebra Plaza |
| Holtsville, NY 11742 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | Birch External (3x3 MIMO) |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.304 |
| Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application xcJA3Os7ylltS48I2VFIig==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Zebra Technologies Corporation 1 Zebra Plaza Holtsville, NY 11742 United States |
Date of Grant: 10/30/2015 Application Dated: 10/20/2015 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | Birch External (3x3 MIMO) |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.304 |
| Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 01/08/2015 Application Dated: 12/02/2014 |
| Zebra Technologies Corporation |
| 1 Zebra Plaza |
| Holtsville, NY 11742 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Birch External (3x3 MIMO) |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.288 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.23 | ||
| 38 CC MO ND | 15E | 5500.0 - 5720.0 | 0.244 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.282 |
| Power listed is maximum combined output power conducted. Professional installation is required. This device is an indoor access point restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application KSfIhccQB+PY+1XOIfPAKA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Zebra Technologies Corporation 1 Zebra Plaza Holtsville, NY 11742 United States |
Date of Grant: 01/08/2015 Application Dated: 12/02/2014 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Birch External (3x3 MIMO) |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.288 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.23 | ||
| 38 CC MO ND | 15E | 5500.0 - 5720.0 | 0.244 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.282 |
| Power listed is maximum combined output power conducted. Professional installation is required. This device is an indoor access point restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 10/30/2015 Application Dated: 10/20/2015 |
| Zebra Technologies Corporation |
| 1 Zebra Plaza |
| Holtsville, NY 11742 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Birch External (3x3 MIMO) |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.288 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.23 | ||
| 38 CC MO | 15E | 5500.0 - 5720.0 | 0.244 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.282 |
| Power listed is maximum combined output power conducted. Professional installation is required. This device is restricted to indoor use for select antennas as described in this filing. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application Ha/vpGzHC7GKRq5SEKemOg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Zebra Technologies Corporation 1 Zebra Plaza Holtsville, NY 11742 United States |
Date of Grant: 10/30/2015 Application Dated: 10/20/2015 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Birch External (3x3 MIMO) |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.288 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.23 | ||
| 38 CC MO | 15E | 5500.0 - 5720.0 | 0.244 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.282 |
| Power listed is maximum combined output power conducted. Professional installation is required. This device is restricted to indoor use for select antennas as described in this filing. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 07/16/2014 Application Dated: 07/15/2014 |
| Zebra Technologies Corporation |
| 1 Zebra Plaza |
| Holtsville, NY 11742 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Birch External (3x3 MIMO) |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.288 | ||
| 38 CC MO | 15E | 5190.0 - 5230.0 | 0.248 | ||
| 38 CC MO | 15E | 5210.0 - 5210.0 | 0.063 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.282 | ||
| 38 CC MO | 15E | 5755.0 - 5795.0 | 0.107 | ||
| 38 CC MO | 15E | 5775.0 - 5775.0 | 0.075 |
| Power listed is maximum combined output power conducted. Professional installation is required. This device is an indoor access point restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application gJnJkAF7zrtOavYmWOB/qw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Zebra Technologies Corporation 1 Zebra Plaza Holtsville, NY 11742 United States |
Date of Grant: 07/16/2014 Application Dated: 07/15/2014 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Birch External (3x3 MIMO) |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.288 | ||
| 38 CC MO | 15E | 5190.0 - 5230.0 | 0.248 | ||
| 38 CC MO | 15E | 5210.0 - 5210.0 | 0.063 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.282 | ||
| 38 CC MO | 15E | 5755.0 - 5795.0 | 0.107 | ||
| 38 CC MO | 15E | 5775.0 - 5775.0 | 0.075 |
| Power listed is maximum combined output power conducted. Professional installation is required. This device is an indoor access point restricted to indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 07/16/2014 Application Dated: 07/15/2014 |
| Zebra Technologies Corporation |
| 1 Zebra Plaza |
| Holtsville, NY 11742 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | Birch External (3x3 MIMO) |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.304 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.081 |
| Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application CxfWJbnNa2lEW/1dji2zuQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Zebra Technologies Corporation 1 Zebra Plaza Holtsville, NY 11742 United States |
Date of Grant: 07/16/2014 Application Dated: 07/15/2014 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | Birch External (3x3 MIMO) |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.304 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.081 |
| Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
National Technical Systems 41039 Boyce Road Fremont, CA 94538 |
Date of Grant: 08/08/2016 Application Dated: 07/20/2016 |
| Zebra Technologies Corporation |
| 1 Zebra Plaza |
| Holtsville, NY 11742 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | Birch External (3x3 MIMO) |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.304 |
| Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application aTqpA7RmgOm0bg/RiMEbwg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Zebra Technologies Corporation 1 Zebra Plaza Holtsville, NY 11742 United States |
Date of Grant: 08/08/2016 Application Dated: 07/20/2016 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | Birch External (3x3 MIMO) |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.304 |
| Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
National Technical Systems 41039 Boyce Road Fremont, CA 94538 |
Date of Grant: 08/08/2016 Application Dated: 07/20/2016 |
| Zebra Technologies Corporation |
| 1 Zebra Plaza |
| Holtsville, NY 11742 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Birch External (3x3 MIMO) |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.288 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.23 | ||
| CC MO | 15E | 5500.0 - 5720.0 | 0.244 | ||
| CC MO | 15E | 5745.0 - 5825.0 | 0.282 |
| Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application 7kqfD+M6g60kYmeQ3wOQDw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Zebra Technologies Corporation 1 Zebra Plaza Holtsville, NY 11742 United States |
Date of Grant: 08/08/2016 Application Dated: 07/20/2016 |
| Attention: Qianlin Zhou , Regulatory Specialist |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | UZ7AP7532 |
| Name of Grantee: | Zebra Technologies Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Birch External (3x3 MIMO) |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.288 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.23 | ||
| CC MO | 15E | 5500.0 - 5720.0 | 0.244 | ||
| CC MO | 15E | 5745.0 - 5825.0 | 0.282 |
| Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
