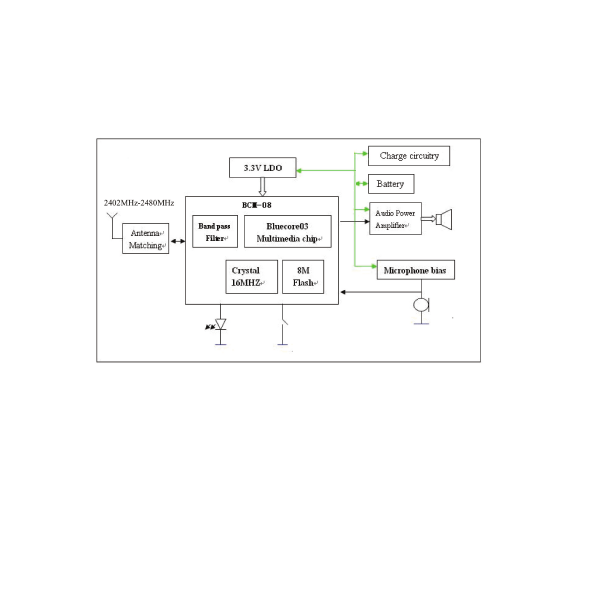

MEDALLIONI Bluetooth Speakerphone Block... - FCC ID V2QMEDALLION-I

FCC ID V2QMEDALLION-I

Block Diagram

Bluetooth Speakerphone

by Omni Laboratories, Inc.

Document preview loads when visible.

Document Details

FCC IDV2QMEDALLION-I
Document ID906842
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantOmni Laboratories, Inc.
Equipment ClassBluetooth Speakerphone
Product CodeMEDALLIONI
Application IDDEyVldFvFIlx8I/gRW04Eg==
Application PurposeOriginal Equipment
Application Date2008-02-26
Frequency Range2402-2480 MHz
FRN0017400888
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByJames Huang
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2008-02-26
Available2008-02-26
Created2008-01-28
Modified2008-02-25
Pages1
File TypeAdobe Acrobat PDF
File Size991637
File SHA-2562e5829be6fb9d9b60f9e2a3d586b64d5d38c3b66225397b5491ce54a40b3afce
PDF Metadata AuthorNone
PDF Metadata CreatorAdobe Photoshop 6.0
PDF Metadata ProducerAdobe Photoshop for Windows
FCC.gov SourcesFCC.gov 906842
