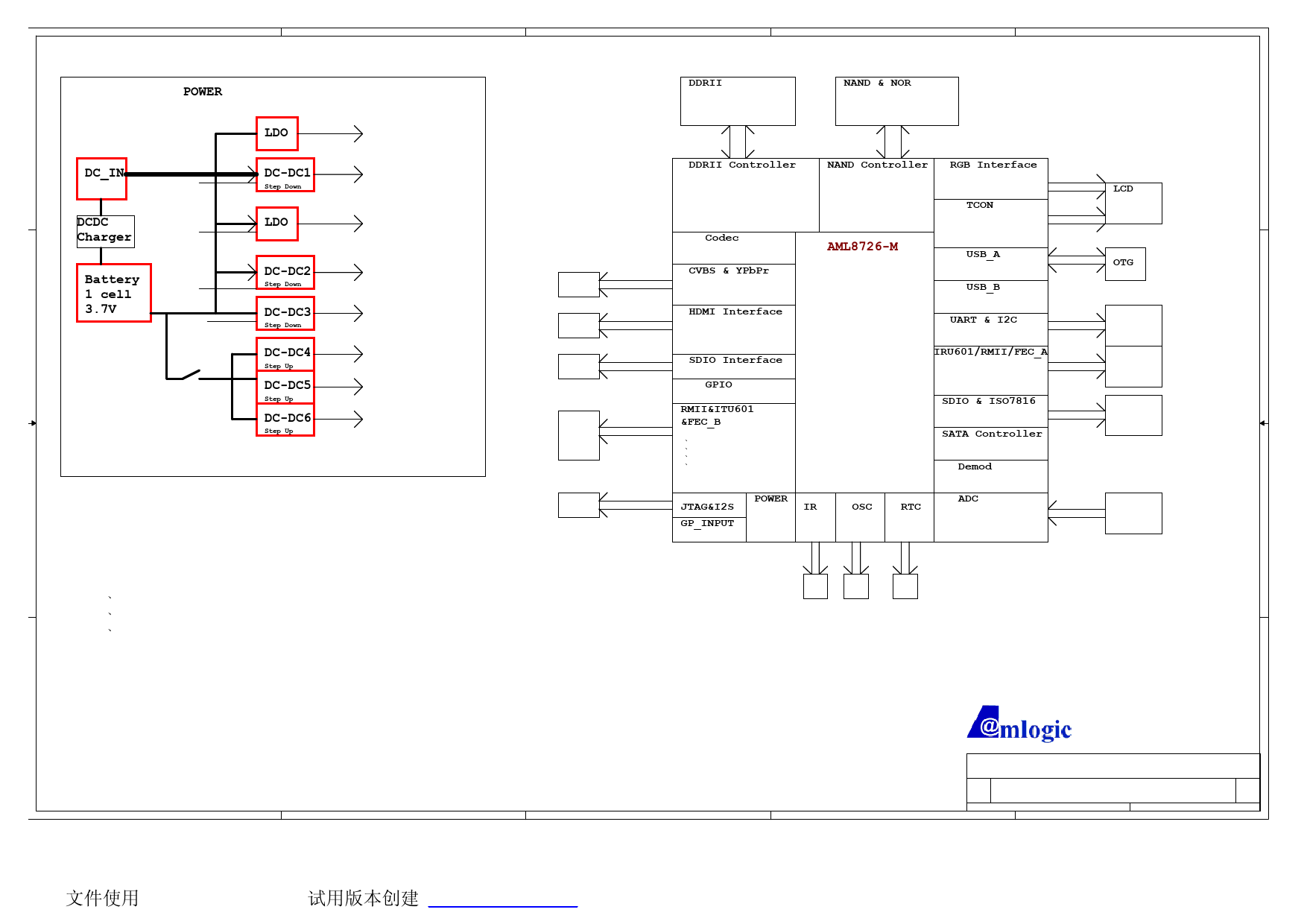

PTT1026 Mobile internet device Block Diagram - FCC ID V37-PTT-1026

FCC ID V37-PTT-1026

Block Diagram

Mobile internet device

by WIN ACCORD LTD.,

Document preview loads when visible.

Document Details

FCC IDV37-PTT-1026
Document ID1509259
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Titlem55-v921-113-0617.opj
ApplicantWIN ACCORD LTD.,
Equipment ClassMobile internet device
Product CodePTT1026
Application IDw6fkgHxfFYu6tuVtTIGmcA==
Application PurposeOriginal Equipment
Application Date2011-07-26
Frequency Range2412-2462 MHz
FRN0017483173
Test FirmEMTEK (DONGGUAN) CO.,LTD
Certified ByMark Koop Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2011-07-26
Available2011-07-26
Created2011-07-22
Modified2011-07-22
Pages2
File TypeAdobe Acrobat PDF
File Size228990
File SHA-256cba43e413c9a0b11bc1ba5a955ba16c09fa545dca645ac375737b7045d27df74
PDF Metadata Authorqinzhao
PDF Metadata CreatorAdobe Acrobat 9.4.5
PDF Metadata ProducerAdobe Acrobat 9.4.5
FCC.gov SourcesFCC.gov 1509259, FCC.gov 1509212
