TS200ZW EU Z-Wave 2-Button Remote Control... - FCC ID V8MTS200ZW

FCC ID V8MTS200ZW

Schematics

EU Z-Wave 2-Button Remote Control

by TRICKLESTAR LTD.

Document preview loads when visible.

Document Details

FCC IDV8MTS200ZW
Document ID1017138
Document TypeSchematics
DescriptionSchematics

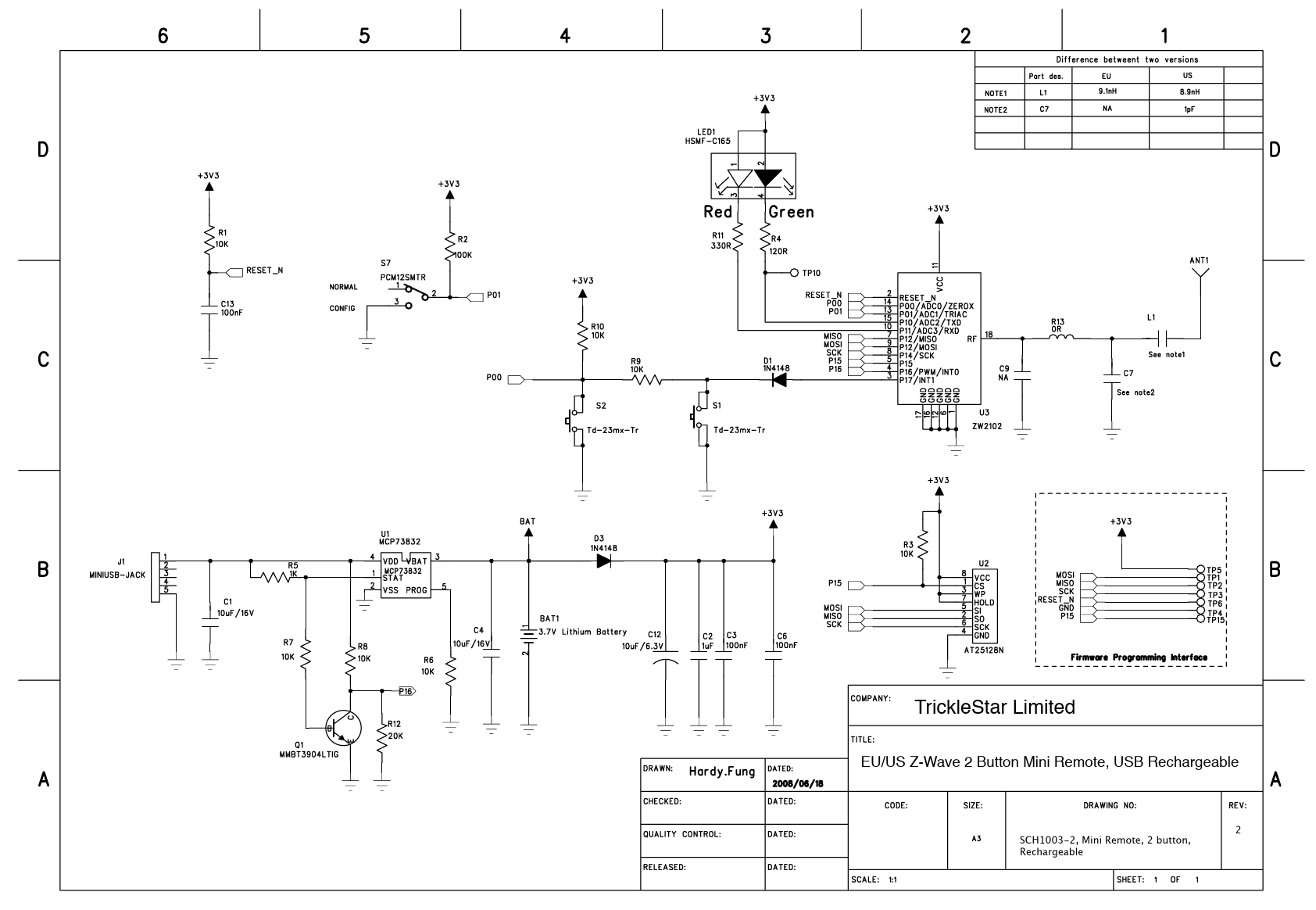

Document TitleMini Remote Schematics.graffle
ApplicantTRICKLESTAR LTD.
Equipment ClassEU Z-Wave 2-Button Remote Control
Product CodeTS200ZW
Application IDwigB7CviE4omup6lFRjWOg==
Application PurposeOriginal Equipment
Application Date2008-10-17
Frequency Range908.4-908.42 MHz
FRN0017678822
Test FirmSpectrum Research
Certified ByThomas Joergensen Founder and Technical Director
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2008-10-17
Available2008-10-17
Created2008-06-05
Modified2008-07-03
Pages1
File TypeAdobe Acrobat PDF
File Size123014
File SHA-2565553a49093ceb991baf7642119ff4a8fa46d4ab7674db30da2a2e52df63e28ca
PDF Metadata AuthorThomas Jorgensen
PDF Metadata CreatorOmniGraffle Professional 4.2.1
PDF Metadata ProducerMac OS X 10.5.2 Quartz PDFContext
FCC.gov SourcesFCC.gov 1017138

Related FCC Exhibits

DocumentTypeAvailableFile
Users ManualUsers Manual2008-10-17PDF 721 KB
Internal PhotosInternal Photos2008-10-17PDF 325.2 KB
External PhotosExternal Photos2008-10-17PDF 200.2 KB
Label InformationID Label/Location Info2008-10-17PDF 94.7 KB
Block DiagramBlock Diagram2008-10-17PDF 49.1 KB
SchematicsSchematics2008-10-17PDF 120.1 KB
Operational DescriptionOperational Description2008-10-17PDF 111.1 KB
Technological SpecificationsOperational Description2008-10-17PDF 25.4 KB
Test Setup PhotosTest Setup Photos2008-10-17PDF 348 KB
Test ReportTest Report2008-10-17PDF 305.1 KB
Power of AttorneyCover Letter(s)2008-10-17PDF 114.6 KB
