FCC ID VBNFRIJ-01
Airscale Base Station RRH
by Nokia Solutions and Networks
Grantee Code: VBN Product Code: FRIJ01
Latest application date: 2020-12-14
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2110-2200 MHz | Class II permissive change or modification of presently authorized equipment | 2020-12-14 |
| 2110-2200 MHz | Original Equipment | 2016-06-10 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| External Photos | External Photos | 2016-06-10 | PDF 1.6 MB |
| Label | ID Label/Location Info | 2016-06-10 | PDF 103.9 KB |

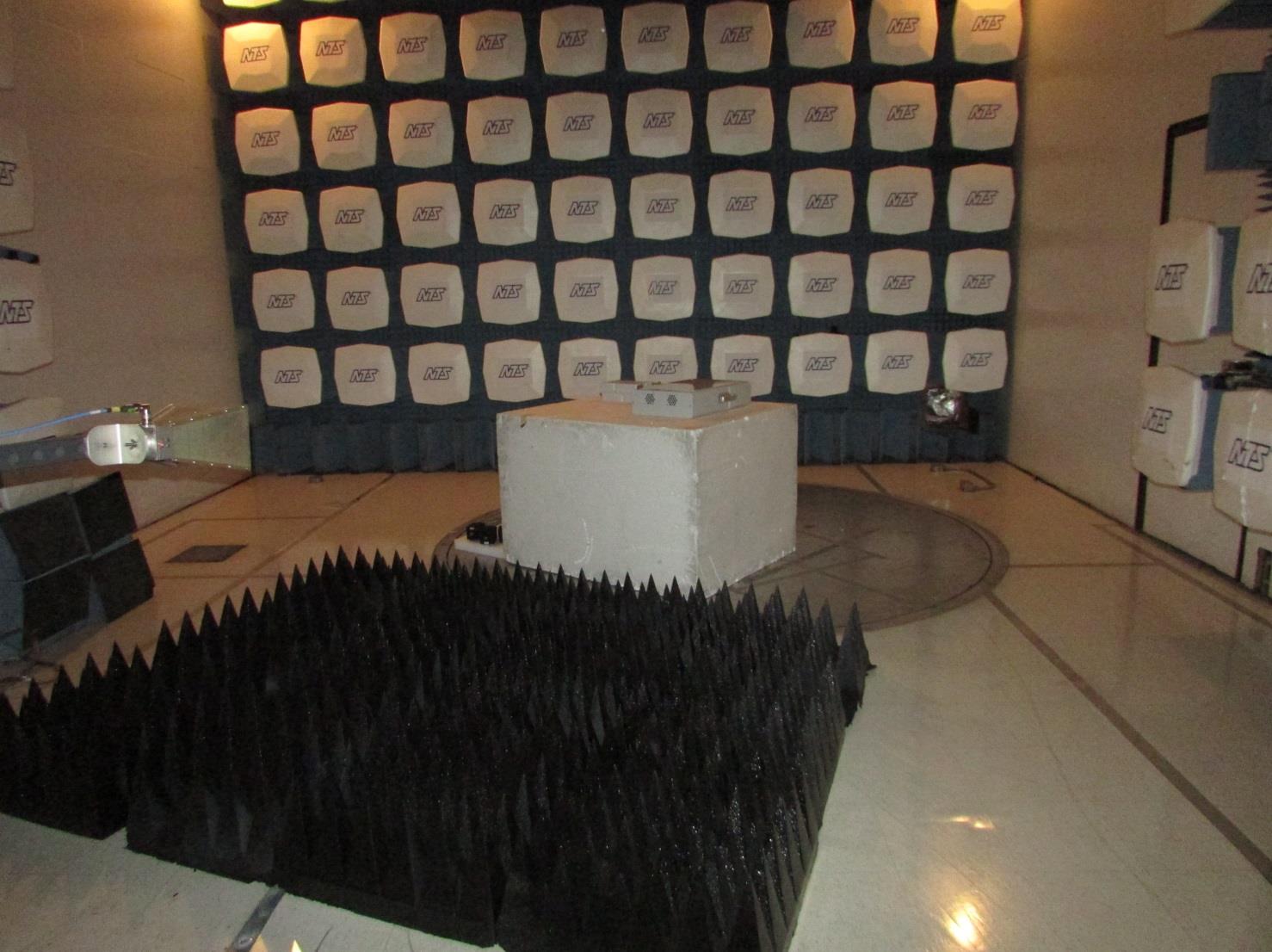

| test setup photos | Test Setup Photos | 2020-12-14 | PDF 1.4 MB |
| Test Set Up Photos | Test Setup Photos | 2016-06-10 | PDF 1.6 MB |
| test report 1 | Test Report | 2020-12-14 | PDF 2.7 MB |
| test report 2 | Test Report | 2020-12-14 | PDF 3.2 MB |
| test report 3 | Test Report | 2020-12-14 | PDF 3.6 MB |
| test report 4 | Test Report | 2020-12-14 | PDF 3.3 MB |
| test report 5 | Test Report | 2020-12-14 | PDF 5.3 MB |
| test report 6 | Test Report | 2020-12-14 | PDF 3.8 MB |
| Test Report 1 | Test Report | 2016-06-10 | PDF 5.9 MB |
| Test Report 2 | Test Report | 2016-06-10 | PDF 5.6 MB |
| Test Report 3 | Test Report | 2016-06-10 | PDF 5.3 MB |
| Test Report 4 | Test Report | 2016-06-10 | PDF 5.8 MB |
| C2PC letter | Cover Letter(s) | 2020-12-14 | PDF 15.7 KB |
| agent letter | Cover Letter(s) | 2020-12-14 | PDF 181.2 KB |
| documents letter | Cover Letter(s) | 2020-12-14 | PDF 79.5 KB |
| Authority to Act as Agent | Cover Letter(s) | 2016-06-10 | PDF 12.7 KB |
| Confidentiality | Cover Letter(s) | 2016-06-10 | PDF 82.6 KB |
| NDA | Cover Letter(s) | 2016-06-10 | PDF 17.9 KB |
| Non-Routine Confidentiality | Cover Letter(s) | 2016-06-10 | PDF 148.5 KB |
| RF Safety | RF Exposure Info | 2016-06-10 | PDF 49.1 KB |
| User Manual Metadata only | Users Manual | PDF 604.6 KB | |
| Internal Photos Metadata only | Internal Photos | PDF 3.5 MB | |
| Block Diagram Metadata only | Block Diagram | PDF 190.8 KB | |
| Schematics/Parts List Metadata only | Schematics | PDF 2.6 MB | |
| Operating Description Metadata only | Operational Description | PDF 1.5 MB | |
| Tune Up Procedures Metadata only | Parts List/Tune Up Info | PDF 1.6 MB |
Application Information
| Application ID | hKaNceu1OiIxUlsEsv4z9w== |
|---|---|
| Final Action Date | 2020-12-14 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0016412652 |
| Model | FRIJ-01 |
| Frequency Range | 2110-2200 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Airscale Base Station RRH |
| Responsible Party | Steve Mitchell, steve.mitchell@nokia.com  , 972-936-7500 |
| Agent | Geremy Geremy Geremy, Nemko USA, Inc., geremy.bradshaw@nemko.com  , 800-614-3458 |
| Test Firm | Renee Walker, Element Materials Technology Dallas, renee.walker@element.com  , 503-844-4066 |
| TCB Email | Vina.Kerai@nemko.com |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | RF output power is conducted per antenna port. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| hKaNceu1OiIxUlsEsv4z9w== | 2020-12-14 | Class II permissive change or modification of presently authorized equipment |
| 2seBXPveGqKMkuiNdlIdbg== | 2016-06-10 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 2110-2200 MHz | 40 | 0.015ppm | 14M6F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 19M4F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 19M5F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 19M6F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 4M90G7W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 9M91G7W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 14M9G7W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 20M1G7W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 4M60F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 4M87F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 4M89F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 9M71F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 9M72F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 9M74F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 9M77F9W | 27 | MO |
| 2110-2200 MHz | 40 | 0.015ppm | 14M5F9W | 27 | MO |
Grants
TCB Grant - Application hKaNceu1OiIxUlsEsv4z9w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 12/14/2020 Application Dated: 12/14/2020 |
| Nokia Solutions and Networks |
| 3201 Olympus Blvd |
| Dallas, TX 75019 |
| Attention: Steve Mitchell |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | VBNFRIJ-01 |
| Name of Grantee: | Nokia Solutions and Networks |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Airscale Base Station RRH |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 4M59F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 4M60F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 4M87F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 4M89F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 9M71F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 9M72F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 9M74F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 9M77F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 14M5F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 14M6F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 19M4F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 19M5F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 19M6F9W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 4M90G7W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 9M91G7W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 14M9G7W |
| MO | 27 | 2110.0 - 2200.0 | 40.0 | 0.015 PM | 20M1G7W |
| RF output power is conducted per antenna port. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
