Document Details
| FCC ID | VDSCB2007 |
|---|---|
| Document ID | 830823 |
| Document Type | Block Diagram |

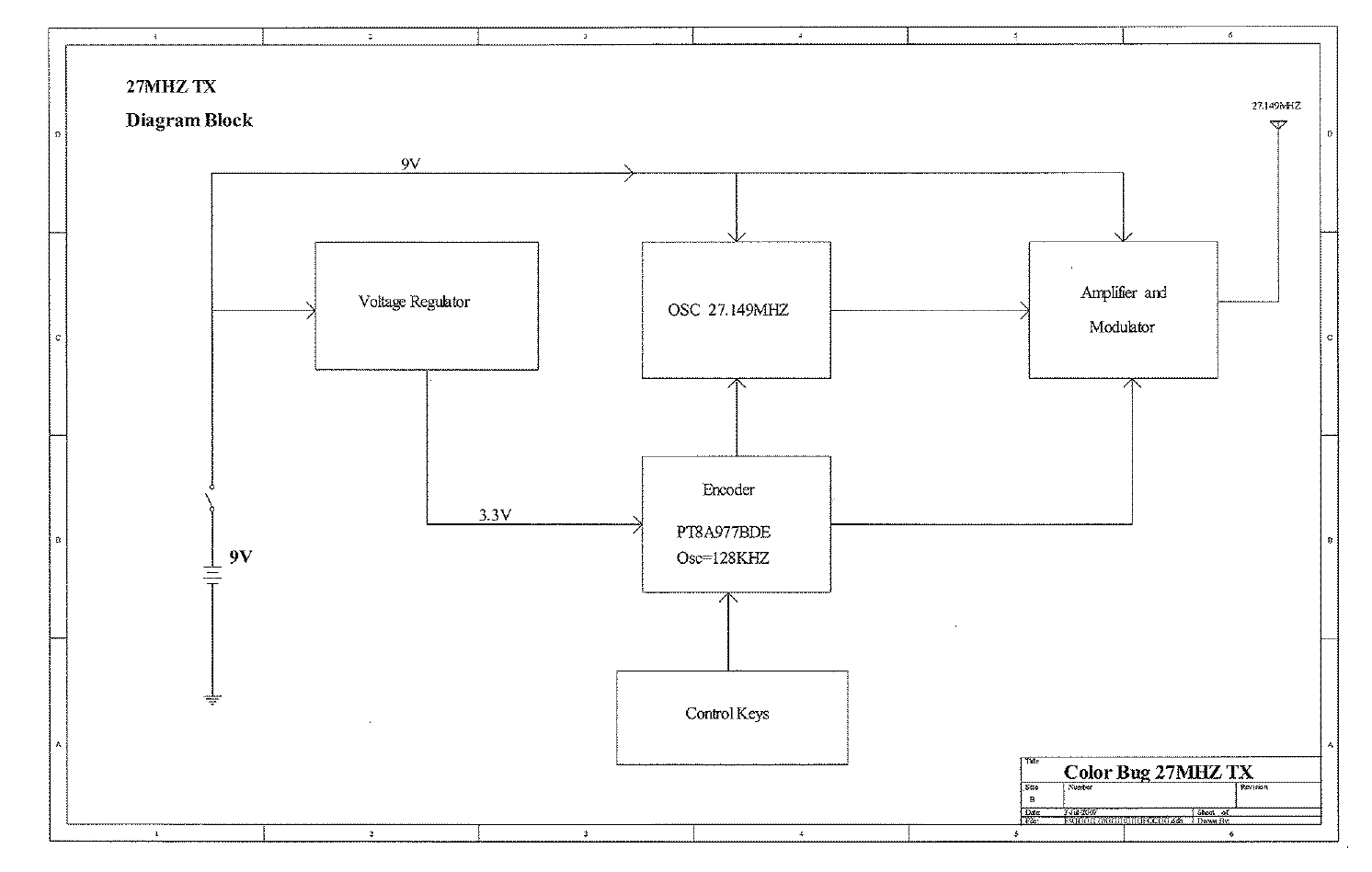

| Description | Block Diagram |
| Document Title | None |
| Applicant | RC ART |
| Equipment Class | RC Toy |
| Product Code | CB2007 |
| Application ID | sRbhT1F2v37keksZBBz70Q== |
| Application Purpose | Original Equipment |
| Application Date | 2007-08-17 |
| Frequency Range | 27.149 MHz |
| FRN | 0016571556 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Anthony Chan Assistant Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2007-08-17 |
| Available | 2007-08-17 |
| Created | 2007-07-13 |
| Modified | 2007-07-13 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 45332 |
| File SHA-256 | aa53a1c2d44d1f0c20c28dd8e285fb470a21e8bfde9bfdea340f08271b61d24f |
| PDF Metadata Author | None |
| PDF Metadata Creator | None |
| PDF Metadata Producer | None |
| FCC.gov Sources | FCC.gov 830823 |
