XMAXBSN25 xMax VOIP Base Transceiver... - FCC ID VEYXMAXBSN25
FCC ID VEYXMAXBSN25

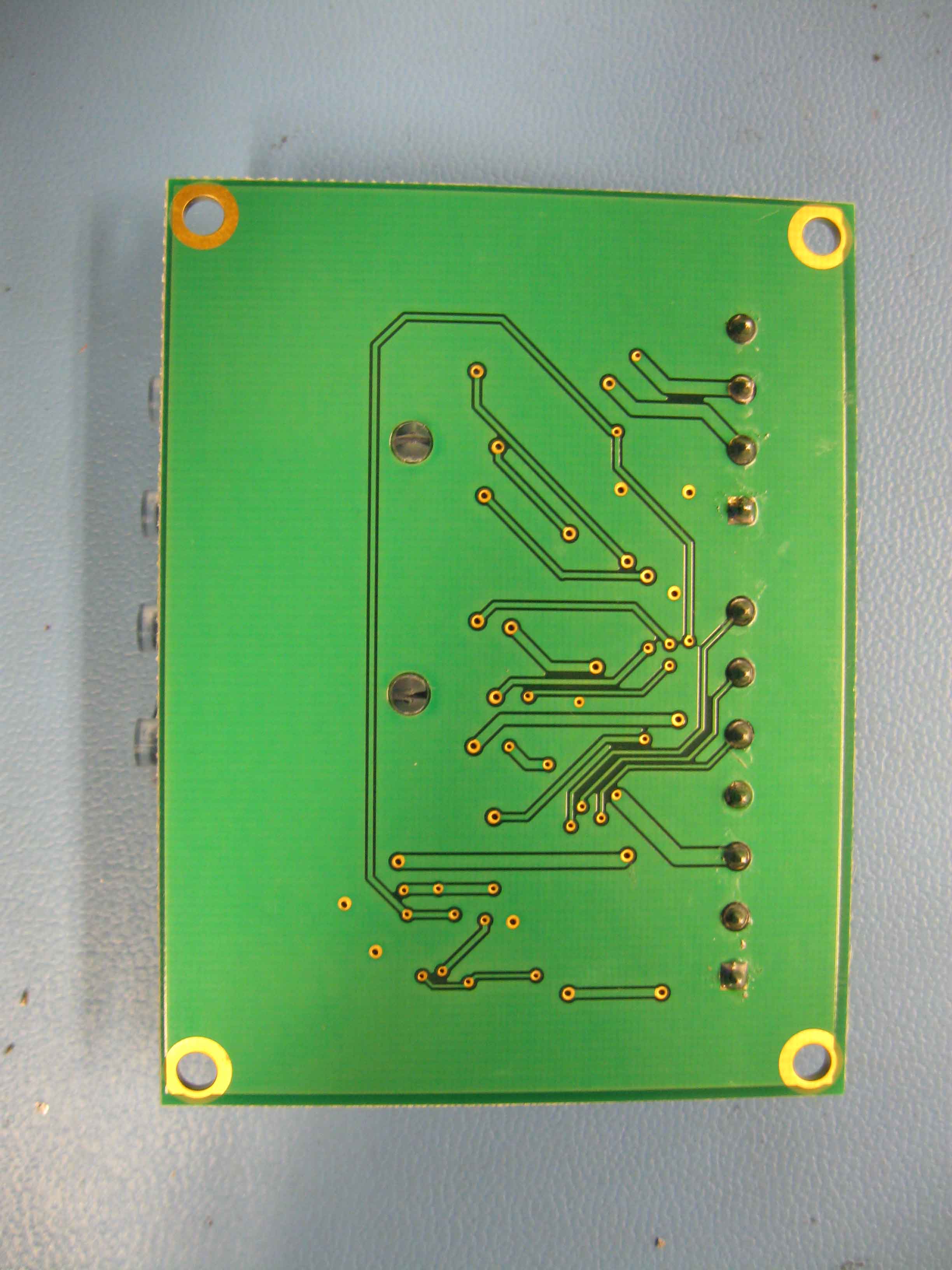

LED Board Back
xMax VOIP Base Transceiver Station
Document Details
| FCC ID | VEYXMAXBSN25 |
|---|---|
| Document ID | 1071243 |
| Document Type | Internal Photos |
| Description | LED Board Back |
| Document Title | LED Board Back |
| Applicant | xG Technology, Inc. |
| Equipment Class | xMax VOIP Base Transceiver Station |
| Product Code | XMAXBSN25 |
| Application ID | r+l6sMb5KU35OH6aEOgxiw== |
| Application Purpose | Original Equipment |
| Application Date | 2009-03-31 |
| Frequency Range | 902.76-927.3 MHz |
| FRN | 0016616674 |
| Test Firm | ADVANCED COMPLIANCE SOLUTIONS, INC. |
| Certified By | Joseph Bobier President and Chief Technology Officer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2009-02-20 |
| Available | 2009-03-31 |
| Created | 2009-03-31 |
| Modified | 2009-03-31 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 215336 |
| File SHA-256 | f3da097e8f2ec3f2e9b847da3e29e02b73958db0ad5ef77995f411e42f1bbdcb |
| PDF Metadata Author | FCC |
| FCC.gov Sources | FCC.gov 1071243 |
