FCC ID VG5WIN5X58
WiMAX subscriber unit transceiver
by Siemens Canada Limited
Grantee Code: VG5 Product Code: WIN5X58
Latest application date: 2016-07-19
Device Images
FCC ID Device Details
| FCC ID | VG5WIN5X58 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | VG5 |
| Product Code | WIN5X58 |
| Applicant Business | Siemens Canada Limited 🇨🇦 |
| Related Domains |  siemens.com  hermonlabs.com |
| Equipment Class | WiMAX subscriber unit transceiver |
| Test Firm | Hermon Laboratories Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5732.5-5846.5 MHz | Original Equipment | 2016-07-19 |
| 5728-5846.5 MHz | Original Equipment | 2012-11-05 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-07-19 | PDF 942.2 KB |
| user manual | Users Manual | 2012-11-05 | PDF 3 MB |
| Internal Photos | Internal Photos | 2016-07-19 | PDF 1.3 MB |
| Int. photos | Internal Photos | 2012-11-05 | PDF 1.3 MB |
| External Photos | External Photos | 2016-07-19 | PDF 151.3 KB |
| Ext. photos | External Photos | 2012-11-05 | PDF 152.1 KB |
| ID Label/Location Info | ID Label/Location Info | 2016-07-19 | PDF 218.1 KB |
| label | ID Label/Location Info | 2012-11-05 | PDF 149.3 KB |

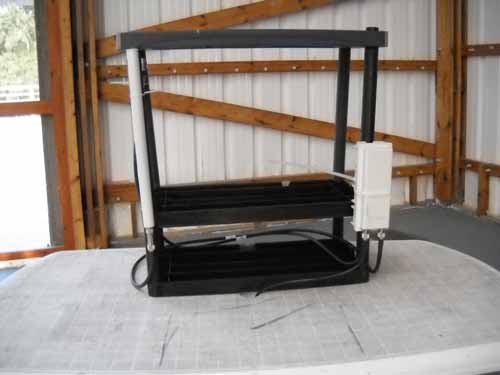

| Test Setup Photos_23641_28314_SU | Test Setup Photos | 2016-07-19 | PDF 337.6 KB |
| Test Setup Photos_28314_SU Metadata only | Test Setup Photos | 2016-07-19 | PDF 33 KB |
| Test setup photos | Test Setup Photos | 2012-11-05 | PDF 337.3 KB |
| Test Report | Test Report | 2016-07-19 | PDF 594.4 KB |
| Test report | Test Report | 2012-11-05 | PDF 1.6 MB |
| Authorization_letter | Cover Letter(s) | 2016-07-19 | PDF 35.2 KB |
| Cover_letter | Cover Letter(s) | 2016-07-19 | PDF 19.9 KB |
| Declaration_of_authorization | Cover Letter(s) | 2016-07-19 | PDF 20 KB |
| Letter_Class_II_Permissive_Change | Cover Letter(s) | 2016-07-19 | PDF 20.3 KB |
| Request_for_confidentiality | Cover Letter(s) | 2016-07-19 | PDF 18.7 KB |
| Auth letter | Cover Letter(s) | 2012-11-05 | PDF 38.2 KB |
| Conf. letter | Cover Letter(s) | 2012-11-05 | PDF 18.1 KB |
| Cover. decl | Cover Letter(s) | 2012-11-05 | PDF 40.4 KB |
| DoA | Cover Letter(s) | 2012-11-05 | PDF 22.6 KB |
| MPE | RF Exposure Info | 2016-07-19 | PDF 15.8 KB |
| RF Evaluation | RF Exposure Info | 2012-11-05 | PDF 15.8 KB |
| Block_diagram Metadata only | Block Diagram | PDF 68.9 KB | |
| Schematics_RF Metadata only | Schematics | PDF 341.9 KB | |
| Schematics_digital Metadata only | Schematics | PDF 221.3 KB | |
| Schematics_mobile_unit_input_filter Metadata only | Schematics | PDF 22.3 KB | |
| Schematics_power_supply Metadata only | Schematics | PDF 77.7 KB | |
| Operational_description Metadata only | Operational Description | PDF 80.3 KB | |
| SW_security_description Metadata only | Operational Description | PDF 19.3 KB | |
| Parts_list_digital Metadata only | Parts List/Tune Up Info | PDF 68.9 KB | |
| Parts_list_mobile_unit Metadata only | Parts List/Tune Up Info | PDF 66.7 KB | |
| Parts_list_power_supply Metadata only | Parts List/Tune Up Info | PDF 66.3 KB |
Application Information
| Application ID | NFiWdM7loQzhYb12h6rEfQ== |
|---|---|
| Final Action Date | 2016-07-19 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0016678849 |
| Model | WIN5X58 |
| Frequency Range | 5732.5-5846.5 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WiMAX subscriber unit transceiver |
| Responsible Party | Norman Lew, Senior Certification Engineer, norman.lew@siemens.com , 905-482-7217 |
| Technical Contact | Michael Nikishin, Hermon Laboratories Ltd., nikishin@hermonlabs.com , 97246268840 |
| Non-Technical Contact | Michael Nikishin, Hermon Laboratories Ltd., nikishin@hermonlabs.com , 97246268840 |
| Test Firm | Alexander Usoskin, Hermon Laboratories Ltd., mail@hermonlabs.com , 972-4628-8001 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II Permissive Change : This change is only to accommodate with the new U-NII rules. Power output listed is maximum conducted. Professional installation is required. For fixed operation the antenna(s) used for this transmitter must be fixedmounted on outdoor permanent structures with a separation distance of at least 56 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except as described in this filing. For mobile operation the antenna (s) used for this transmitter must be installed in a car(vehicular enviroment) with a separation distance from all persons of at least 20cm when using a gain antenna of 9.5 dBi and 56 cm in all other cases and must not be co-located or operating in conjunction with any other antenna or transmitter except as described in this filing. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance and power limitations. |
